Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS2E4KSWITCH SNAP ACTION SPDT 10A 120V |
4,767 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Plunger | Chassis Mount | Screw Terminal | - | Stainless Steel | 2720gf | - | 1.300" (33.0mm) | 0.100" (2.5mm) | 0.045" (1.1mm) | 0.190" (4.8mm) | -12°C ~ 121°C |
|
|
GSXA20A1ASWITCH LIMIT EXPLOSION PROOF |
2,858 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9390.048SWITCH SAFETY HINGE SHS3-7-KA5/7 |
2,990 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BXA4LSWITCH SNAP ACTION DPDT 10A 120V |
1,375 |
|
Datasheet |
BX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Explosion Proof | 46gfm | - | 15° | 15° | 7° | 60° | -40°C ~ 70°C |
|
|
LSXL4M4SWITCH SNAP ACTION DPDT 10A 120V |
4,907 |
|
Datasheet |
LSX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Sequence Action | 46gfm | - | - | 15° | 5° | 48° | -12°C ~ 121°C |
|
|
9002AW21FOOT SWITCH SPDT 10A 600V |
3,412 |
|
Datasheet |
Harmony 9002AW | Box | Active | SPDT | On-Mom | 10A (AC) | 600 V | - | Foot Switch | - | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
422EN133-RBSWITCH AERO SEALED |
1,339 |
|
Datasheet |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
LS2M4NSWITCH SNAP ACTION DPDT 10A 120V |
3,458 |
|
Datasheet |
HDLS | Bulk | Active | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 18° | 10° | 57° | -12°C ~ 121°C |
|
|
622EN226-6SWITCH AERO SEALED |
4,275 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
V3L-708SWITCH SNAP ACTION SPDT 11A 125V |
2,002 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 113gf | 14gf | 0.625" (15.9mm) | 0.128" (3.25mm) | 0.050" (1.27mm) | 0.080" (2.03mm) | - |
|
|
V3L-709SWITCH SNAP ACTION SPDT 11A 125V |
4,186 |
|
Datasheet |
V3 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 113gf | 14gf | 0.625" (15.9mm) | 0.125" (3.18mm) | 0.050" (1.27mm) | 0.080" (2.03mm) | - |
|
EXD-AR-3SWITCH SNAP ACTION DPDT 10A 125V |
1,922 |
|
Datasheet |
EX | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Wire Leads | - | Explosion Proof | 227 ~ 680gf | 113 ~ 340gf | - | 0.250" (6.35mm) | 0.110" (2.8mm) | 25° | -40°C ~ 71°C |
|

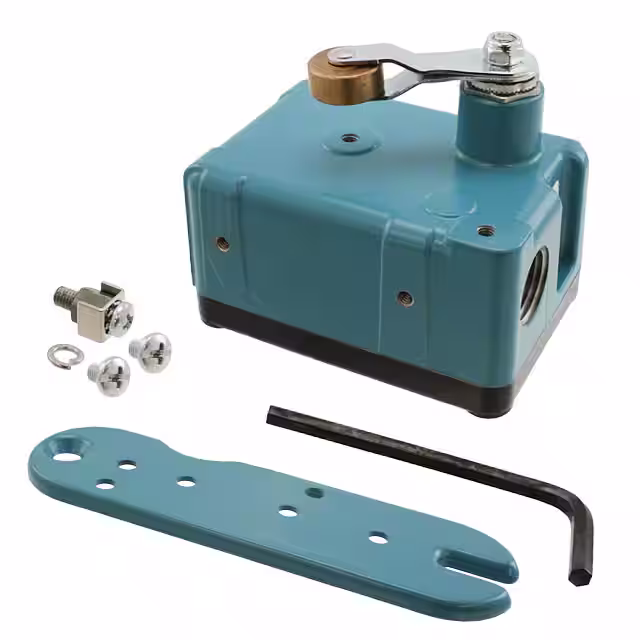

EX-AR800SWITCH SNAP ACTION SPDT 15A 125V |
4,056 |
|
Datasheet |
EX | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Explosion Proof | 227 ~ 567gf | - | - | 0.219" (5.6mm) | 0.007" (0.18mm) | 90° | -40°C ~ 71°C |
|
|
BXA4SSWITCH LIMIT |
1,511 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
38HM92SWITCH SNAP ACTION SPDT 1A 115V |
2,390 |
|
Datasheet |
HM | Bulk | Obsolete | SPDT | On-Mom | 1A (AC/DC) | 115 V | 28 V | Lever, Straight | Chassis Mount | Cable Leads | - | - | 42gf | 4.000gf | 0.406" (10.3mm) | 0.125" (3.2mm) | 0.056" (1.42mm) | 0.025" (0.6mm) | -54°C ~ 399°C |
|
|
607.3200.057SWITCH SNAP ACTION |
2,415 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
607.3200.058SWITCH SOLENOID LOCKING |
3,905 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9390.046SWITCH SAFETY HINGE |
3,280 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
601.9390.047SWITCH SAFETY HINGE SHS3-5-SA/5- |
3,688 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VPX1E2CAGR1A2BLIMIT SWITCH |
3,600 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
