Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCMD41F0L5EXSWITCH LIMIT 4PST 0.75A 240V |
3,137 |
|
Datasheet |
XC | Box | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 750mA (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -20°C ~ 60°C |
|
|
GSAA20A1B-1SWITCH SNAP ACTION 4PST 6A 120V |
2,079 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 34gf | - | - | - | 12° | - | -25°C ~ 80°C |
|
|
XCSD3719N12SWITCH SAFETY LMT 3PST 1.5A 240V |
3,985 |
|
Datasheet |
XCSD | Box | Active | 3PST-2NC/1NO | On-Off, Off-On | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Panel Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
1LN1-1-RHSWITCH SNAP ACTION SPDT 10A 125V |
4,690 |
|
Datasheet |
LN | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | Actuator Mounted Right Side | 2722gf | 454gf | 1.615" (41.0mm) | 0.063" (1.6mm) | 0.030" (0.76mm) | 0.172" (4.4mm) | -32°C ~ 55°C |
|
LSN1ASWITCH SNAP ACTION SPDT 10A 120V |
2,494 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Plug In | - | - | 46gfm | - | - | 65° | 40° | 20° | -1°C ~ 121°C |
|
|
9007C54B2Y128Y223SWITCH LIMIT 10A 600V |
1,402 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
9007C54JS9SWITCH LIMIT 10A 600V |
2,526 |
|
Datasheet |
C | Box | Active | - | - | 10A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | -18°C ~ 85°C |
|
|
LSYAB4L-1BSWITCH SNAP ACTION DPDT 10A 120V |
3,427 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Steel Roller, Front Mounted | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|
|
614.1103.627SWITCH LIMIT PLASTIC BODY |
4,557 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZG1-2RN2SWITCH SNAP ACTION SPDT 15A 125V |
3,504 |
|
- |
BZG | Bulk | Not For New Designs | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Actuator Seal Boot | 283 ~ 567gf | 113gf | - | 0.188" (4.8mm) | 0.006" (0.15mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
LSYAB3KSWITCH SNAP ACTION SPDT 10A 120V |
2,848 |
|
Datasheet |
HDLS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | 46gfm | - | - | 15° | 5° | 60° | -40°C ~ 121°C |
|
|
12SE6SWITCH SNAP ACTION SPDT 7A 28V |
2,731 |
|
Datasheet |
SE | Bulk | Active | SPDT | On-Mom | 7A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | - | - | 141 ~ 482gf | 113gf | 0.425" (10.8mm) | 0.050" (1.27mm) | 0.004" (0.1mm) | 0.003" (0.076mm) | -53°C ~ 105°C |
|
|
LSYMB7N3-1ASWITCH SNAP ACTION DPDT 10A 120V |
4,112 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Front Mounted | 46gfm | - | - | 18° | 10° | 57° | -40°C ~ 121°C |
|
|
LSYMB7N-1CSWITCH SNAP ACTION DPDT 10A 120V |
3,367 |
|
Datasheet |
HDLS | Bulk | Obsolete | DPDT (DB/DM) | Mom-Off-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Nylon Roller, Back Mounted | 46gfm | - | - | 18° | 10° | 57° | -40°C ~ 121°C |
|
|
612.1385.901SWITCH LIMIT METAL BODY |
3,500 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007ML03S0500SWITCH LIMIT SPDT 6A 120V |
2,400 |
|
Datasheet |
9007 | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
|
XCKD25H2P16SWITCH LIMIT DPST 3A 240V |
4,500 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
5XE18SEALED SWITCH |
2,302 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLAA01B-1Q03LIMIT SWITCH |
1,009 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

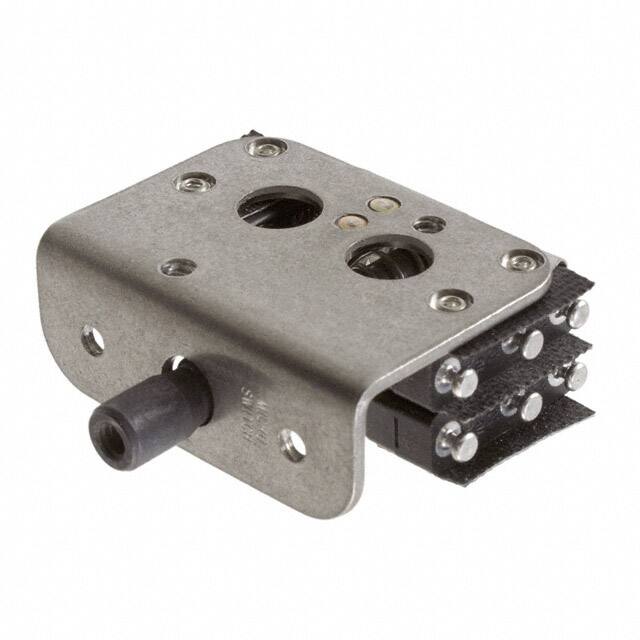

8AC9SWITCH SNAP ACT SPDTX4 5A 250V |
1,142 |
|
Datasheet |
AC | Bulk | Active | SPDT x 4 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Push-Pull Plunger | Chassis Mount | Solder Turret | - | - | - | - | 0.203" (5.2mm) | - | - | 0.125" (3.2mm) | -53°C ~ 121°C |
