Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAB104G01C06B09ASWITCH SNAP ACTION SPDT 16A 125V |
3,697 |
|
- |
MAB | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.250" (6.3mm) | - | - | 379gf | - | 0.844" (21.44mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -10°C ~ 105°C |
|
|
VX-012-2C23MINIATURE BASIC SWITCH |
3,377 |
|
Datasheet |
VX | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.598" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.80mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
|
|
VX-015-2C23MINIATURE BASIC SWITCH |
4,795 |
|
Datasheet |
VX | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 4.000gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.8mm) | -25°C ~ 105°C |
|
83170404SWITCH SNAP ACT SPST-NO 5A 250V |
4,843 |
|
Datasheet |
83170 | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
83170406SWITCH SNAP ACT SPST-NC 5A 250V |
4,830 |
|
Datasheet |
83170 | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Mushroom Button | Chassis Mount | Solder Lug | - | - | 61gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -40°C ~ 125°C |
|

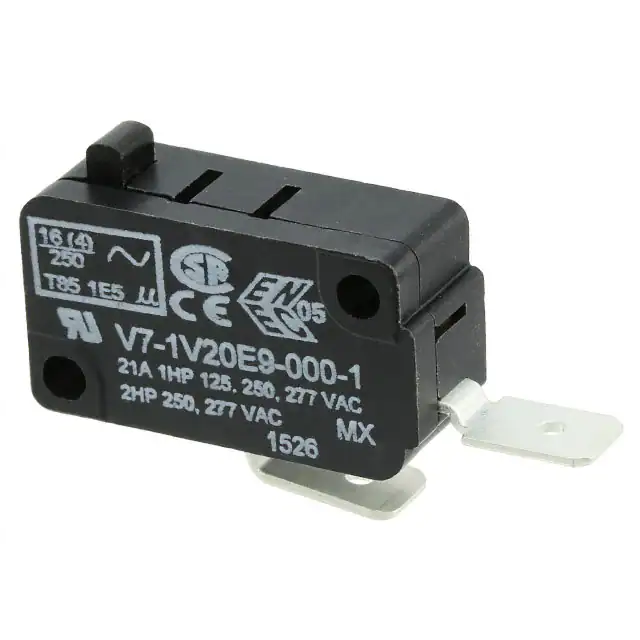

V7-1V20E9-000-1SWITCH SNAP ACT SPST-NO 21A 125V |
4,621 |
|
Datasheet |
V7 | Bulk | Active | SPST-NO | Off-Mom | 21A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 20gf | 0.578" (14.68mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|

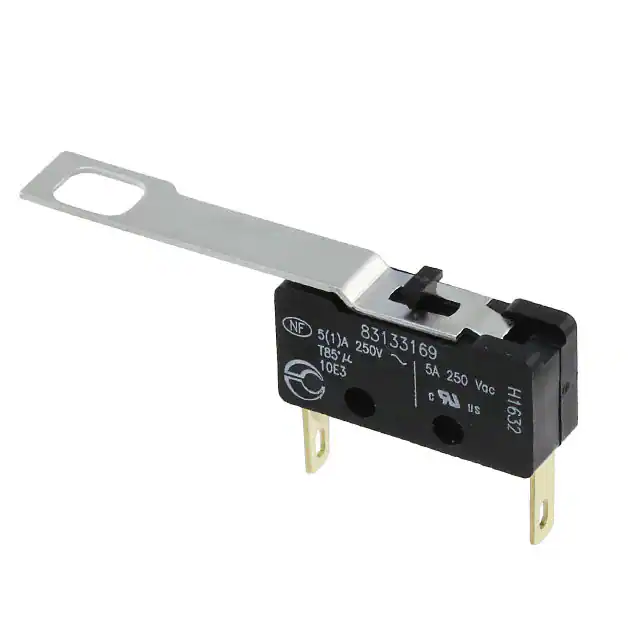

83133169SWITCH SNAP ACTION |
3,617 |
|
Datasheet |
83133 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABV123241SWITCH SNAP ACT SPST-NO 1A 250V |
3,224 |
|
Datasheet |
ABV | Bulk | Active | SPST-NO | Off-Mom | 1A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|

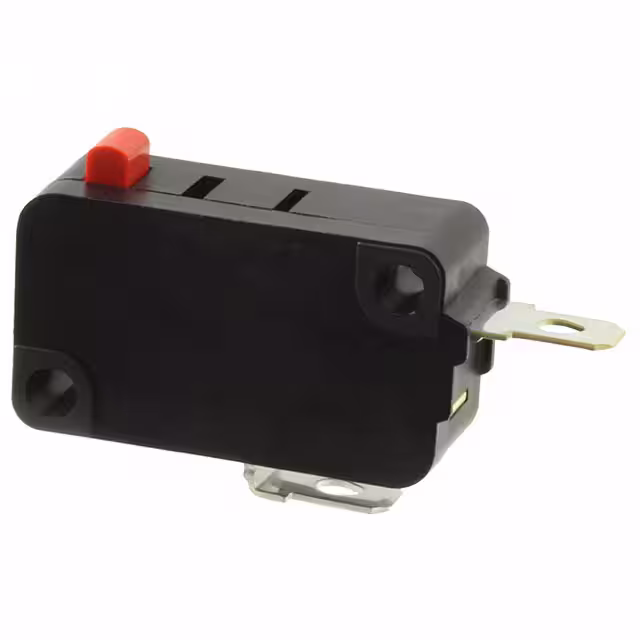

VX-5-2A3SWITCH SNAP ACT SPST-NC 5A 125V |
4,267 |
|
Datasheet |
VX | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

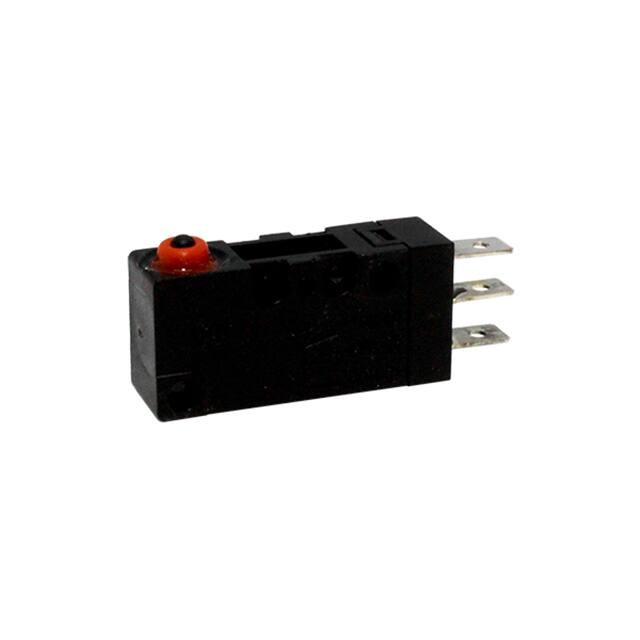

VM3SCQF3002L00SWITCH LIMIT SPDT 10A 125V |
2,662 |
|
Datasheet |
VM3S | Tray | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 320gf | 250gf | 0.581" (14.75mm) | 0.080" (2.0mm) | 0.031" (0.80mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
|
V7-1C17D8-295SWITCH SNAP ACTION SPDT 15A 125V |
3,512 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 91gf | 9.000gf | 0.730" (18.5mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
H0056RBSWITCH SNP ACT SPST-NC 0.2A 250V |
4,575 |
|
Datasheet |
0055 | Bulk | Active | SPST-NC | On-Mom | 200mA (AC) | 250 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | - |
|
13600SWITCH SNAP ACTION 5A 250V |
3,339 |
|
Datasheet |
- | Bulk | Active | - | - | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads with Connector | - | - | - | - | - | - | - | - | - |
|
13610SWITCH SNAP ACTION 5A 250V |
1,971 |
|
Datasheet |
- | Bulk | Active | - | - | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads with Connector | - | - | - | - | - | - | - | - | - |
|
|
V7-4F27E9-000-1V BASIC SWITCH |
2,840 |
|
- |
V7 | Bulk | Active | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
ZW50F15CD1-ZSWITCH SNAP ACTION SPDT 5A 125V |
3,287 |
|
Datasheet |
ZW | Tray | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 66gf | 13gf | 0.345" (8.8mm) | 0.188" (4.8mm) | 0.028" (0.7mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
ZMCJM9L0RSWITCH SNAP ACT SPDT 200MA 60V |
2,913 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 200mA (DC) | - | 60 V | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.330" (8.4mm) | - | - | - | -30°C ~ 85°C |
|
|
83170010SWITCH SNAP ACTION SPDT 10A 250V |
3,706 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 130°C |
|
|
TF325CFP0040YSWITCH SNAP ACT SPST-NO 25A 125V |
4,791 |
|
Datasheet |
TF2 | Bulk | Active | SPST-NO | Off-Mom | 25A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 190gf | - | 0.567" (14.4mm) | 0.075" (1.9mm) | 0.047" (1.2mm) | 0.026" (0.7mm) | -40°C ~ 125°C |
|
V-101-1C24SWITCH SNAP ACTION SPDT 10A 250V |
3,807 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 80°C |
