Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MBJ5CSNAP ACTING SWITCH MB |
1,973 |
|
- |
MB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 110gf | - | 0.622" (15.8mm) | 0.178" (4.5mm) | 0.028" (0.72mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
MBJ5C1SNAP ACTING SWITCH MB |
2,812 |
|
- |
MB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 95gf | - | 0.622" (15.8mm) | 0.197" (5.0mm) | 0.039" (1.00mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
V15T16-CC100SWITCH SNAP ACT SPST-NC 16A 125V |
3,138 |
|
Datasheet |
V15 | Bulk | Active | SPST-NC | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T16-CP100SWITCH SNAP ACT SPST-NO 16A 125V |
2,257 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 25gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T16-CP300SWITCH SNAP ACT SPST-NO 16A 125V |
4,870 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 300gf | - | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T16-E1P200SWITCH SNAP ACT SPST-NO 16A 125V |
4,579 |
|
Datasheet |
V15 | Bulk | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 125°C |
|
|
V15T16-EZ200A04SWITCH SNAP ACTION SPDT 16A 125V |
3,286 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
V15T10-CP200-ASWITCH BASIC |
1,696 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
V-15G-3C26-KSWITCH SNAP ACT SPST-NO 15A 250V |
1,620 |
|
Datasheet |
V | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 80gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
|
ABS1111509SWITCH SNAP ACTION SPDT 2A 125V |
2,013 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
|
ABS1113409SWITCH SNAP ACTION SPDT 2A 125V |
4,205 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 25gf | 2.500gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
|
ABS1411509SWITCH SNAP ACTION SPDT 2A 125V |
1,985 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
|
ABS1414409SWITCH SNAP ACTION SPDT 2A 125V |
4,313 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 35gf | 3.059gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABS1414509SWITCH SNAP ACTION SPDT 2A 125V |
2,611 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABS1512409SWITCH SNAP ACTION SPDT 2A 125V |
3,114 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 35gf | 3.059gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABS1514409SWITCH SNAP ACTION SPDT 2A 125V |
2,738 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 35gf | 3.059gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABS1514509SWITCH SNAP ACTION SPDT 2A 125V |
3,349 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
|
ABJ151660SWITCH SNAP ACTION SPDT 2A 125V |
3,532 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.516" (13.1mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

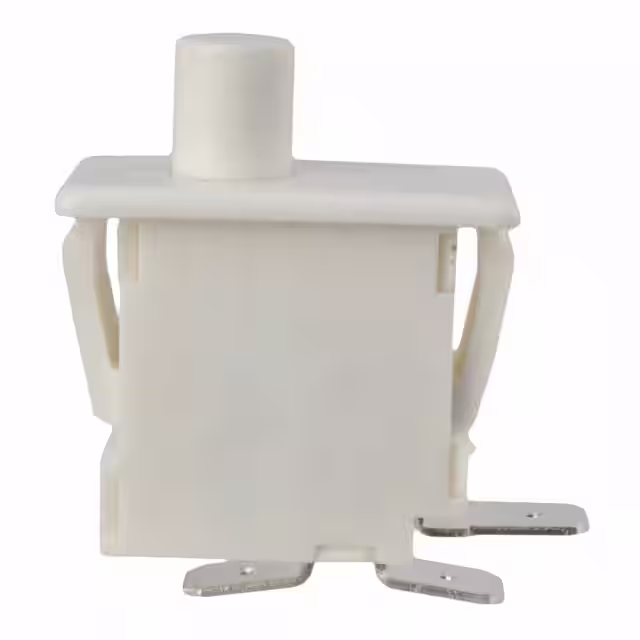

PP1-EB7-2D2SWITCH SNAP ACTION SPDT 16A 125V |
2,615 |
|
Datasheet |
PP1 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | White Actuator | 500gf | - | 0.362" (9.2mm) | - | - | - | 0°C ~ 85°C |
|
D2S-10L2DSWITCH SNAP ACTION SPDT 10A 250V |
1,477 |
|
Datasheet |
D2S | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Roller | Through Hole | PC Pin | IP40 | Sealed - Flux Protection | 50gf | 6.118gf | 0.594" (15.1mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
