Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZX10C20G01SWITCH SNAP ACTION SPDT 0.1A 48V |
2,977 |
|
Datasheet |
ZX | Box | Active | SPDT | On-Mom | 100mA (DC) | - | 48 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
AVM3255613-ASWITCH SNAP ACTION |
2,559 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D3V-11G-3F24-K-7SWITCH SNAP ACT SPST-NO 11A 250V |
2,864 |
|
Datasheet |
D3V | Bulk | Obsolete | SPST-NO | Off-Mom | 11A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | - | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -25°C ~ 105°C |
|
|
ASQ10817SWITCH SNAP ACTION SPDT 0.1A 30V |
1,643 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
.jpg)
|
D3V-01-1C23-T-KSWITCH SNAP ACT SPDT 0.1A 125V |
2,625 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 200°C |
|
|
MAA6BSWITCH SNAP ACT SPST-NO 16A 250V |
3,196 |
|
- |
MA | Tube | Active | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 163gf | - | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.060" (1.5mm) | -40°C ~ 85°C |
|
|
ZMW00AP00PCDCSWITCH SNAP ACTION SPDT 0.1A 30V |
3,108 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.030" (0.8mm) | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
ZMW00AP00SCDCSWITCH SNAP ACTION SPDT 0.1A 30V |
4,949 |
|
Datasheet |
ZMW | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.030" (0.8mm) | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|
|
V7-2A17D8-022SWITCH SNAP ACTION SPDT 5A 125V |
2,423 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 41gf | 3.000gf | 0.602" (15.3mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
|
V7-1A17D8-022SWITCH SNAP ACTION SPDT 5A 125V |
4,267 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 8.000gf | 0.602" (15.3mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.068" (1.73mm) | -40°C ~ 85°C |
|
|
V7-1A18D8-022SWITCH V BASIC |
1,066 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

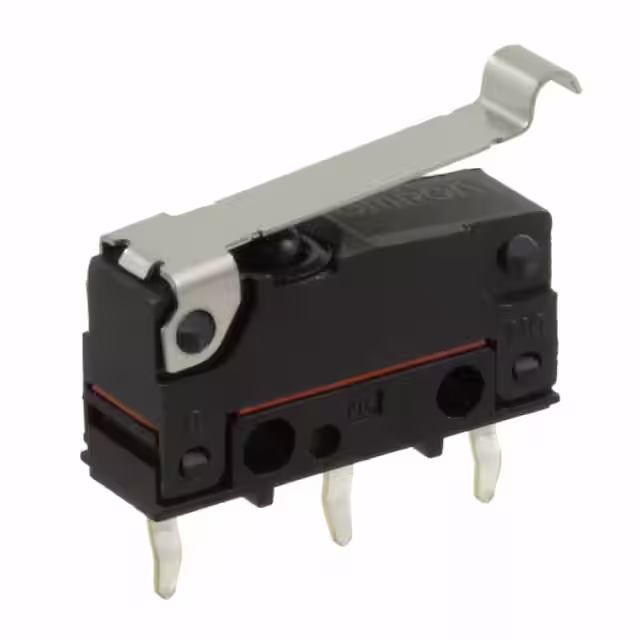

D2SW-P2L3DSWITCH SNAP ACTION SPDT 2A 250V |
3,531 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
D2SW-P2BSWITCH SNAP ACTION SPDT 2A 250V |
1,456 |
|
Datasheet |
D2SW-P | Bulk | Obsolete | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.025" (0.65mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -20°C ~ 70°C |
|
|
SSG-5L2P-5SWITCH SNAP ACTION SPDT 5A 125V |
3,690 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 20gf | 2.039gf | 0.705" (17.9mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
|
ASQ10717SWITCH SNAP ACTION SPDT 0.1A 30V |
1,079 |
|
- |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.105" (2.67mm) | -40°C ~ 85°C |
|
|
ZM50G70F03SWITCH SNAP ACT SPDT-NO 5A 125V |
1,329 |
|
Datasheet |
ZM | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | - | - | - | - | - | - | -40°C ~ 125°C |
|
|
V15H22-CZ300A05-KSWITCH SNAP ACTION SPDT 22A 250V |
2,405 |
|
Datasheet |
V15 | Tray | Obsolete | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 350gf | 60gf | 0.812" (20.6mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -25°C ~ 150°C |
|
|
V15H22-CZ300A03-KSWITCH SNAP ACTION SPDT 22A 250V |
3,041 |
|
Datasheet |
V15 | Tray | Obsolete | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 90gf | 15gf | 0.602" (15.3mm) | 0.252" (6.4mm) | 0.094" (2.4mm) | 0.102" (2.6mm) | -25°C ~ 150°C |
|
|
V15H22-CZ200B04-KSWITCH SNAP ACTION SPDT 22A 250V |
2,988 |
|
Datasheet |
V15 | Bulk | Obsolete | SPDT | On-Mom | 22A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 70gf | 15gf | 0.730" (18.5mm) | 0.219" (5.6mm) | 0.062" (1.6mm) | 0.098" (2.5mm) | -25°C ~ 150°C |
|
|
MAB101A01B03B03ASNAP ACTING SWITCH MA |
4,818 |
|
- |
MAB | Bulk | Active | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 66gf | 0.646" (16.4mm) | 0.125" (3.2mm) | 0.031" (0.80mm) | 0.059" (1.5mm) | -10°C ~ 105°C |
