LED COBs, Engines, Modules, Strips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Color | CCT (K) | Wavelength | Configuration | Luminous Flux @ Current/Temperature | Current - Test | Temperature - Test | Voltage - Forward (Vf) (Typ) | Lumens/Watt @ Current - Test | Current - Max | CRI (Color Rendering Index) | Viewing Angle | Features | Size / Dimension | Height | Light Emitting Surface (LES) | Lens Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BXEB-L1120Z-30E8000-C-D3LED MOD EB SER WH LNR STR 3000K |
3,204 |
|
Datasheet |
EB Series™ Gen 3 | Bulk | Active | LED Module | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Linear Light Strip | 9920lm | 1.4A | 25°C | 38.4V | 185 lm/W | 2.8A | 80 | 120° | - | 1120.00mm L x 24.00mm W | 6.10mm | - | Flat |
|
CMB2550-R060-000N0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
2,215 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 7355lm | 1.4A | 85°C | 34V | 155 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMB2550-R060-000N0H0A27GLED COB XLAMP WARM WHT SQU 2700K |
2,140 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 7053lm | 1.4A | 85°C | 34V | 148 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMB2550-R060-000N0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
3,055 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 7487lm | 1.4A | 85°C | 34V | 157 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMB2550-R060-000N0H0A40GLED COB XLAMP NEUT WHT SQU 4000K |
3,977 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 7543lm | 1.4A | 85°C | 34V | 158 lm/W | 3.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
CLU038-1208C4-353M2K1LED COB CLU038 WARM WHT SQ 3500K |
4,505 |
|
Datasheet |
CLU038 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 3658lm (Typ) | 720mA | 85°C | 34.6V | 147 lm/W | 1.84A | 80 | - | - | 19.00mm L x 19.00mm W | 1.40mm | 14.50mm Dia | Flat |
|
CMA2550-0000-000N0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
3,505 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6850lm (Typ) | 1.4A | 85°C | 34V | 144 lm/W | 3.3A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
|
BXRE-50G6501-C-83LED COB V22 CL WHT SQUARE 5000K |
3,184 |
|
Datasheet |
Gen 8 V22 Array | Tube | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 9968lm (Typ) | 1.2A | 25°C | 50.7V | 164 lm/W | 3.5A | 90 | 120° | - | 28.00mm L x 28.00mm W | 1.65mm | 23.30mm Dia | Flat |
|
|
CMB2550-R060-000N0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
3,854 |
|
Datasheet |
XLamp® CMB2550 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 6393lm | 1.4A | 85°C | 34V | 134 lm/W | 3.6A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.75mm | 19.00mm Dia | Flat |
|
|
CMU2287-0000-000P0H0A30GLED COB XLAMP WARM WHT SQ 3000K |
4,533 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 12625lm (Typ) | 1.62A | 85°C | 50.5V | 154 lm/W | 4.32A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0H0A35GLED COB XLAMP WARM WHT SQU 3500K |
4,577 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 12847lm (Typ) | 1.62A | 85°C | 50.5V | 157 lm/W | 4.32A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|

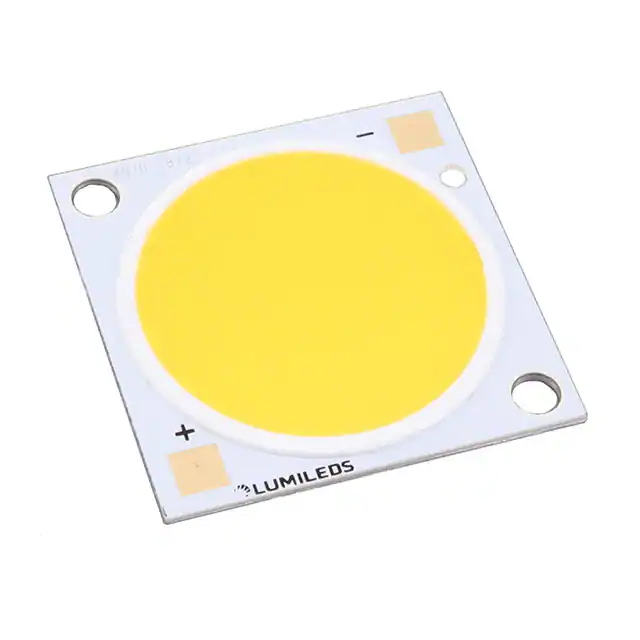

L2C5-30801812G2300LED COB LUXEON WM WHT SQ 3000K |
1,225 |
|
Datasheet |
LUXEON CoB Core Range Gen 3 | Tube | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 8536lm (Typ) | 1.2A | 85°C | 51.7V | 138 lm/W | 2.4A | 80 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 23.00mm Dia | Flat |
|
|
CXB3050-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
3,285 |
|
Datasheet |
XLamp® CXB3050 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | - | 1.4A | 85°C | 34V | - | 2.5A | 90 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A35GLED COB XLAMP WARM WHT SQU 3500K |
3,271 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 11135lm (Typ) | 1.62A | 85°C | 50.5V | 136 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
|
CMU2287-0000-000P0U0A30GLED COB XLAMP WARM WHT SQ 3000K |
4,313 |
|
Datasheet |
XLamp® CMU2287 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 10974lm (Typ) | 1.62A | 85°C | 50.5V | 134 lm/W | 4.32A | 90 | 115° | - | 28.00mm L x 28.00mm W | 1.50mm | 22.00mm Dia | Flat |
|
CLU731-1210C4-303M2K1LED COB CLU731 WM WHT SQ 3000K |
2,200 |
|
Datasheet |
CLU731 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K | - | Square | 7699lm (Typ) | 1.75A | 85°C | 37.6V | 117 lm/W | 2.3A | 80 | - | - | 28.00mm L x 28.00mm W | - | 13.00mm Dia | Flat |
|
CXM-18-27-90-36-AA30-F4-3LED COB CXM-18 GEN3 WHT SQ 2700K |
4,909 |
|
Datasheet |
CXM-18 Gen3 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 3590lm (Typ) | 900mA | 85°C | 34V | 117 lm/W | 2A | 90 | 120° | - | 21.50mm L x 21.50mm W | 1.37mm | 17.50mm Dia | Flat |
|
BXRC-17E10K0-B-74-SELED COB VERO SE 29 WHT RND 1750K |
2,022 |
|
Datasheet |
Vero® SE 29 Array | Tray | Active | Chip On Board (COB) | White, Warm | 1750K 4-Step MacAdam Ellipse | - | Round | 8237lm (Typ) | 1.8A | 25°C | 52V | 88 lm/W | 3.6A | 80 | 120° | - | 49.20mm Dia | 3.60mm | 29.20mm Dia | Flat |
|
|
CMA2550-0000-00PN0U0A40GLED COB XLAMP NEUT WHT SQU 4000K |
1,731 |
|
Datasheet |
XLamp® CMA2550 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 6652lm (Typ) | 1.4A | 85°C | 34V | 140 lm/W | 2.16A | 90 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia | Flat |
.JPG)
|

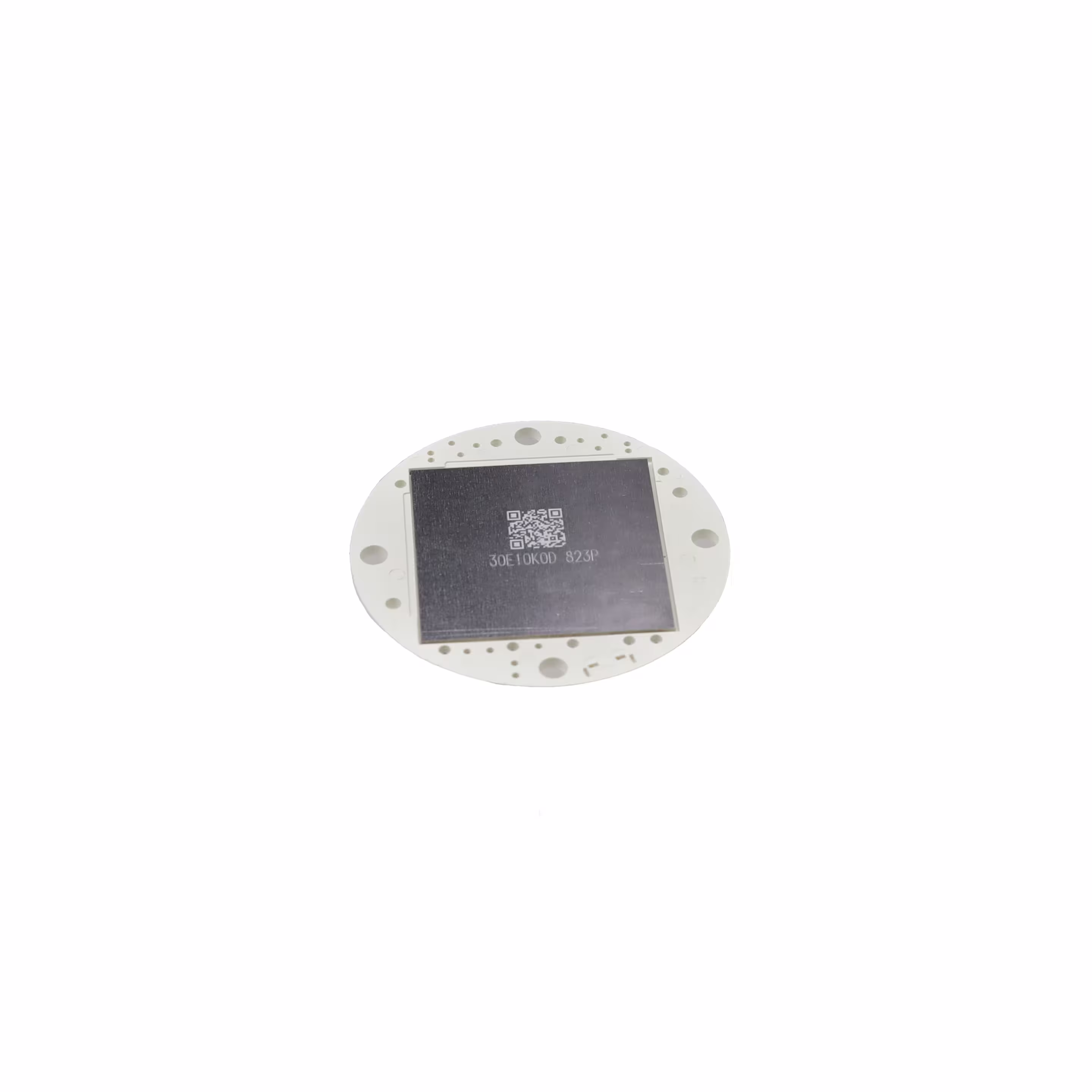

BXRC-30E10K0-D-83LED COB VERO 29C WHT RND 3000K |
1,609 |
|
Datasheet |
Gen 8 Vero® 29 Array | Bulk | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Round | 11444lm (Typ) | 1.7A | 25°C | 36.4V | 185 lm/W | 5.5A | 80 | 120° | With Connector | 49.20mm Dia | 1.90mm | 29.10mm Dia | Flat |
