LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

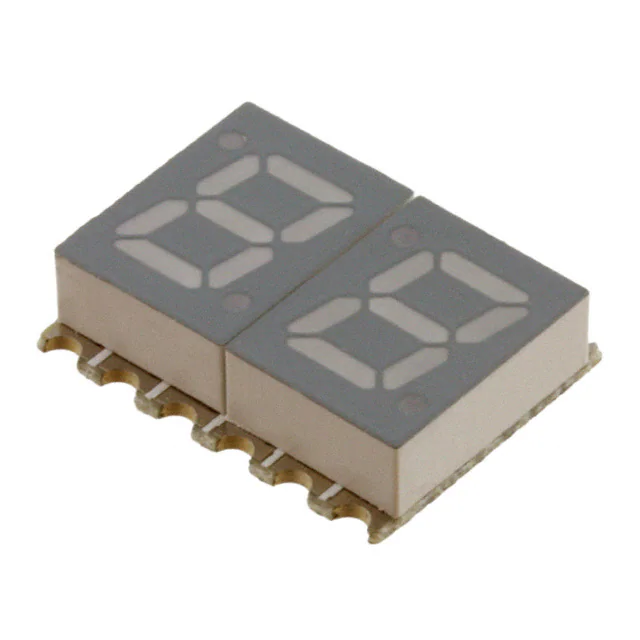

HDSM-293CDISPLAY 7SEG 0.28" DBL RED 10SMD |
5,911 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.394" H x 0.594" W x 0.148" D (10.00mm x 15.10mm x 3.75mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW |
|
|
HDSM-291CDISPLAY 7SEG 0.28" DBL RED 10SMD |
2,077 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.394" H x 0.594" W x 0.148" D (10.00mm x 15.10mm x 3.75mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 7.5mcd | 632nm | 65mW |
|

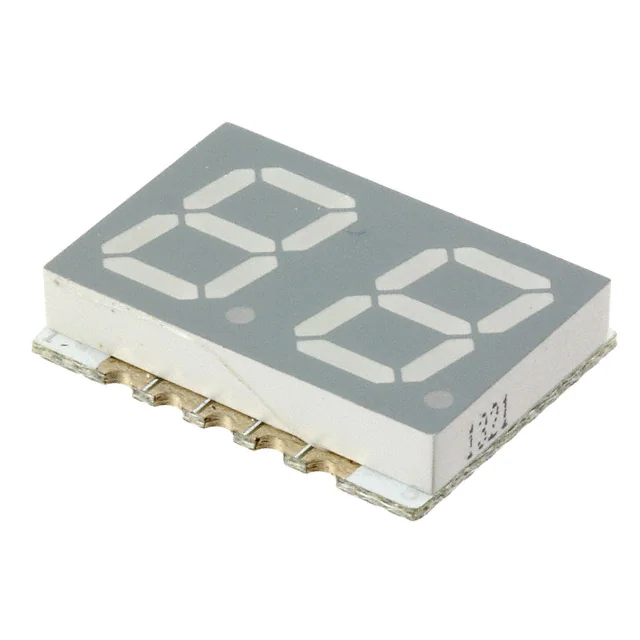

HDSM-443CDISPLAY 7SEG 0.39" DBL RED 10SMD |
1,498 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.512" H x 0.772" W x 0.148" D (13.00mm x 19.60mm x 3.75mm) | 0.39" (10.00mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 14.3mcd | 644nm | 65mW |
|
DA08-11SURKWADISPLAY 7-SEG 0.8" DBL RED 18DIP |
322 |
|
Datasheet |
- | 18-DIP (0.866", 22.00mm) | Tube | Active | - | 2 | 1.400" H x 1.010" W x 0.394" D (35.80mm x 25.85mm x 10.00mm) | 0.80" (20.32mm) | 7-Segment | Common Anode | Red | 1.95V | 20mA | 75mcd | 645nm | 75mW |
|
LF-3011VASINGLE DIGIT SURFACE MOUNT LED N |
504 |
|
Datasheet |
A | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | - | 1 | 0.433" H x 0.268" W x 0.197" D (11.00mm x 6.80mm x 5.00mm) | 0.32" (8.00mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 10mcd | 650nm | 320mW |
|

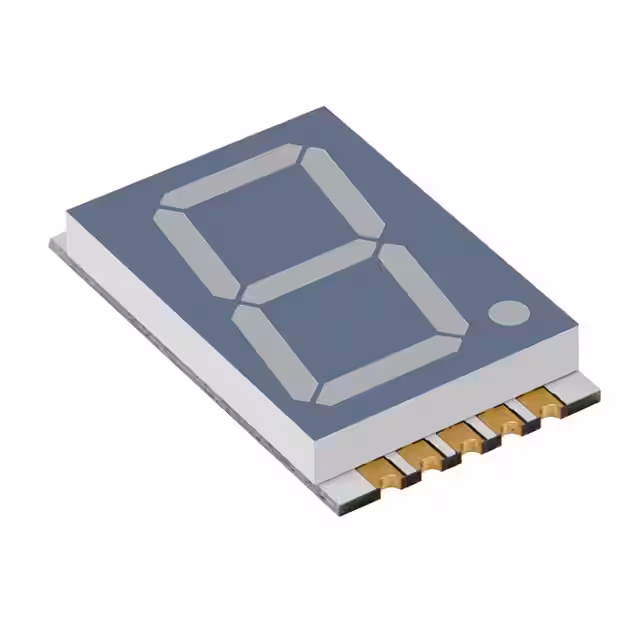

XZFMDK20C-ADISPLAY 7-SEG 0.8" SGL RED 10SMD |
204 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.945" H x 0.661" W x 0.148" D (24.00mm x 16.80mm x 3.75mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Red | 1.85V | 10mA | 12mcd | 645nm | 75mW |
|

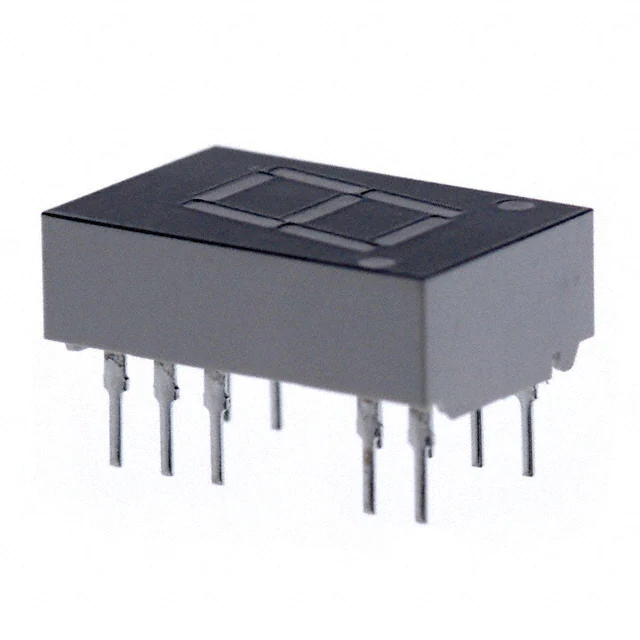

HDSP-E101DISPLAY 7SEG 0.43" SGL RED 14DIP |
1,312 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 10 Leads | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | 0.43" (11.00mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.9mcd | 645nm | 37mW |
|
|
BA56-11SURKWADISPLAY 7SEG 0.56" TRP RED 28DIP |
2,514 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | - | 3 | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.95V | 20mA | 73mcd | 645nm | 75mW |
|
|
BC56-11SURKWADISPLAY 7SEG 0.56" TRP RED 28DIP |
154 |
|
Datasheet |
- | 28-DIP (0.600", 15.24mm) | Tube | Active | - | 3 | 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 1.95V | 20mA | 73mcd | 645nm | 75mW |
|
|
ACDC04-41SURKWA-F01DISPLAY 7-SEG 0.4" DBL RED 20SMD |
398 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.512" H x 0.728" W x 0.148" D (13.00mm x 18.50mm x 3.75mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 1.95V | 20mA | 27mcd | 650nm | 75mW |
|

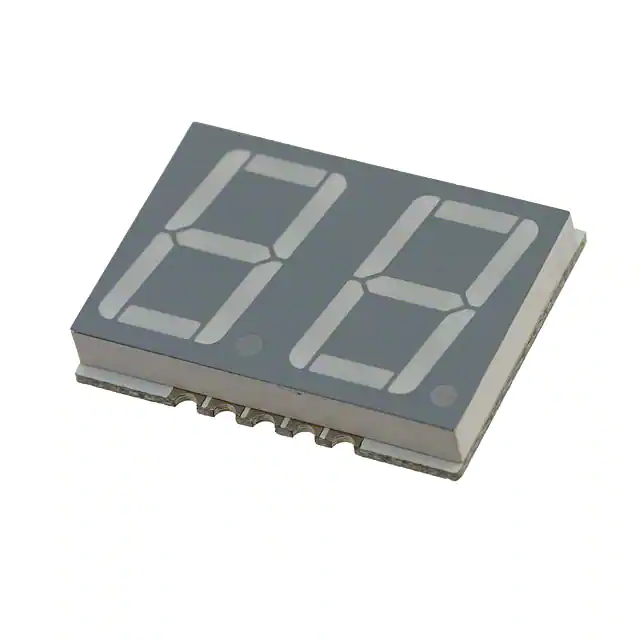

HDSM-541CDISPLAY 7SEG 0.56" DBL RED 10SMD |
1,499 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.669" H x 0.984" W x 0.148" D (17.00mm x 25.00mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 16mcd | 632nm | 65mW |
|

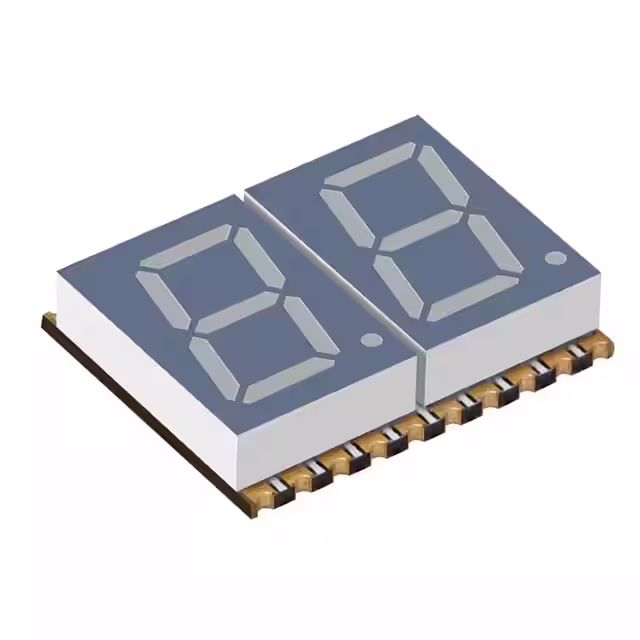

XZFCBD10A20.4" BLUE DUAL DIGIT CA SMD LED |
2,633 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.591" H x 0.728" W x 0.157" D (15.00mm x 18.50mm x 4.00mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Blue | 3V | 10mA | 8.79mcd | 460nm | 120mW |
|
|
DC08-11SURKWADISPLAY 7-SEG 0.8" DBL RED 18DIP |
894 |
|
Datasheet |
- | 18-DIP (0.866", 22.00mm) | Tube | Active | - | 2 | 1.400" H x 1.010" W x 0.394" D (35.80mm x 25.85mm x 10.00mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Red | 1.95V | 20mA | 75mcd | 645nm | 75mW |
|
HDSP-U113DISPLAY 7SEG 0.31" SGL RED 10DIP |
3,140 |
|
Datasheet |
- | 10-DIP (0.209", 5.30mm) | Tube | Active | - | 1 | 0.433" H x 0.280" W x 0.197" D (11.00mm x 7.10mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 3.6mcd | 645nm | 37mW |
|
LB-603VFDISPLAY 7SEG 0.56" TRP RED 28DIP |
134 |
|
Datasheet |
LB-603 FP | 28-DIP (0.600", 15.24mm) | Bulk | Active | - | 3 | 0.709" H x 1.476" W x 0.315" D (18.00mm x 37.50mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 16mcd | 650nm | 960mW |
|
|
CA56-11SURKWADISP 7SEG 0.56" QUAD RED 36DIP |
180 |
|
Datasheet |
- | 36-DIP (0.600", 15.24mm) | Tube | Active | - | 4 | 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) | 0.56" (14.22mm) | 7-Segment Clock | Common Anode | Red | 1.95V | 20mA | 72mcd | 645nm | 75mW |
|
LBP-602MK2DISPLAY 7SEG 0.56" DBL GRN 18DIP |
191 |
|
Datasheet |
LBP-602 A/K2 | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.748" H x 0.984" W x 0.315" D (19.00mm x 25.00mm x 8.00mm) | 0.56" (14.30mm) | 7-Segment | Common Cathode | Green | 1.9V | 20mA | 100mcd | 572nm | 56mW |
|
PSC12-11SURKWA1.2" ALPHANUMERIC RED LED DISPLA |
223 |
|
Datasheet |
- | 18-DIP (0.800", 20.32mm) | Bulk | Active | - | 1 | 1.575" H x 1.083" W x 0.453" D (40.00mm x 27.50mm x 11.50mm) | 1.20" (30.48mm) | 16-Segment, Alphanumeric | Common Cathode | Red | 1.85V, 3.7V | 10mA | 63mcd | 645nm | 75mW |
|
LB-402VNDISPLAY 7-SEG 0.4" DBL RED 18DIP |
253 |
|
Datasheet |
- | 18-DIP | Bulk | Active | - | 2 | 0.709" H x 0.945" W x 0.276" D (18.00mm x 24.00mm x 7.00mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 2V | 10mA | 16mcd | 650nm | 40mW |
|
QBQS400RDISPLAY 7SEG 0.4" QUAD RED 12SMD |
500 |
|
Datasheet |
QBQS40ZXX | 12-SMD, No Lead | Tape & Reel (TR) | Active | - | 4 | 0.512" H x 1.457" W x 0.124" D (13.00mm x 37.00mm x 3.15mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 20mcd | 625nm | 70mW |
