LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDSP-5558DISP 7SEG 0.56" OV/FL RED 10DIP |
3,080 |
|
Datasheet |
- | 10-DIP (0.600", 15.24mm), 9 Leads | Bulk | Obsolete | - | +/-1 (overflow) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 1.48mcd | 635nm | 52mW |
|
|
HDSP-5603-GH000DISPLAY 7SEG 0.56" SGL GRN 10DIP |
1,887 |
|
Datasheet |
HDSP-560x | 10-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW |
|
|
HDSP-5607DISP 7SEG 0.56" OV/FL GRN 10DIP |
3,198 |
|
Datasheet |
HDSP-560x | 10-DIP (0.600", 15.24mm), 9 Leads | Bulk | Obsolete | - | +/-1 (overflow) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW |
|
|
HDSP-5607-GH000DISP 7SEG 0.56" OV/FL GRN 10DIP |
1,328 |
|
Datasheet |
HDSP-560x | 10-DIP (0.600", 15.24mm), 9 Leads | Bulk | Obsolete | - | +/-1 (overflow) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW |
|
|
HDSP-5608DISP 7SEG 0.56" OV/FL GRN 10DIP |
4,049 |
|
Datasheet |
HDSP-560x | 10-DIP (0.600", 15.24mm), 9 Leads | Bulk | Obsolete | - | +/-1 (overflow) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW |
|

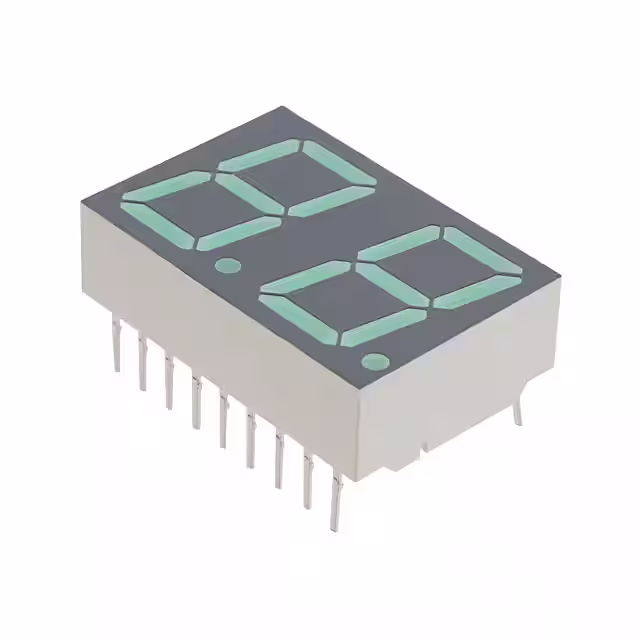

HDSP-5621-GH000DISPLAY 7SEG 0.56" DBL GRN 18DIP |
3,258 |
|
Datasheet |
HDSP-562x | 18-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 2 | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW |
|
|
HDSP-5623-GH000DISPLAY 7SEG 0.56" DBL GRN 18DIP |
3,144 |
|
Datasheet |
HDSP-562x | 18-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 2 | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.1V | 10mA | 2.5mcd | 566nm | 105mW |
|
|
HDSP-5701-FG000DISPLAY 7SEG 0.56" SGL YLW 10DIP |
4,945 |
|
Datasheet |
HDSP-570x | 10-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 1 | 0.673" H x 0.495" W x 0.315" D (17.10mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Yellow | 2.1V | 20mA | 1.8mcd | 583nm | 80mW |
|
|
HDSP-5703-FG000DISPLAY 7SEG 0.56" SGL YLW 10DIP |
2,297 |
|
Datasheet |
HDSP-570x | 10-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Yellow | 2.1V | 20mA | 1.8mcd | 583nm | 80mW |
|
|
HDSP-5708DISP 7SEG 0.56" OV/FL YLW 10DIP |
3,647 |
|
Datasheet |
HDSP-570x | 10-DIP (0.600", 15.24mm), 9 Leads | Bulk | Obsolete | - | +/-1 (overflow) | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Yellow | 2.1V | 20mA | 1.8mcd | 583nm | 80mW |
|

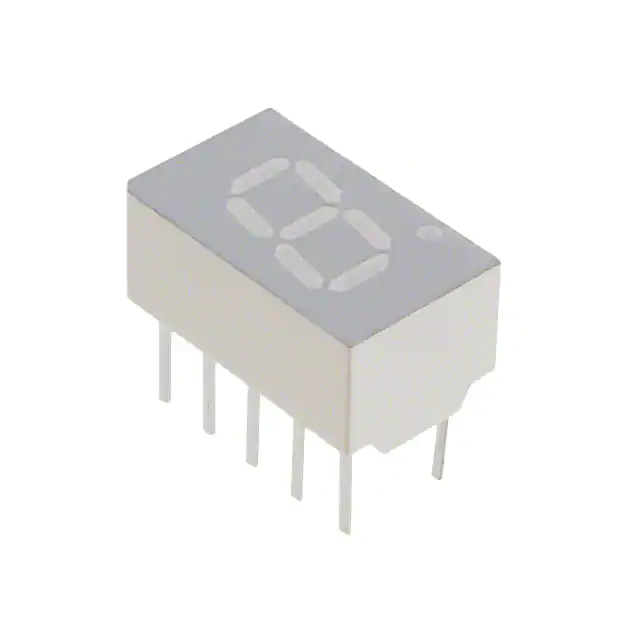

HDSP-7401-DE000DISPLAY 7-SEG 0.3" SGL YLW 10DIP |
2,348 |
|
Datasheet |
HDSP-740x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW |
|
|
HDSP-7403-DE000DISPLAY 7-SEG 0.3" SGL YLW 10DIP |
3,796 |
|
Datasheet |
HDSP-740x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW |
|
|
HDSP-7404DISPLAY 7-SEG 0.3" SGL YLW 10DIP |
2,938 |
|
Datasheet |
HDSP-740x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW |
|
|
HDSP-7407DISP 7SEG 0.3" OV/FL YLW 10DIP |
2,302 |
|
Datasheet |
HDSP-740x | 10-DIP (0.200", 5.08mm), 7 Leads | Bulk | Obsolete | - | +/-1 (overflow) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW |
|
|
HDSP-7408DISP 7SEG 0.3" OV/FL YLW 10DIP |
1,696 |
|
Datasheet |
HDSP-740x | 10-DIP (0.200", 5.08mm), 7 Leads | Bulk | Obsolete | - | +/-1 (overflow) | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Yellow | 2.2V | 20mA | 2.74mcd | 583nm | 80mW |
|
|
HDSP-7502DISPLAY 7-SEG 0.3" SGL RED 10DIP |
4,574 |
|
Datasheet |
HDSP-750x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 5.39mcd | 635nm | 105mW |
|
|
HDSP-7503-CD000DISPLAY 7-SEG 0.3" SGL RED 10DIP |
4,783 |
|
Datasheet |
HDSP-750x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 5.39mcd | 635nm | 105mW |
|
|
HDSP-7503-DD000DISPLAY 7-SEG 0.3" SGL RED 10DIP |
1,192 |
|
Datasheet |
HDSP-750x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 5.39mcd | 635nm | 105mW |
|
|
HDSP-7504DISPLAY 7-SEG 0.3" SGL RED 10DIP |
2,611 |
|
Datasheet |
HDSP-750x | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 5.39mcd | 635nm | 105mW |
|
|
HDSP-7511-CD000DISPLAY 7-SEG 0.3" SGL RED 10DIP |
4,480 |
|
Datasheet |
- | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | 1 | 0.500" H x 0.300" W x 0.390" D (12.70mm x 7.62mm x 9.91mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 1.05mcd | 635nm | 52mW |
