LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSQC6442CDISPLAY 7-SEG 0.56" QUAD GREEN |
3,106 |
|
Datasheet |
- | - | Bulk | Obsolete | - | 4 | 0.673" H x 1.984" W x 0.315" D (17.10mm x 50.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 2.1V | 20mA | 2.4mcd | 570nm | 70mW |
|
XAMR20CDISPLAY 16SEG 0.8" SGL RED 18DIP |
2,105 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm) | Tube | Obsolete | - | 1 | 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) | 0.80" (20.32mm) | 16-Segment, Alphanumeric | Common Cathode | Red | 1.8V | 10mA | 8mcd | 655nm | 75mW |
|

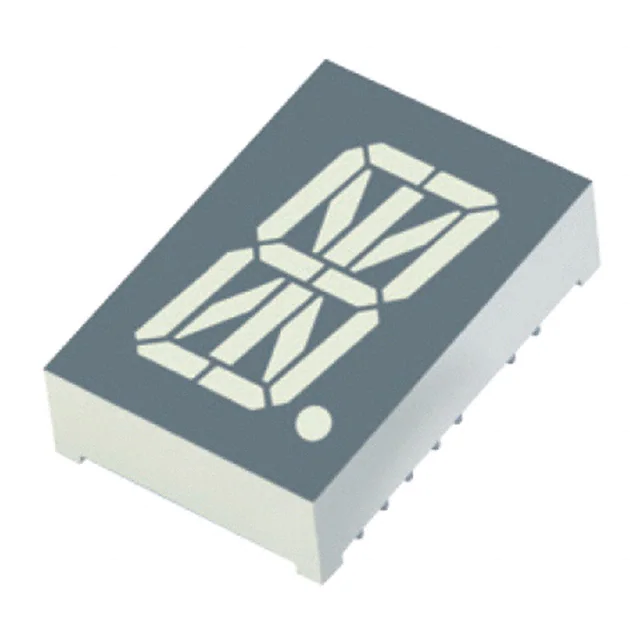

XAMR20ADISPLAY 16SEG 0.8" SGL RED 18DIP |
4,209 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm) | Tube | Obsolete | - | 1 | 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) | 0.80" (20.32mm) | 16-Segment, Alphanumeric | Common Anode | Red | 1.8V | 10mA | 8mcd | 655nm | 75mW |
|
|
MSQC6410WDISPLAY 7-SEG 0.56" QUAD GREEN |
1,728 |
|
Datasheet |
- | - | Bulk | Obsolete | - | 4 | 0.673" H x 1.984" W x 0.315" D (17.10mm x 50.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.4mcd | 570nm | 70mW |
|
|
LTC-5623JD-20N/D LTC-5623JD-20 C/D DISPLAY |
3,013 |
|
- |
- | 12-DIP (0.600", 15.24mm) | Tube | Active | - | 4 | 0.748" H x 1.980" W x 0.315" D (19.00mm x 50.30mm x 8.00mm) | 0.56" (14.20mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 0.7mcd | 650nm | 70mW |
|

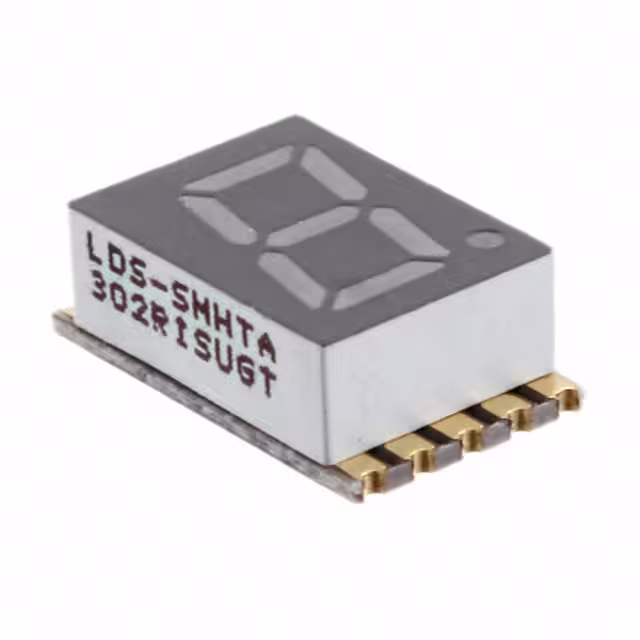

LDS-SMHTA302RISUGTDISPLAY 7SEG 0.3" SGL GRN 10SMD |
4,881 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.394" H x 0.287" W x 0.154" D (10.00mm x 7.30mm x 3.90mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Green | 2.25V | 20mA | 2.5mcd | 568nm | 65mW |
|
MAN6740LED 7-SEG DUAL CC RED RHDP .56" |
2,369 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 2 | 0.750" H x 0.985" W x 0.315" D (19.05mm x 25.02mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2V (Max) | 20mA | 0.42mcd | 650nm | 960mW |
|
SMA561LA G/W0.56" SGL SMD DISPLAY - AMBER |
1,418 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.669" H x 0.492" W x 0.161" D (17.00mm x 12.50mm x 4.10mm) | 0.56" (14.20mm) | 7-Segment | Common Anode | Amber | 2V | 20mA | 25mcd | 612nm | 70mW |
|
|
SMA561LE G/W0.56" SGL SMD DISPLAY - RED |
4,099 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.669" H x 0.492" W x 0.161" D (17.00mm x 12.50mm x 4.10mm) | 0.56" (14.20mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 25mcd | 632nm | 70mW |
|
|
SMC561LR G/W0.56" SGL SMD DISPLAY - S-RED |
4,901 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.669" H x 0.492" W x 0.161" D (17.00mm x 12.50mm x 4.10mm) | 0.56" (14.20mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 4mcd | 650nm | 75mW |
|
LA-301EBDISPLAY 7SEG 0.31" SGL ORG 10DIP |
4,202 |
|
Datasheet |
- | 10-DIP (0.209", 5.30mm) | Bulk | Active | - | 1 | 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) | 0.31" (8.00mm) | 7-Segment | Common Anode | Orange | 2.05V | 10mA | 90mcd | 610nm | 65mW |
|
|
HDSP-F151-NO000LED |
4,904 |
|
- |
HDSP-Fxxx | 10-DIP (0.300", 7.62mm) | Bulk | Active | - | - | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 1.8V | 20mA | 15mcd | 645nm | 96mW |
|
SDSA39B2WDISPLAY 7SEG 0.39" SGL BLU 10SMD |
4,668 |
|
Datasheet |
- | 10-SMD, No Lead | Bulk | Active | - | 1 | 0.512" H x 0.386" W x 0.148" D (13.00mm x 9.80mm x 3.75mm) | 0.39" (10.00mm) | 7-Segment | Common Anode | Blue | 3.2V | 20mA | 30mcd | 470nm | 120mW |
|
|
SDSC28B2WDISPLAY 7SEG 0.28" SGL BLU 10SMD |
2,046 |
|
Datasheet |
- | 10-SMD, No Lead | Bulk | Active | - | 1 | 0.394" H x 0.295" W x 0.150" D (10.00mm x 7.50mm x 3.80mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Blue | 3.2V | 20mA | 30mcd | 470nm | 120mW |
|
|
SDSC20B2WDISPLAY 7SEG 0.20" SGL BLU 10SMD |
3,228 |
|
Datasheet |
- | 10-SMD, No Lead | Bulk | Active | - | 1 | 0.315" H x 0.283" W x 0.118" D (8.00mm x 7.20mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Cathode | Blue | 3.2V | 20mA | 20mcd | 469nm | 120mW |
|
|
SDSA20B2WDISPLAY 7SEG 0.20" SGL BLU 10SMD |
2,342 |
|
Datasheet |
- | 10-SMD, No Lead | Bulk | Active | - | 1 | 0.315" H x 0.283" W x 0.118" D (8.00mm x 7.20mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Blue | 3.2V | 20mA | 20mcd | 469nm | 120mW |
|
|
SDSC20GT2WDISPLAY 7SEG 0.20" SGL GRN 10SMD |
3,152 |
|
Datasheet |
- | 10-SMD, No Lead | Bulk | Active | - | 1 | 0.315" H x 0.283" W x 0.118" D (8.00mm x 7.20mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Cathode | Green | 3.2V | 20mA | 50mcd | 525nm | 120mW |
|
|
SDSA20GT2WDISPLAY 7SEG 0.20" SGL GRN 10SMD |
4,058 |
|
Datasheet |
- | 10-SMD, No Lead | Bulk | Active | - | 1 | 0.315" H x 0.283" W x 0.118" D (8.00mm x 7.20mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Green | 3.2V | 20mA | 50mcd | 525nm | 120mW |
|
XZFCWD14ADISPLAY 7SEG 0.56" SGL WHT 10SMD |
2,913 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | White | 3V | 10mA | 38mcd | - | 120mW |
|
|
HDSP-H103-EF000LED |
2,854 |
|
Datasheet |
HDSP-H10x | 10-DIP (0.600", 15.24mm) | Bulk | Active | - | - | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.56" (14.20mm) | 7-Segment | Common Cathode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW |
