LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HDSP-A151DISPLAY 7-SEG 0.3" SGL RED 10DIP |
1,518 |
|
Datasheet |
HDSP-A15x | 10-DIP (0.200", 5.08mm) | Bulk | Active | - | 1 | 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Red | 1.8V | 20mA | 14mcd | 645nm | 96mW |
|
ACSC56-41QWA/D-F01DISPLAY 7SEG 0.56" SGL WHT 10SMD |
1,244 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.669" H x 0.488" W x 0.148" D (17.00mm x 12.40mm x 3.75mm) | 0.56" (14.20mm) | 7-Segment | Common Cathode | White | 3V | 10mA | 38mcd | - | 120mW |
|
SA10-21EWADISPLAY 7-SEG 1" SGL RED 10DIP |
808 |
|
Datasheet |
- | 10-DIP (1.200", 30.48mm) | Tube | Active | - | 1 | 1.339" H x 0.945" W x 0.413" D (34.00mm x 24.00mm x 10.50mm) | 1.00" (25.40mm) | 7-Segment | Common Anode | Red | 4V | 20mA | 23mcd | 627nm | 150mW |
|
5082-7653DISPLAY 7SEG 0.43" SGL RED 14DIP |
1,912 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 11 Leads | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.250" D (19.05mm x 12.70mm x 6.35mm) | 0.43" (11.00mm) | 7-Segment | Common Cathode | Red | 2.1V | 20mA | 1.12mcd | 635nm | 105mW |
|

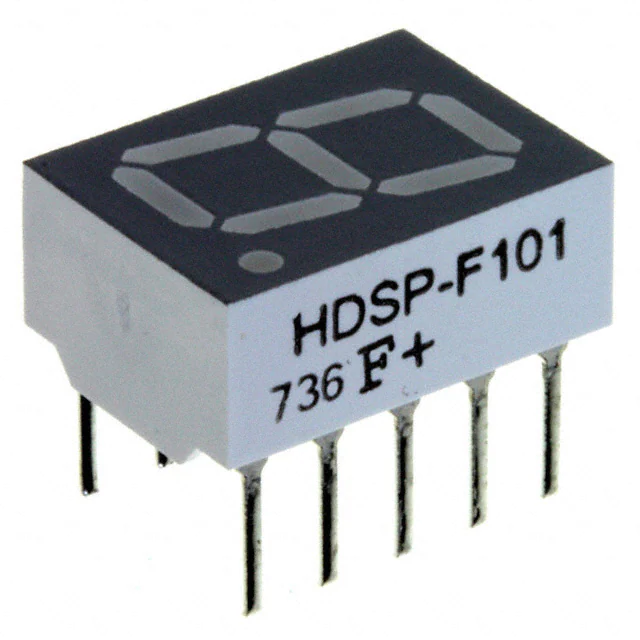

HDSP-F101DISPLAY 7-SEG 0.4" SGL RED 10DIP |
104 |
|
Datasheet |
- | 10-DIP (0.300", 7.62mm) | Tube | Active | - | 1 | 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.9mcd | 645nm | 37mW |
|
LDQ-M284RIDISP 7SEG 0.28" QUAD RED 12DIP |
798 |
|
Datasheet |
- | 12-DIP (0.300", 7.62mm) | Bulk | Active | - | 4 | 0.402" H x 1.268" W x 0.228" D (10.20mm x 32.20mm x 5.80mm) | 0.28" (7.00mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 5mcd | 635nm | 105mW |
|

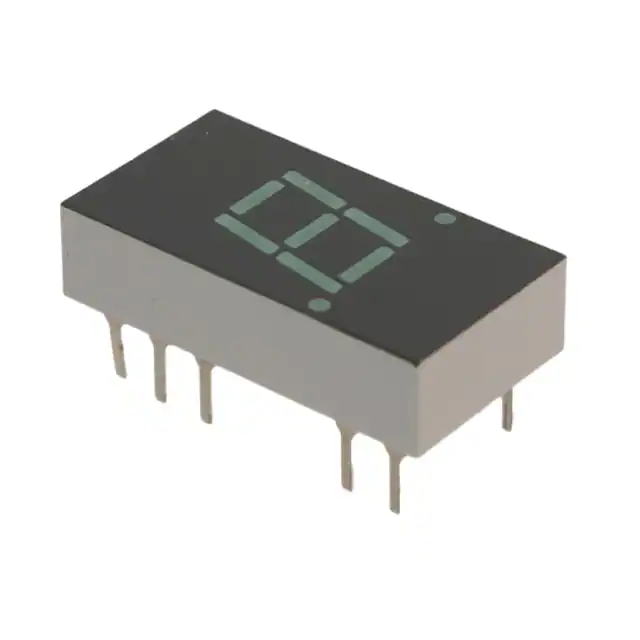

HDSP-3601DISPLAY 7SEG 0.3" SGL GRN 14DIP |
1,427 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 11 Leads | Bulk | Active | - | 1 | 0.750" H x 0.400" W x 0.180" D (19.05mm x 10.16mm x 4.57mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Green | 2.1V | 10mA | 2.7mcd | 566nm | 105mW |
|
HDSP-H101DISPLAY 7SEG 0.56" SGL RED 10DIP |
1,688 |
|
Datasheet |
- | 10-DIP (0.600", 15.24mm) | Tube | Active | - | 1 | 0.670" H x 0.495" W x 0.315" D (17.02mm x 12.57mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 4.2mcd | 645nm | 37mW |
|
1001DISP 7SEG 0.56" QUAD WHT 14DIP |
199 |
|
Datasheet |
- | 14-DIP (0.600", 15.24mm) | Bulk | Active | - | 4 | 0.749" H x 1.978" W x 0.315" D (19.00mm x 50.20mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment Clock | Common Cathode | White | 3.2V | 20mA | 30mcd | - | 100mW |
|
PDA54-11SURKWA.54" DUAL ALPHANUMERIC RED LED D |
146 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 2 | 0.835" H x 0.992" W x 0.307" D (21.20mm x 25.20mm x 7.80mm) | 0.53" (13.50mm) | 14-Segment, Alphanumeric | Common Anode | Red | 1.85V | 10mA | 68mcd | 645nm | 75mW |
|
HDSM-283BDISPLAY 7SEG 0.28" SGL BLU 12SMD |
3,529 |
|
Datasheet |
- | 12-SMD, No Lead, 11 Pads | Tape & Reel (TR) | Active | - | 1 | 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) | 0.28" (7.00mm) | 7-Segment | Common Cathode | Blue | 3.3V | 20mA | 6mcd | 462nm | 100mW |
|
ACDA03-41SEKWA-F01DISPLAY 7-SEG 0.3" DBL ORG 20SMD |
300 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.394" H x 0.583" W x 0.148" D (10.00mm x 14.80mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Orange | 2.1V | 20mA | 46mcd | 610nm | 75mW |
|
PSA08-11SURKWA.8" RED ALPHANUMERIC LED DISPLAY |
246 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 1 | 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) | 0.80" (20.32mm) | 16-Segment, Alphanumeric | Common Anode | Red | 1.85V | 10mA | 71mcd | 645nm | 75mW |
|
HDSP-5523DISPLAY 7SEG 0.56" DBL RED 18DIP |
2,826 |
|
Datasheet |
HDSP-552x | 18-DIP (0.600", 15.24mm) | Tube | Active | - | 2 | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Red | 2.1V | 20mA | 2.8mcd | 635nm | 105mW |
|

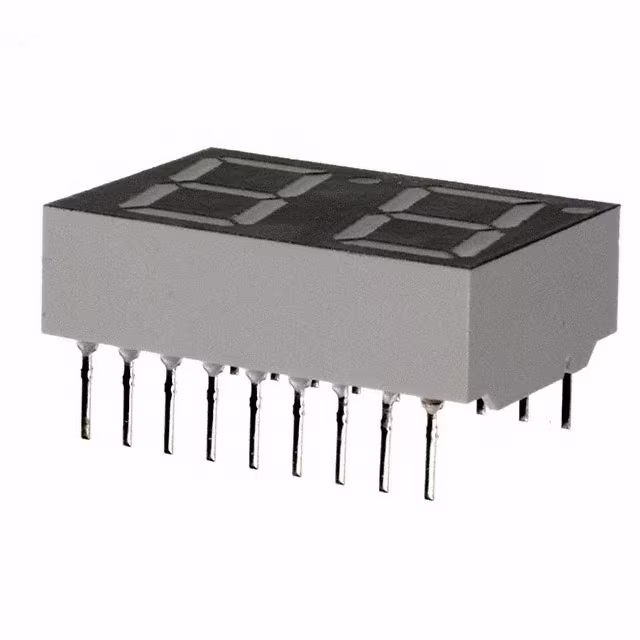

HDSP-5521DISPLAY 7SEG 0.56" DBL RED 18DIP |
469 |
|
Datasheet |
HDSP-552x | 18-DIP (0.600", 15.24mm) | Tube | Active | - | 2 | 0.670" H x 0.990" W x 0.315" D (17.02mm x 25.15mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2.1V | 20mA | 2.8mcd | 635nm | 105mW |
|
|
PSC08-11SURKWA.8" RED LED DISPLAY |
458 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 1 | 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) | 0.80" (20.32mm) | 16-Segment, Alphanumeric | Common Cathode | Red | 1.85V | 10mA | 71mcd | 645nm | 75mW |
|
|

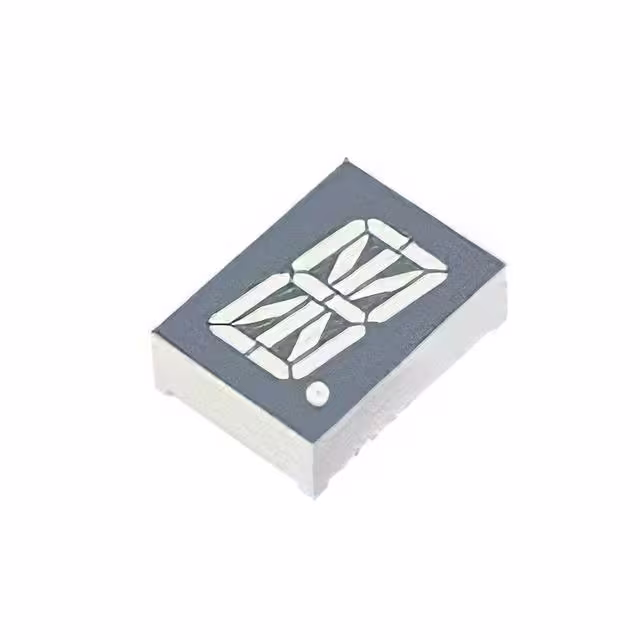

PSA08-12SURKWA.8" RED ALPHANUMERIC LED DISPLAY |
382 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm) | Bulk | Active | - | 1 | 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) | 0.80" (20.32mm) | 16-Segment, Alphanumeric | Common Anode | Red | 1.85V | 10mA | 71mcd | 645nm | 75mW |
|
|
ACDC02-41SURKWA-F01DISPLAY 7-SEG 0.2" DBL RED 20SMD |
171 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) | 0.20" (5.08mm) | 7-Segment | Common Cathode | Red | 1.95V | 20mA | 30mcd | 650nm | 75mW |
|
DA08-11GWADISPLAY 7SEG 0.8" DBL GRN 18DIP |
278 |
|
Datasheet |
- | 18-DIP (0.866", 22.00mm) | Tube | Active | - | 2 | 1.018" H x 1.409" W x 0.394" D (25.85mm x 35.80mm x 10.00mm) | 0.80" (20.32mm) | 7-Segment | Common Anode | Green | 2.2V | 20mA | 11mcd | 565nm | 62.5mW |
|
ACDA03-41SGWA-F01DISPLAY 7SEG 0.3" DBL GRN 20SMD |
307 |
|
Datasheet |
- | 20-SMD, No Lead | Tape & Reel (TR) | Active | - | 2 | 0.394" H x 0.583" W x 0.148" D (10.00mm x 14.80mm x 3.75mm) | 0.30" (7.62mm) | 7-Segment | Common Anode | Green | 2.2V | 20mA | 3.5mcd | 565nm | 62.5mW |
