LED Character and Numeric
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Display Format | Number of Characters | Size / Dimension | Digit/Alpha Size | Display Type | Common Pin | Color | Voltage - Forward (Vf) (Typ) | Current - Test | Millicandela Rating | Wavelength - Peak | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDS-C356RIDISPLAY 7-SEG 0.3" SGL RED 10DIP |
1,407 |
|
Datasheet |
- | 10-DIP (0.200", 5.08mm) | Bulk | Active | - | 1 | 0.500" H x 0.299" W x 0.240" D (12.70mm x 7.60mm x 6.10mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 1.7V | 10mA | 6mcd | 660nm | 105mW |
|
CDSA40RR1WDISPLAY 7SEG 0.40" SGL RED 14DIP |
1,670 |
|
Datasheet |
- | 14-DIP | Tray | Active | - | 1 | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.10mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 2V | 10mA | 18mcd | - | 72mW |
|
|
CDSC40A2WDISPLAY 7SEG 0.40" SGL AMBER 14D |
1,203 |
|
Datasheet |
- | 14-DIP | Tray | Active | - | 1 | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.10mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Amber | 2V | 20mA | 40mcd | - | 70mW |
|
|
CDSA40G2WF-1DISPLAY 7SEG 0.40" SGL GREEN 10D |
4,925 |
|
Datasheet |
- | 14-DIP | Tray | Active | - | 1 | 0.508" H x 0.379" W x 0.250" D (12.90mm x 9.63mm x 6.36mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Green | 2V | 10mA | 10mcd | - | 70mW |
|
|
CDSA30R2WDISPLAY 7SEG 0.30" SGL RED 10DIP |
2,680 |
|
Datasheet |
- | 10-DIP | Tray | Active | - | 1 | 0.500" H x 0.299" W x 0.240" D (12.70mm x 7.60mm x 6.10mm) | 0.30" (7.65mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 20mcd | - | 75mW |
|
|
EADCS030RA1DISP 7-SEG 0.30" SGL RED 14DIP |
2,586 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 10 Leads | Bulk | Active | - | 1 | 0.748" H x 0.398" W x 0.205" D (19.00mm x 10.10mm x 5.20mm) | 0.30" (7.62mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 11mcd | 632nm | 60mW |
|
|
EADSS020RA2DISPLAY 7-SEG 0.2" SGL RED 10SMD |
3,711 |
|
Datasheet |
- | 10-SMD, No Lead | Tape & Reel (TR) | Active | - | 1 | 0.398" H x 0.283" W x 0.098" D (10.10mm x 7.20mm x 2.50mm) | 0.20" (5.08mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 12.5mcd | 632nm | 60mW |
|
XDDGK14ADISPLAY 7SEG 0.56" SGL GRN 10DIP |
1,797 |
|
Datasheet |
- | 10-DIP (0.600", 15.24mm) | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 3V | 10mA | 72mcd | 515nm | 102.5mW |
|

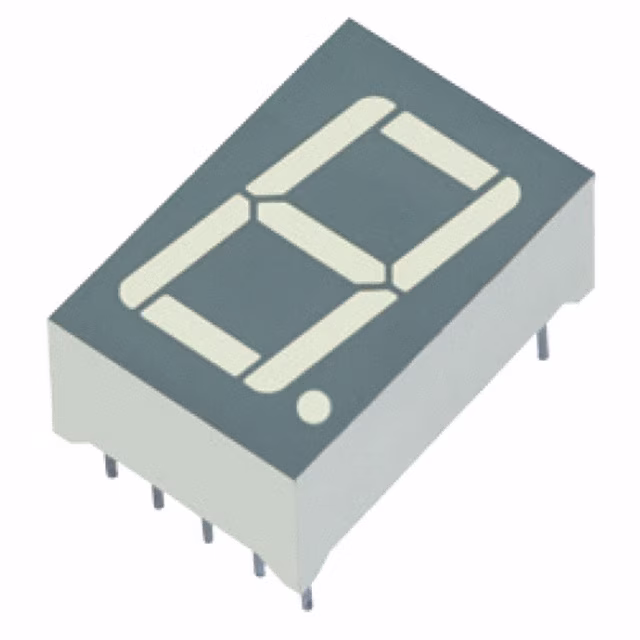

XDDGK14CDISPLAY 7SEG 0.56" SGL GRN 10DIP |
4,851 |
|
Datasheet |
- | 10-DIP (0.600", 15.24mm) | Tube | Active | - | 1 | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Cathode | Green | 3V | 10mA | 72mcd | 515nm | 102.5mW |
|
|
LTS-3401LWCDISPLAY 7-SEG 0.8" SGL RED 18DIP |
1,865 |
|
Datasheet |
- | 18-DIP (0.600", 15.24mm), 13 Leads | Tube | Active | - | 1 | 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Anode | Red | 1.7V | 5mA | 3.75mcd | 660nm | 75mW |
|
|
LTS-3403LJGDISPLAY 7SEG 0.8" SGL GRN 17DIP |
1,771 |
|
Datasheet |
- | 17-DIP (0.600", 15.24mm), 13 Leads | Tube | Active | - | 1 | 1.090" H x 0.783" W x 0.330" D (27.69mm x 19.90mm x 8.38mm) | 0.80" (20.32mm) | 7-Segment | Common Cathode | Green | 2.05V | 10mA | 0.9mcd | 571nm | 70mW |
|
|
SC43-11EWADISPLAY 7SEG 0.43" SGL RED 14DIP |
2,262 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm), 11 Leads | Tube | Active | - | 1 | 0.748" H x 0.496" W x 0.310" D (19.00mm x 12.60mm x 7.87mm) | 0.43" (10.92mm) | 7-Segment | Common Cathode | Red | 2V | 20mA | 6.9mcd | 627nm | 75mW |
|
|
SC05-11GWADISPLAY 7SEG 0.5" SGL GRN 18DIP |
4,998 |
|
Datasheet |
- | 18-DIP (0.500", 12.70mm) | Tube | Active | - | 1 | 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) | 0.50" (12.70mm) | 7-Segment | Common Cathode | Green | 2.2V | 20mA | 10mcd | 565nm | 62.5mW |
|
A521E G/WDISPLAY 7SEG 0.52" SGL RED 18DIP |
3,821 |
|
Datasheet |
- | 10-DIP (0.600", 15.24mm) | Bulk | Active | - | 1 | 0.689" H x 0.488" W x 0.285" D (17.50mm x 12.40mm x 7.25mm) | 0.52" (13.20mm) | 7-Segment | Common Anode | Orange-Red | 1.85V | 10mA | 8mcd | 630nm | 75mW |
|
|
FND328CDISP 7SEG 0.36" OV/FL RED 10DIP |
1,206 |
|
Datasheet |
- | 10-DIP (0.200", 5.08mm) | Bulk | Obsolete | - | +/-1 (overflow) | 0.551" H x 0.299" W x 0.335" D (14.00mm x 7.60mm x 8.50mm) | 0.36" (9.14mm) | 7-Segment | Common Cathode | Red | 1.8V | 20mA | 3mcd | 660nm | 100mW |
|

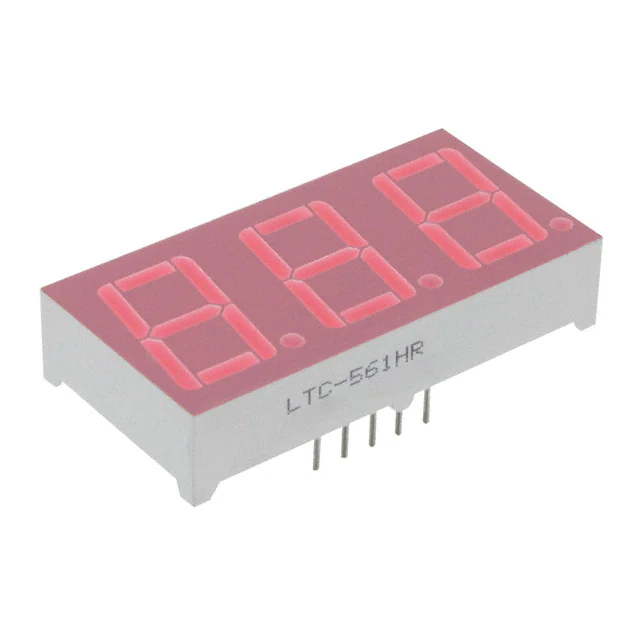

LTC-561HRDISPLAY 7SEG 0.56" DBL RED 12DIP |
2,035 |
|
Datasheet |
- | 12-DIP (0.600", 15.24mm) | Tube | Active | - | 2 | 0.750" H x 1.484" W x 0.315" D (19.05mm x 37.70mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Red | 2V | 20mA | 2.4mcd | 635nm | 75mW |
|
|
MAN6460EDISPLAY 7SEG 0.56" SGL GRN 10DIP |
1,557 |
|
Datasheet |
- | 10-DIP (0.600", 15.24mm) | Bulk | Obsolete | - | 1 | 0.750" H x 0.488" W x 0.315" D (19.05mm x 12.40mm x 8.00mm) | 0.56" (14.22mm) | 7-Segment | Common Anode | Green | 2.1V | 20mA | 2.2mcd | 570nm | 100mW |
|
SC04-11SRWADISPLAY 7-SEG 0.4" SGL RED 14DIP |
4,679 |
|
Datasheet |
- | 14-DIP (0.295", 7.50mm) | Tube | Obsolete | - | 1 | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | 0.40" (10.16mm) | 7-Segment | Common Cathode | Red | 1.85V | 20mA | 30mcd | 660nm | 75mW |
|
|
HDSP-G01EDISPLAY 7-SEG 0.4" DBL RED 16DIP |
1,728 |
|
Datasheet |
- | 16-DIP (0.500", 12.70mm) | Bulk | Active | - | 2 | 0.630" H x 0.795" W x 0.272" D (16.00mm x 20.20mm x 6.90mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 2.05V | 20mA | 2.6mcd | 635nm | 65mW |
|
|
HDSP-G01ADISPLAY 7-SEG 0.4" DBL RED 16DIP |
1,601 |
|
Datasheet |
- | 16-DIP (0.500", 12.70mm) | Bulk | Active | - | 2 | 0.630" H x 0.795" W x 0.272" D (16.00mm x 20.20mm x 6.90mm) | 0.40" (10.16mm) | 7-Segment | Common Anode | Red | 1.85V | 20mA | 6.5mcd | 660nm | 30mW |
