DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3312LFAN AXIAL 92X32MM 12VDC WIRE |
2,537 |
|
Datasheet |
3300 | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 33.0 CFM (0.924m³/min) | - | Ball | Tubeaxial | - | 29.0dB(A) | 1.4 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CSA, UL, VDE | 0.419 lb (190.06 g) |
|
|
MS8038M48B1-FHR-3241FAN AXIAL 80X38MM 48VDC |
1,860 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CFR1B12XFAN MIC BLOWER 48.5X23.5MM 12VDC |
1,064 |
|
Datasheet |
CFR1B | Tape & Box (TB) | Active | 12VDC | Rectangular - 48.5mm L x 23mm H | 23.50mm | - | 0.230 in H2O (57.3 Pa) | Ball | Micro Blower | Auto Restart, Locked Rotor Protection | 36.0dB(A) | 1.2 V | 11500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
_Series.jpg)
|
3412NLFAN AXIAL 92X25.4MM 12VDC WIRE |
4,234 |
|
Datasheet |
3400N | Bulk | Obsolete | 12VDC | Square - 92mm L x 92mm H | 25.40mm | 36.0 CFM (1.01m³/min) | - | Ball | Tubeaxial | - | 23.0dB(A) | 1.2 W | 1950 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | - | 0.31 lb (140.61 g) |
|
BFB1212VHFAN BLOWER 120X32MM 12VDC WIRE |
1,286 |
|
Datasheet |
BFB | Bulk | Not For New Designs | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 39.6 CFM (1.11m³/min) | 1.300 in H2O (323.6 Pa) | Ball | Blower | Locked Rotor Protection | 56.5dB(A) | 15 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.508 lb (230.42 g) |
|
|
FD1225B24W3-84-2RC1DC Axial Fan 120x120x25mm 24VDC |
1,605 |
|
Datasheet |
84 | Tape & Box (TB) | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 93.2 CFM (2.61m³/min) | 0.416 in H2O (103.6 Pa) | Ball | Tubeaxial | Auto Restart | 41.4dB(A) | 4.56 W | 2900 RPM | 2 Wire Leads With Connector | - | -4 ~ 158°F (-20 ~ 70°C) | CE, cUL, TUV, UL | - |
|
OD9238-48HBVXEFAN AXIAL 92X38MM 48VDC WIRE |
2,231 |
|
Datasheet |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 147.0 CFM (4.12m³/min) | 1.400 in H2O (348.7 Pa) | Ball | Tubeaxial | Auto Restart | 67.1dB(A) | 30 W | 7000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

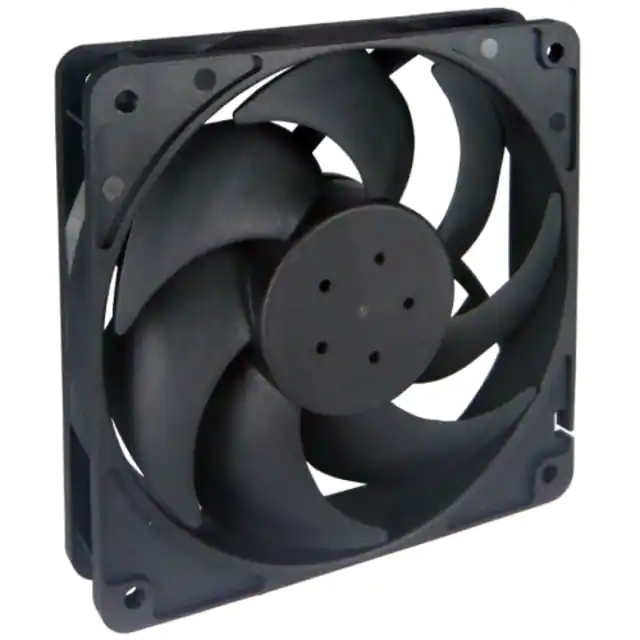

QYW12025012BH-5FAN AXIAL 120X25MM 12VDC WIRE |
4,562 |
|
Datasheet |
QYW12025 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 128.0 CFM (3.58m³/min) | 0.555 in H2O (138.2 Pa) | Ball | Tubeaxial | - | 51.4dB(A) | 6.6 W | 4400 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW12025012BL-12FAN AXIAL 120X25MM 12VDC WIRE |
4,291 |
|
Datasheet |
QYW12025 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 56.5 CFM (1.58m³/min) | 0.122 in H2O (30.4 Pa) | Ball | Tubeaxial | - | 29.3dB(A) | 1.56 W | 2000 RPM | 2 Wire Leads | - | - | - | - |
|
8312GFAN AXIAL 80X32MM 12VDC WIRE |
4,559 |
|
Datasheet |
8300 | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 32.0 CFM (0.896m³/min) | - | Sintec | Tubeaxial | - | 36.0dB(A) | 2.5 W | 3300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CE, CSA, UL, VDE | 0.375 lb (170.1 g) |
|
|
QYW12025024BH-5FAN AXIAL 120X25MM 24VDC WIRE |
2,770 |
|
Datasheet |
QYW12025 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 128.0 CFM (3.58m³/min) | 0.555 in H2O (138.2 Pa) | Ball | Tubeaxial | - | 51.4dB(A) | 7.68 W | 4400 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW12025024BM-12FAN AXIAL 120X25MM 24VDC WIRE |
3,977 |
|
Datasheet |
QYW12025 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 81.8 CFM (2.29m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | - | 39.1dB(A) | 3.12 W | 2800 RPM | 2 Wire Leads | - | - | - | - |
|
|
CFR3B5H-SFAN BLOWER CF 94.5X23.5MM 5VDC/T |
3,678 |
|
Datasheet |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 94.5mm L x 23mm H | 23.50mm | 8.0 CFM (0.224m³/min) | - | Ball | Blower, Cross Flow | - | 23.0dB | 1.1 A | 5500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
|
CFR3B5HFAN BLOWER CF 94.5X23.5MM 5VDC |
1,445 |
|
Datasheet |
CFR3B | Tape & Box (TB) | Active | 5VDC | Rectangular - 94.5mm L x 23mm H | 23.50mm | 8.0 CFM (0.224m³/min) | - | Ball | Blower, Cross Flow | - | 23.0dB | 1.1 A | 5500 RPM | - | - | -10°C ~ 70°C | CE, cUL, TUV, UL | - |
|
AFB1224ME-CFAN AXIAL 120X38MM 24VDC WIRE |
1,124 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 92.0 CFM (2.58m³/min) | 0.254 in H2O (63.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 3.36 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
|
QYW12025048BS-12FAN AXIAL 120X25MM 48VDC WIRE |
2,575 |
|
Datasheet |
QYW12025 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 181.0 CFM (5.07m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Tubeaxial | - | 60.5dB(A) | 19.2 W | 6000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW12025048BH-5FAN AXIAL 120X25MM 48VDC WIRE |
3,946 |
|
Datasheet |
QYW12025 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 128.0 CFM (3.58m³/min) | 0.555 in H2O (138.2 Pa) | Ball | Tubeaxial | - | 51.4dB(A) | 8.64 W | 4400 RPM | 2 Wire Leads | - | - | - | - |
|
AFB1224GHE-CFAN AXIAL 120X38MM 24VDC WIRE |
3,290 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 62.0dB(A) | 27.6 W | 5200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.728 lb (330.22 g) |
|
AFB1212LE-CFAN AXIAL 120X38MM 12VDC WIRE |
1,053 |
|
Datasheet |
AFB | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 71.3 CFM (2.00m³/min) | 0.166 in H2O (41.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 32.5dB(A) | 1.68 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
|
|
AFB1224VHE-CFAN AXIAL 120X38MM 24VDC WIRE |
1,131 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 148.3 CFM (4.15m³/min) | 0.602 in H2O (149.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 8.64 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.706 lb (320.24 g) |
