LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TPS61081EVM-147 |
6 |
|
Datasheet |
- | Box | Active | 250mA | 1 Non-Isolated Output | 12V | - | 2.5V ~ 6V | Board(s) | TPS61081 |
|

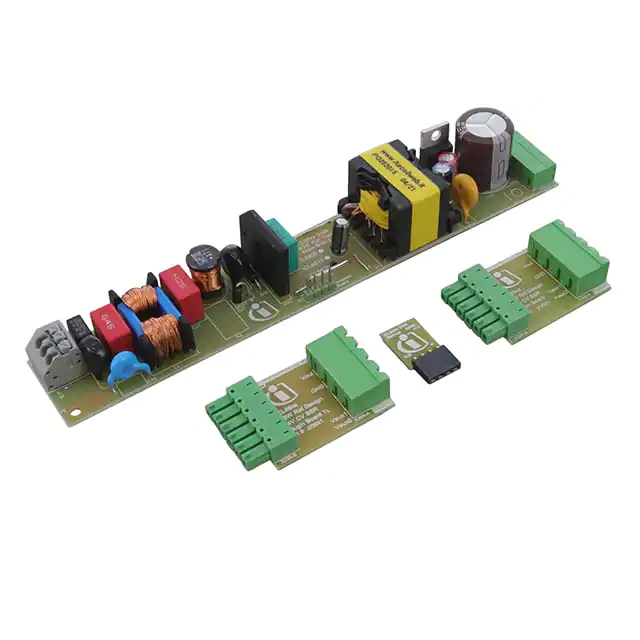

REFICL8820LED43WJTTOBO1 |
5 |
|
Datasheet |
- | Bulk | Active | - | 1 Isolated Output | 52V | Dimmable | 90 ~ 305 VAC | Board(s) | ICL8820 |
|

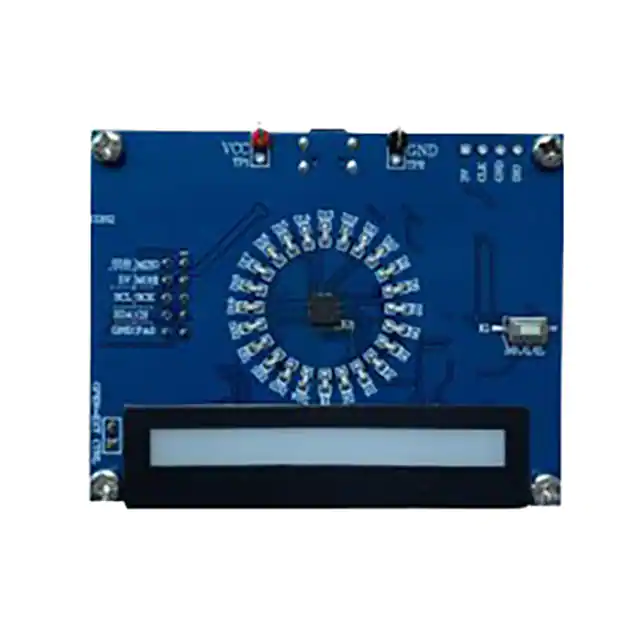

IS31FL3239-QFLS4-EB |
6 |
|
Datasheet |
- | Box | Active | 38mA | 24 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | IS31FL3239 |
|

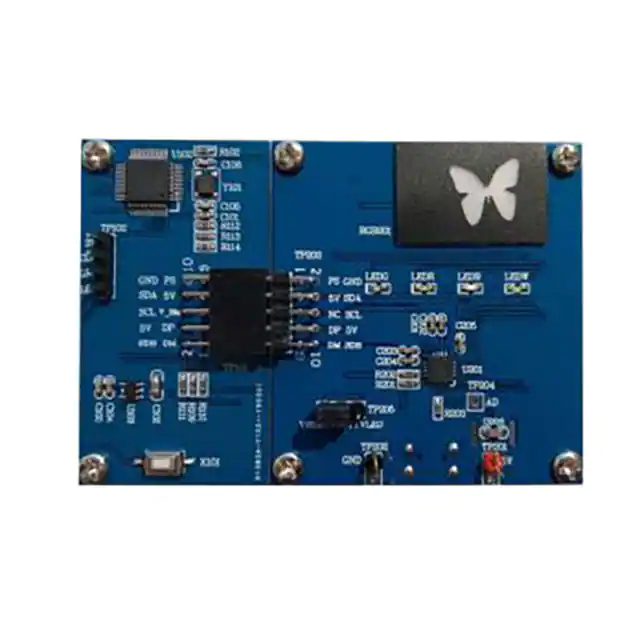

IS31FL3195-QFLS2-EB |
10 |
|
Datasheet |
- | Box | Active | 80mA | 4 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | IS31FL3195 |
|
MAX16833EVKIT+ |
8 |
|
Datasheet |
- | Box | Active | 1A | 1 Non-Isolated Output | 3V ~ 36V | Dimmable | 5V ~ 18V | Board(s) | MAX16833A/B |
|
|

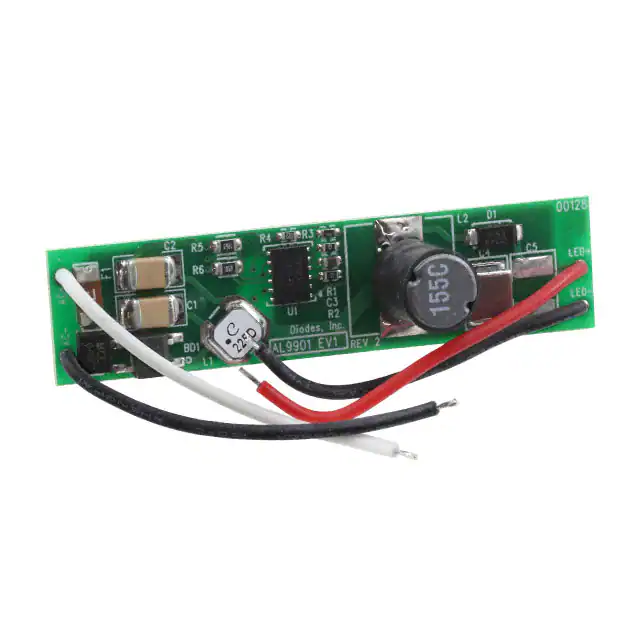

AL9901EV1 |
10 |
|
- |
- | Box | Active | 140mA | 1 Non-Isolated Output | 51V | Dimmable | 100 ~ 240 VAC | Board(s) | AL9901 |
|
|

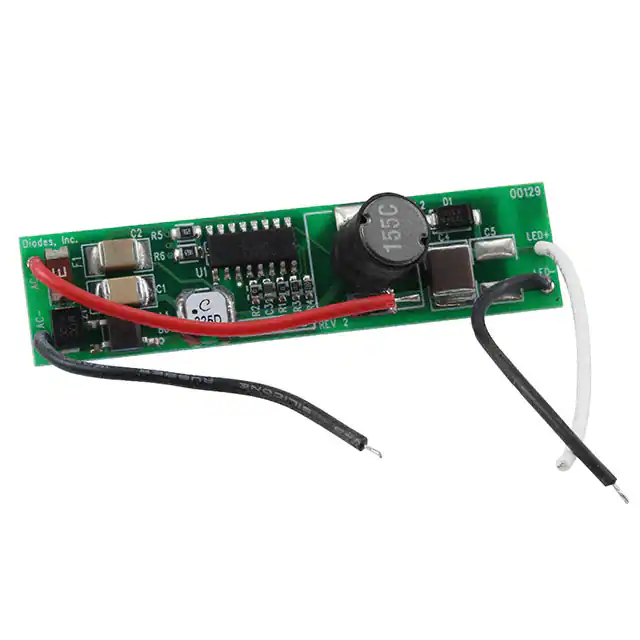

AL9901EV2 |
8 |
|
Datasheet |
- | Box | Active | 140mA | 1 Non-Isolated Output | 51V | Dimmable | 100 ~ 240 VAC | Board(s) | AL9901 |
|

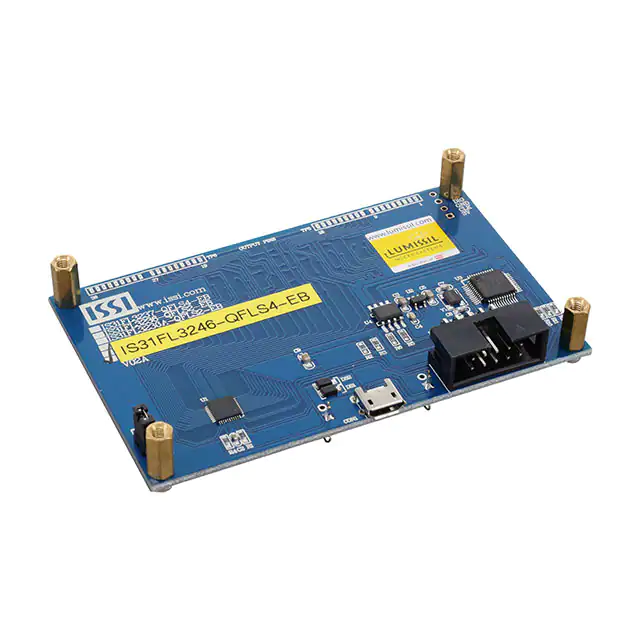

IS31FL3246-QFLS4-EB |
7 |
|
- |
- | Bulk | Active | 25mA | 36 Non-Isolated Outputs | - | Dimmable | 2.7V ~ 5.5V | Board(s) | IS31FL3246 |
|

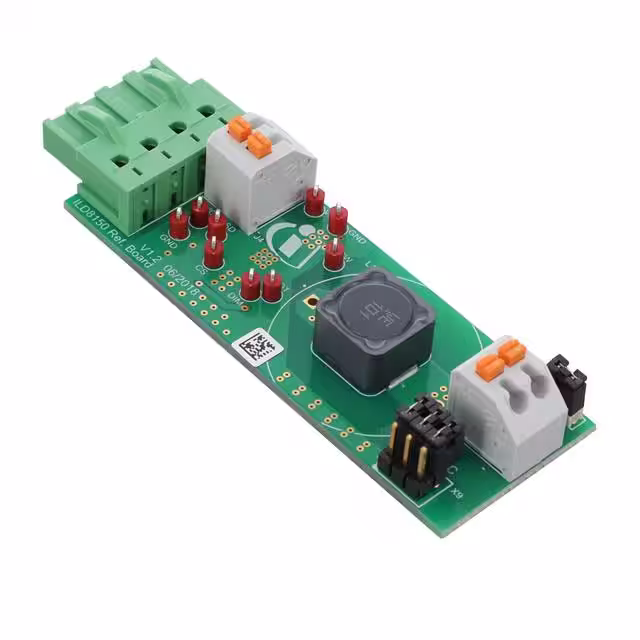

REFILD8150DC15ASMDTOBO1 |
5 |
|
Datasheet |
- | Bulk | Active | 1.5A | 1 Non-Isolated Output | - | Dimmable | 8V ~ 80V | Board(s) | ILD8150 |
|

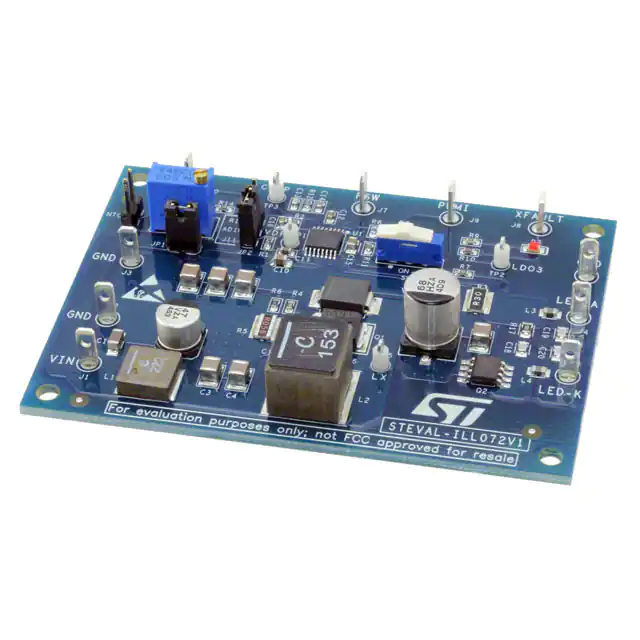

STEVAL-ILL072V1 |
6 |
|
Datasheet |
- | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 8V ~ 24V | Board(s) | ALED6001 |
|

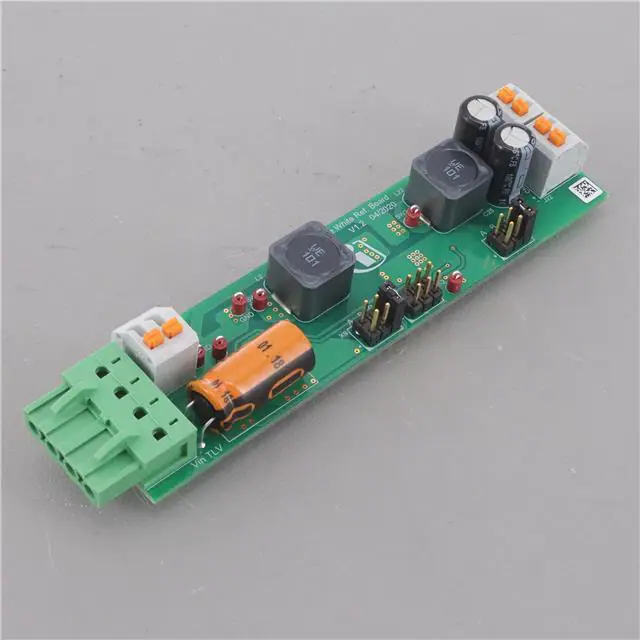

REFTWILD8150E60V1ATOBO1 |
6 |
|
Datasheet |
- | Bulk | Active | 1.05A | 2 Non-Isolated Outputs | 10V ~ 56V | Dimmable | 16V ~ 70V | Board(s) | ILD8150E |
|

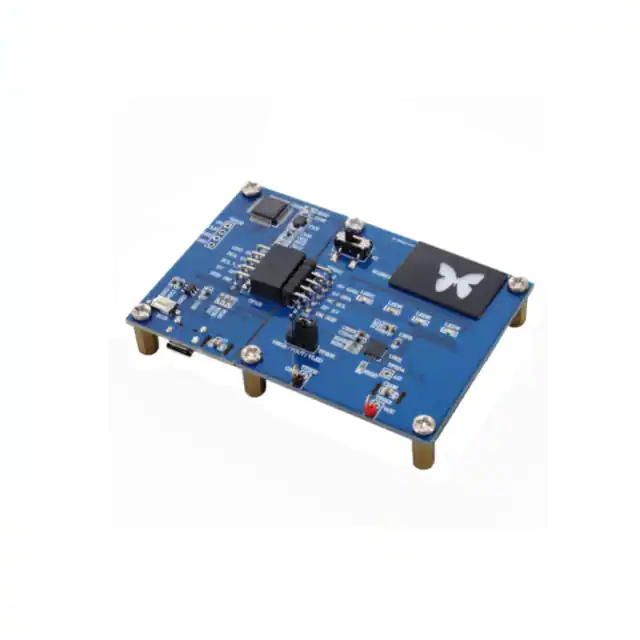

IS31FL3197-QFLS2-EB |
9 |
|
Datasheet |
- | Bulk | Active | 10mA | 4 Non-Isolated Outputs | - | Dimmable | 2V ~ 3.3V | Board(s) | IS31FL3197 |
|

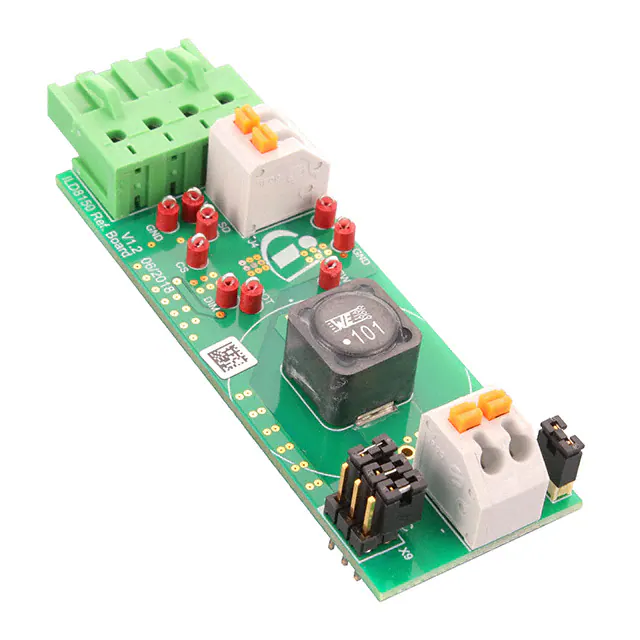

REFILD8150DC15ATOBO1 |
10 |
|
Datasheet |
- | Box | Active | 1.5A | 1 Non-Isolated Output | - | Dimmable | 8V ~ 80V | Board(s) | ILD8150 |
|

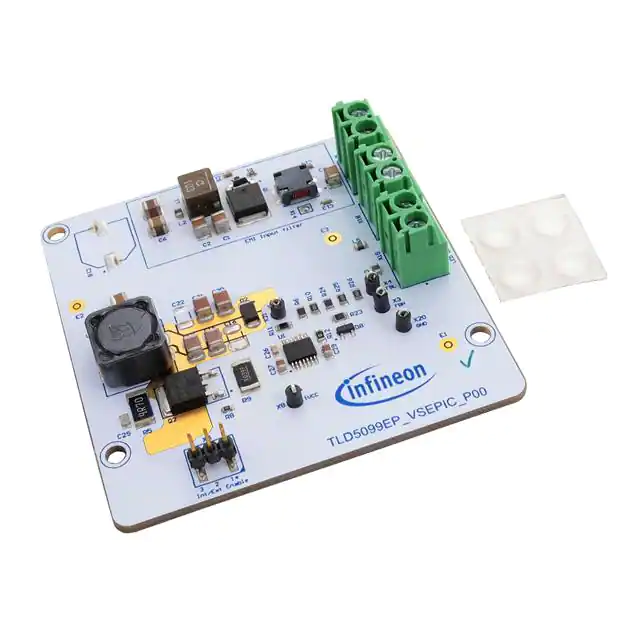

TLD5099EPVSEPICEVALTOBO1 |
5 |
|
Datasheet |
- | Bulk | Active | 1A | 1 Non-Isolated Output | 12V | - | 8V ~ 27V | Board(s) | TLD5099EP |
|
TLD5099EPB2GEVALKITTOBO1 |
7 |
|
Datasheet |
- | Bulk | Active | 350mA | 1 Non-Isolated Output | 33V ~ 47.4V | Dimmable | 8V ~ 27V | Board(s) | TLD5099EP |
|

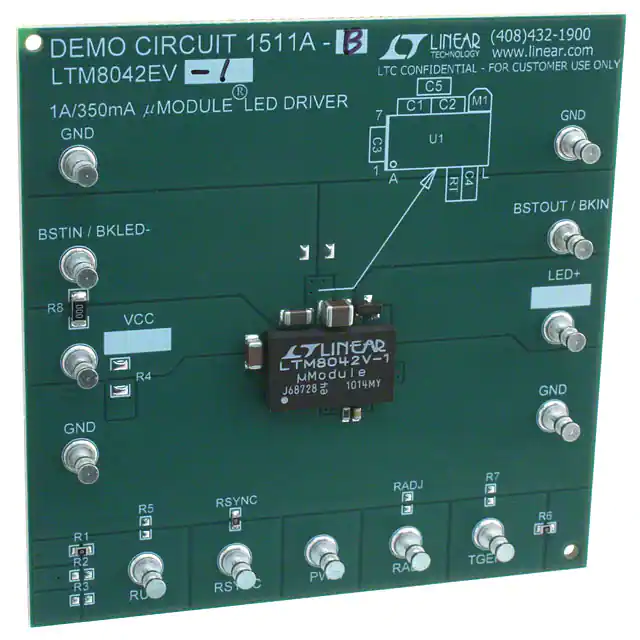

DC1511A-B |
9 |
|
Datasheet |
- | Box | Active | 350mA | 1 Non-Isolated Output | 36V | Dimmable | 3V ~ 30V | Board(s) | LTM8042-1 |
|

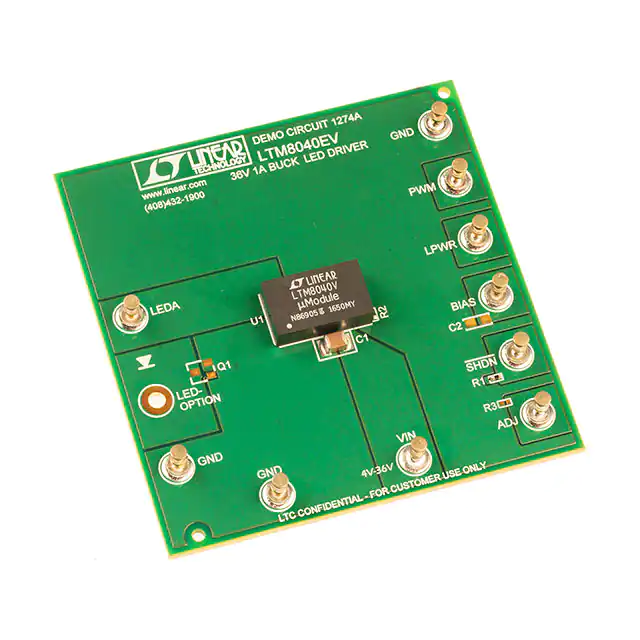

DC1274A |
9 |
|
Datasheet |
µModule® | Box | Active | 1A | 1 Non-Isolated Output | 13V | Dimmable | 4V ~ 36V | Board(s) | LTM8040 |
|

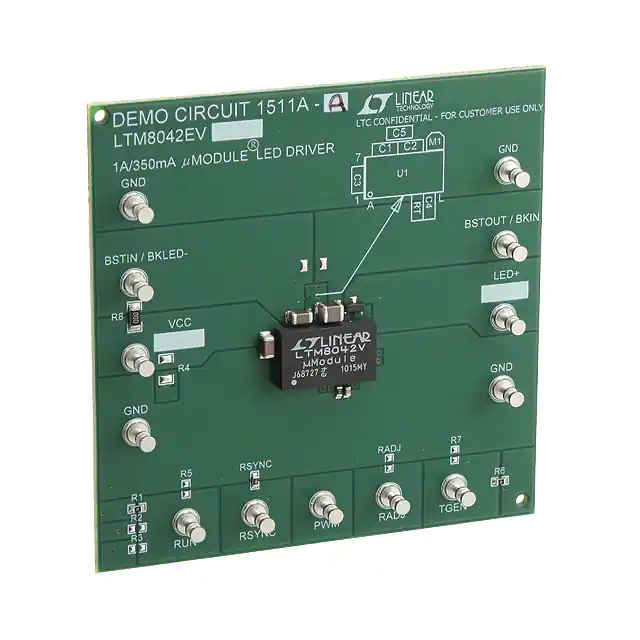

DC1511A-A |
5 |
|
Datasheet |
- | Box | Active | 1A | 1 Non-Isolated Output | 36V | Dimmable | 3V ~ 30V | Board(s) | LTM8042 |
|
|

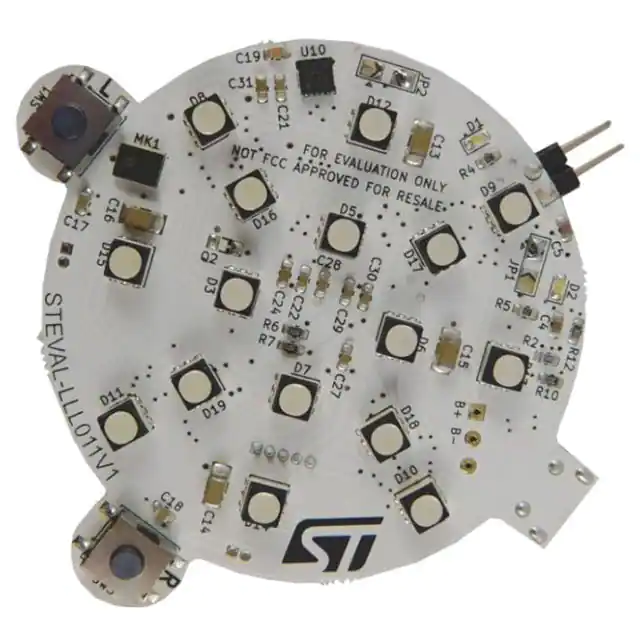

STEVAL-LLL011V1 |
10 |
|
Datasheet |
- | Bulk | Active | - | 12 Non-Isolated Outputs | - | - | - | Board(s) | LED1202 |
|
|

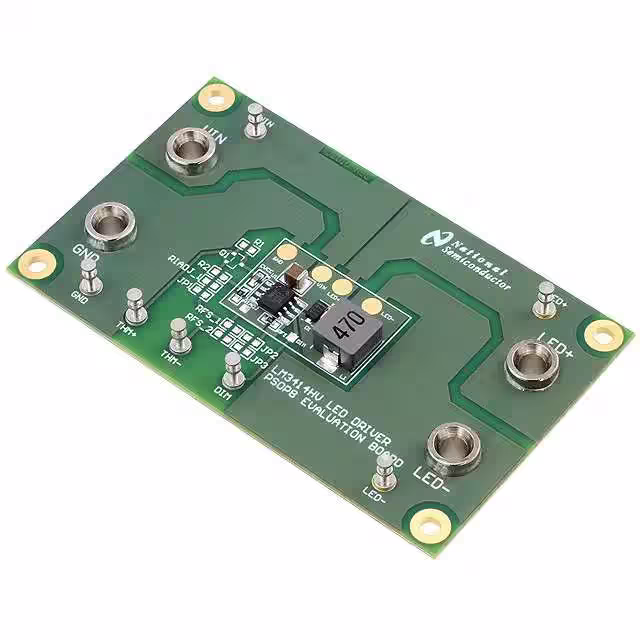

LM3414HVMREVAL/NOPB |
6 |
|
Datasheet |
- | Box | Active | 1A | 1 Non-Isolated Output | - | - | 4.5V ~ 65V | Board(s) | LM3414HVMR |
