DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-313EVAL BOARD FOR LNK6766 |
1,804 |
|
Datasheet |
LinkSwitch™-HP | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 30 W | 12V | 2.5A | 90 ~ 265 VAC | Flyback | 132kHz | Board(s) | LNK6766 |
|
|
RDK-723EVAL BOARD FOR LNK3209D |
2,417 |
|
Datasheet |
LinkSwitch™-TN2 | Box | Active | AC/DC Converter | 1 Non-Isolated Output | 9.6 W | 12V | 800mA | 85 ~ 265 VAC | Buck | 66kHz | Board(s) | LNK3209D |
|

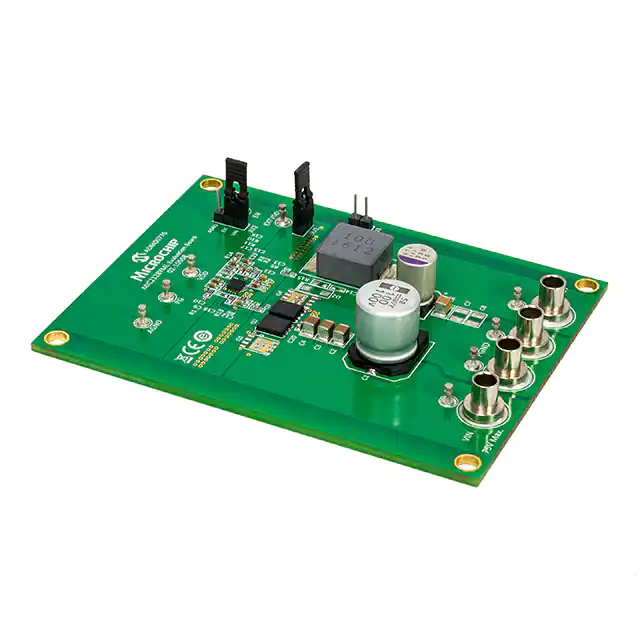

ADM00770EVAL BOARD FOR MIC2128 |
2,909 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 7V ~ 75V | Buck | 300kHz | Board(s) | MIC2128 |
|

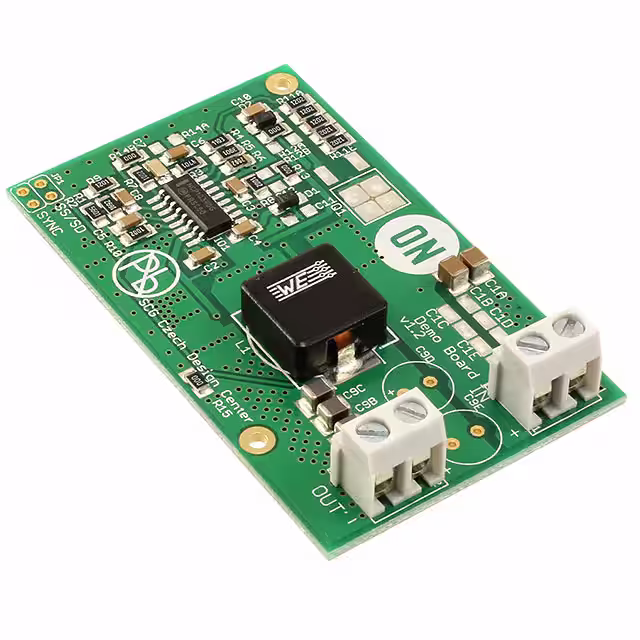

NCP1034BCK5VGEVBEVAL BOARD FOR NCP1034 |
3,051 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 38.4V ~ 57.6V | Buck | 500kHz | Board(s) | NCP1034 |
|

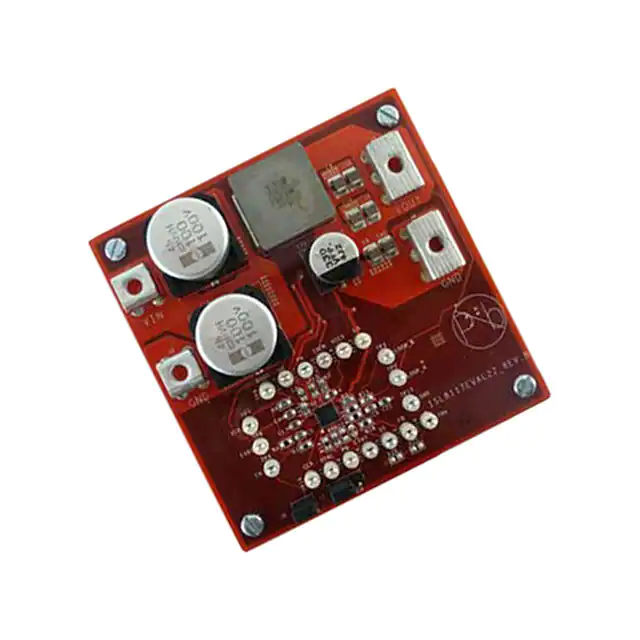

ISL8117EVAL2ZEVAL BOARD FOR ISL8117 |
3,007 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 60V | Buck | 300kHz | Board(s) | ISL8117 |
|
DC1708AEVAL BOARD FOR LTC3634 |
4,136 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | - | - | 3A | 3.6V ~ 15V | Buck | 1MHz | Board(s) | LTC3634 |
|

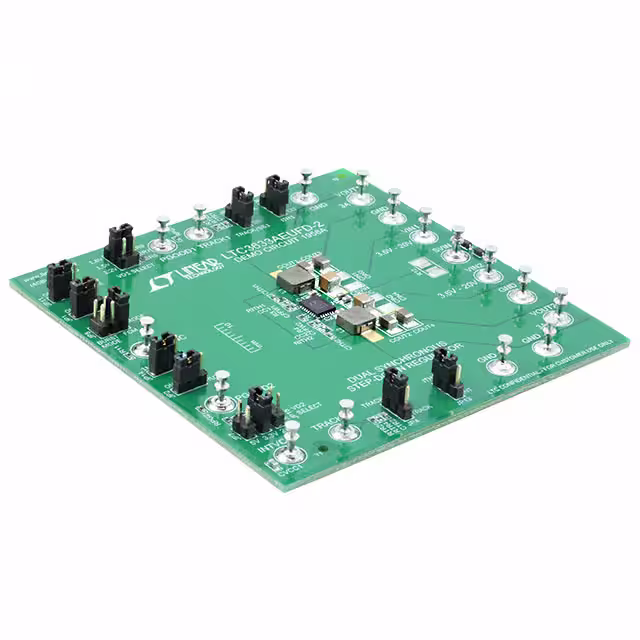

DC1958AEVAL BOARD FOR LTC3633A2 |
2,952 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 3.6V ~ 20V | Buck | - | Board(s) | LTC3633A-2 |
|

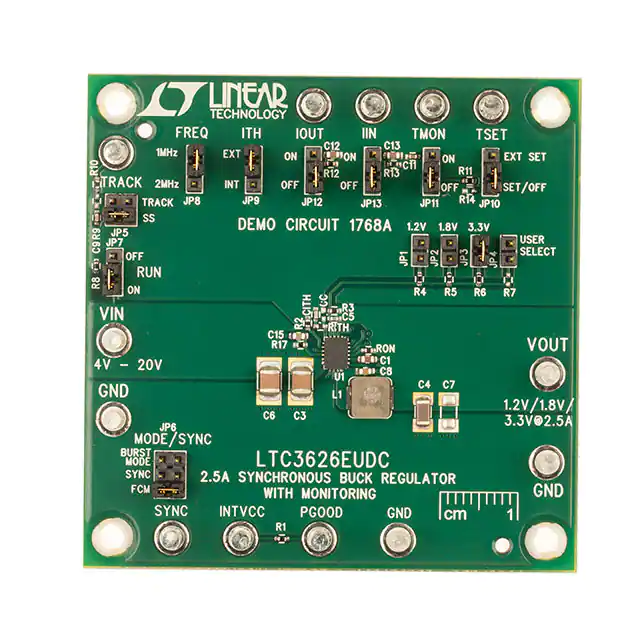

DC1768AEVAL BOARD FOR LTC3626 |
1,352 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 6V | 2.5A | 3.6V ~ 20V | Buck | 2MHz | Board(s) | LTC3626 |
|

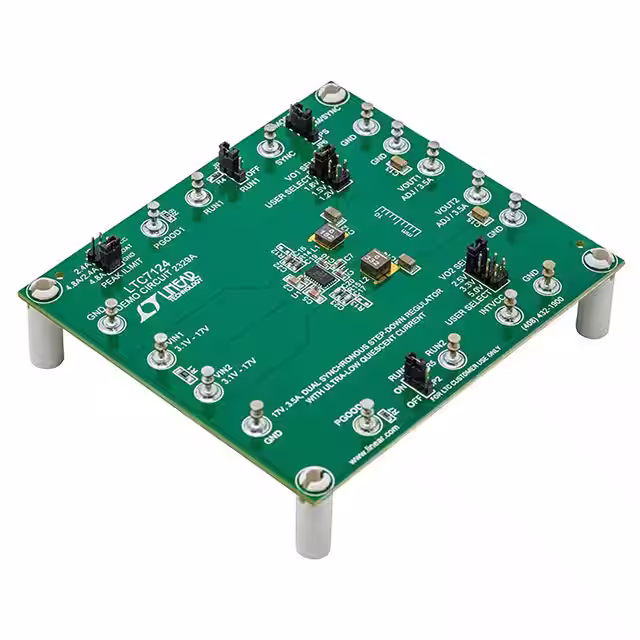

DC2329AEVAL BOARD FOR LTC7124 |
4,907 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 3.5A, 3.5A | 3.1V ~ 17V | Buck | 1MHz | Board(s) | LTC7124 |
|

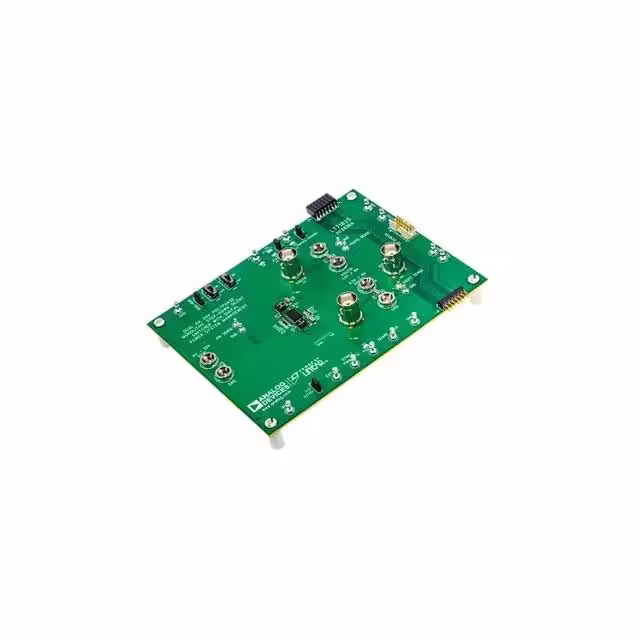

DC2836AEVAL BOARD FOR LT7182S |
3,478 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 9A, 9A | 4V ~ 20V | Buck | 1MHz | Board(s) | LT7182S |
|

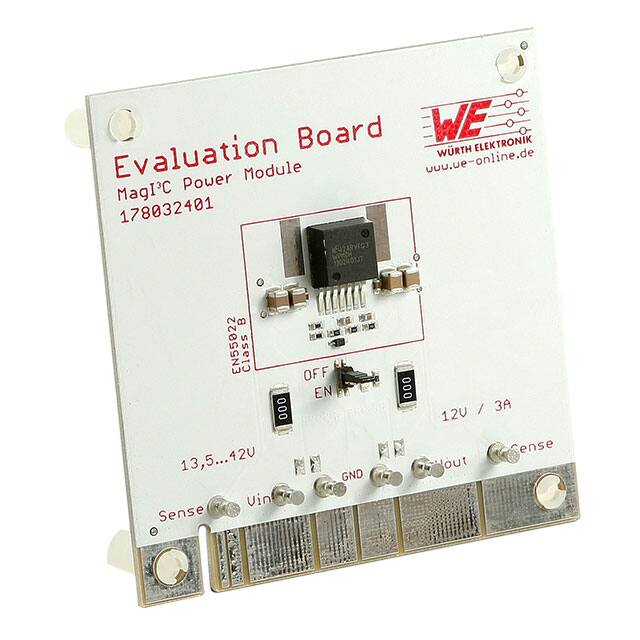

178032401EVAL BOARD FOR WPMDH1302401 |
4,883 |
|
Datasheet |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V ~ 24V | 3A | 6V ~ 42V | Buck | - | Board(s) | WPMDH1302401 |
|
BM2P151X-EVK-001EVAL BOARD FOR BM2P151X |
1,669 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 12 W | 15V | 800mA | 90 ~ 264 VAC | Buck | 65kHz | Board(s) | BM2P151X |
|
|
EVAL5BR4780BZ450MA1TOBO1EVAL BOARD FOR ICE5BR4780BZ |
4,910 |
|
Datasheet |
CoolSET™ | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 6.75 W | 15V | 450mA | 85 ~ 264 VAC | Buck | - | Board(s) | ICE5BR4780BZ |
|

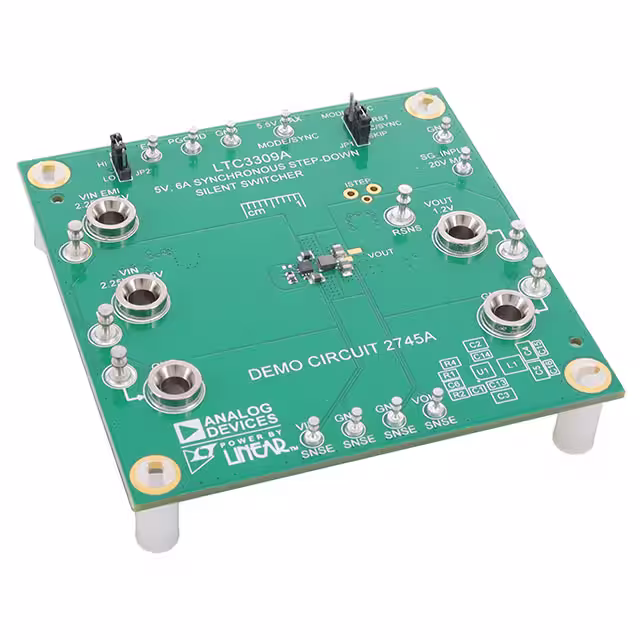

DC2745AEVAL BOARD FOR LTC3309A |
2,394 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3309A |
|
DC187A-AEVAL BOARD FOR LT1374 |
2,544 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 5.5V ~ 25V | Buck | 500kHz | Board(s) | LT1374 |
|
ISL85033DUALEVAL1ZEVAL BOARD FOR ISL85033 |
4,992 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 4.5V ~ 28V | Buck | 300kHz ~ 2MHz | Board(s) | ISL85033 |
|
DC992AEVAL BOARD FOR LTC3549 |
4,330 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 1.8V | 250mA | 1.6V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3549 |
|

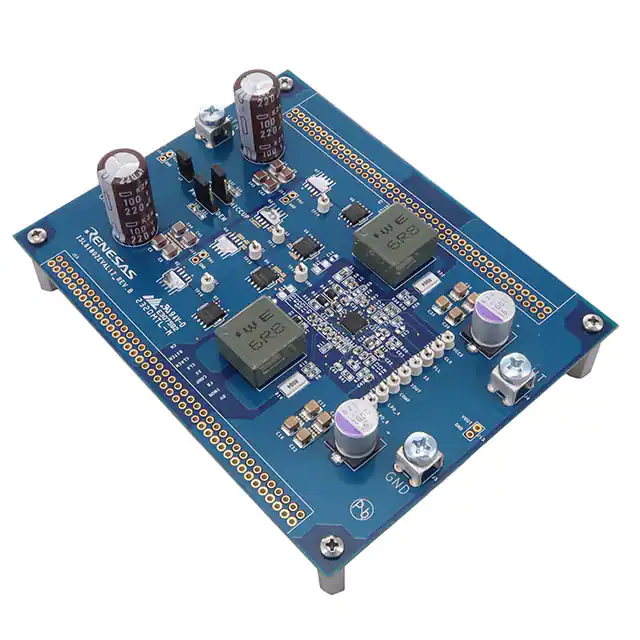

ISL81802EVAL1ZEVAL BOARD FOR ISL81802 |
1,671 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 80V | Buck | 200kHz | Board(s) | ISL81802 |
|

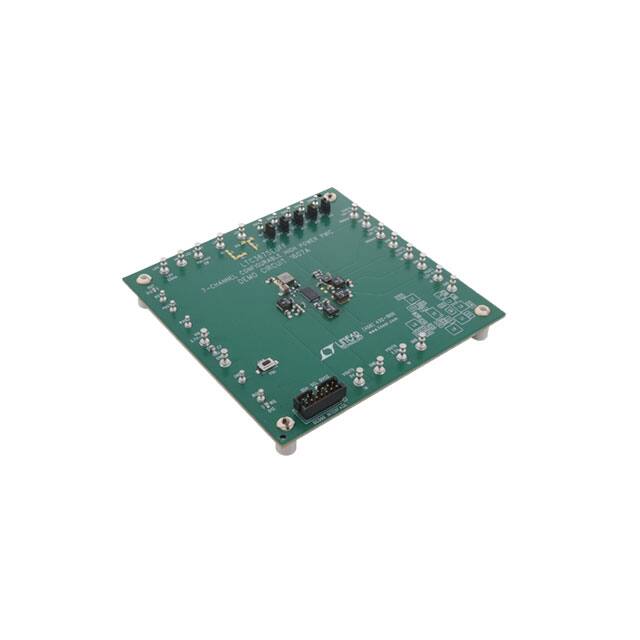

DC1607AEVAL BOARD FOR LTC3675 |
2,368 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down with LDO | 7 Non-Isolated Outputs | - | 1.2V, 1.2V, 1.6V, 1.8V, 2.5V, 3.3V, 5V | 1A, 1A, 1A, 1A, 500mA, 500mA, 25mA | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3675 |
|
BD7F100HFN-EVK-003EVAL BOARD FOR BD7F100 |
4,322 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 165mA, 165mA | 24V | Flyback | 400kHz | Board(s) | BD7F100 |
