Microprocessors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Core Processor | Number of Cores/Bus Width | Speed | Co-Processors/DSP | RAM Controllers | Graphics Acceleration | Display & Interface Controllers | Ethernet | SATA | USB | Voltage - I/O | Operating Temperature | Grade | Qualification | Security Features | Mounting Type | Supplier Device Package | Additional Interfaces |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

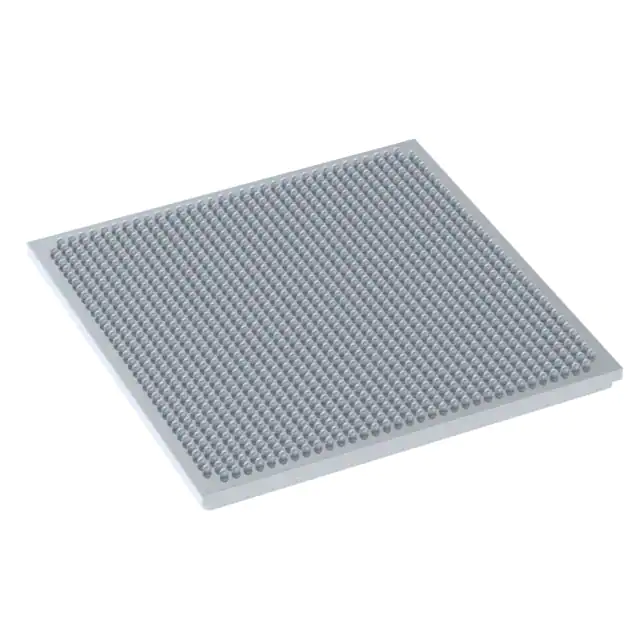

MIMX8QX6FVLFZACI.MX 8QUADXPLUS 21X21 |
2,202 |
|
- |
609-BFBGA | i.MX8Q | Tray | Active | ARM® Cortex®-A53, ARM® Cortex®-M4F | 3 Core, 64-Bit | 1.2GHz, 264MHz | Multimedia; NEON, Hi-Fi4 DSP | DDR3L SDRAM, LPDDR4 DRAM | Yes | LCD, LVDS, MIPI-CSI, MIPI-DSI | 10/100/1000Mbps (2) | - | USB 2.0 OTG + PHY (1), USB 3.0 OTG + PHY (1) | 1.8V, 2.5V, 3.3V | - | - | - | 3DES, A-HAB, ARM TZ, CAAM, DES, MD5, SHA, SNVS | Surface Mount | 609-FBGA (21x21) | CANbus, I2C, MMC/SD/SDIO, PCIe, QSPI, UART |
|

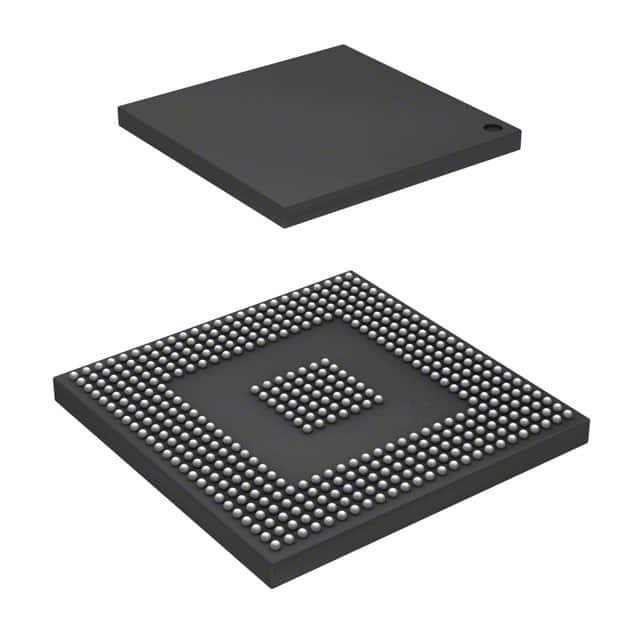

R8A77230C400BGIC MPU SUPERH 400MHZ 449FBGA |
2,034 |
|
- |
449-FBGA | SuperH® SH7780 | Tray | Obsolete | SH-4A | - | 400MHz | - | - | - | - | - | - | - | - | -20°C ~ 70°C (TA) | - | - | - | Surface Mount | 449-FBGA (21x21) | - |
|
LS1043AXE7KQAIC MPU QORIQ 1.0GHZ 621FCPBGA |
2,564 |
|
Datasheet |
621-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.0GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | -40°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 621-FCPBGA (21x21) | - |
|
KMPC866PVR133AIC MPU MPC8XX 133MHZ 357BGA |
1,720 |
|
Datasheet |
357-BBGA | MPC8xx | Box | Obsolete | MPC8xx | 1 Core, 32-Bit | 133MHz | Communications; CPM | DRAM | No | - | 10Mbps (4), 10/100Mbps (1) | - | - | 3.3V | 0°C ~ 95°C (TA) | - | - | - | Surface Mount | 357-PBGA (25x25) | HDLC/SDLC, I2C, IrDA, PCMCIA, SPI, TDM, UART/USART |
|
KMPC8349EVVAGDBIC MPU MPC83XX 400MHZ 672LBGA |
3,908 |
|
Datasheet |
672-LBGA | MPC83xx | Tray | Obsolete | PowerPC e300 | 1 Core, 32-Bit | 400MHz | Security; SEC | DDR, DDR2 | No | - | 10/100/1000Mbps (2) | - | USB 2.0 + PHY (2) | 1.8V, 2.5V, 3.3V | 0°C ~ 105°C (TA) | - | - | Cryptography, Random Number Generator | Surface Mount | 672-LBGA (35x35) | DUART, I2C, PCI, SPI |
|
T1014NSN7PQAIC MPU QORIQ T1 1.4GHZ 780FBGA |
1,381 |
|
Datasheet |
780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1.4GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
LS1043ASE7MNLAIC MPU QORIQ 1.2GHZ 621FCPBGA |
2,181 |
|
Datasheet |
621-FBGA, FCBGA | QorIQ® Layerscape | Tray | Active | ARM® Cortex®-A53 | 4 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | - | - | 1GbE (7) or 10GbE (1) & 1GbE (5) | SATA 6Gbps (1) | USB 3.0 (3) + PHY | - | 0°C ~ 105°C | - | - | Secure Boot, TrustZone® | Surface Mount | 621-FCPBGA (21x21) | - |
|
|
MCIMX6QP6AVT1ABRI.MX 6 SERIES 32-BIT MPU, QUAD A |
1,762 |
|
Datasheet |
624-FBGA, FCBGA | i.MX6DP | Tape & Reel (TR) | Active | ARM® Cortex®-A9 | 4 Core, 32-Bit | 1GHz | Multimedia; NEON™ SIMD | DDR3, DDR3L, LPDDR2 | Yes | HDMI, Keypad, LCD, LVDS, MIPI/CSI, MIPI/DSI | 10/100/1000Mbps (1) | SATA 3Gbps (1) | USB 2.0 + PHY (3), USB 2.0 OTG + PHY (1) | 1.8V, 2.5V, 2.8V, 3.3V | -40°C ~ 125°C (TJ) | - | - | ARM TZ, A-HAB, CAAM, CSU, SJC, SNVS | Surface Mount | 624-FCBGA (21x21) | CANbus, EBI/EMI, I2C, I2S, MMC/SD/SDIO, SAI, SPI, SSI, S/PDIF, UART |
|
T1022NSN7MQBIC MPU QORIQ T1 1.4GHZ 780FCPBGA |
1,268 |
|
Datasheet |
780-FBGA, FCBGA | QorIQ T1 | Bulk | Active | PowerPC e5500 | 2 Core, 64-Bit | 1.4GHz | - | DDR3L/4 | No | - | 1Gbps (5) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | 0°C ~ 105°C (TA) | - | - | - | Surface Mount | 780-FCPBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
S32G378ASAK1VUCRMICROPROCESSORS - MPU 4X CORTEX- |
4,055 |
|
Datasheet |
525-FBGA, FCBGA | S32G3 | Tape & Reel (TR) | Active | ARM® Cortex®-A53, ARM® Cortex®-M7 | 4 Core, 32/64-Bit | 400MHz, 1GHz | Multimedia; NEON | DDR3L, LPDDR4 | No | - | 2.5Gbps (3) | - | USB 2.0 OTG (1) | 1.8V, 3.3V | -40°C ~ 105°C (TA) | - | - | ARM TZ, Cryptography, Random Number Generator, Secure Fusebox, Secure Memory, XRDC | Surface Mount | 525-FCPBGA (19x19) | CANbus, DMA, FlexRay, I2C, LINbus, MMC/SD, PCIe, SPI, UART |
|
|
S32G378ASAK1VUCTMICROPROCESSORS - MPU 4X CORTEX- |
3,471 |
|
Datasheet |
525-FBGA, FCBGA | S32G3 | Tray | Active | ARM® Cortex®-A53, ARM® Cortex®-M7 | 4 Core, 32/64-Bit | 400MHz, 1GHz | Multimedia; NEON | DDR3L, LPDDR4 | No | - | 2.5Gbps (3) | - | USB 2.0 OTG (1) | 1.8V, 3.3V | -40°C ~ 105°C (TA) | - | - | ARM TZ, Cryptography, Random Number Generator, Secure Fusebox, Secure Memory, XRDC | Surface Mount | 525-FCPBGA (19x19) | CANbus, DMA, FlexRay, I2C, LINbus, MMC/SD, PCIe, SPI, UART |
|
KMPC8275CVRMIBAIC MPU MPC82XX 266MHZ PBGA516 |
4,192 |
|
Datasheet |
516-BBGA | MPC82xx | Box | Obsolete | PowerPC G2_LE | 1 Core, 32-Bit | 266MHz | Communications; RISC CPM | DRAM, SDRAM | No | - | 10/100Mbps (3) | - | USB 2.0 (1) | 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
|
|
KMPC8275CZQMIBAIC MPU MPC82XX 266MHZ PBGA516 |
1,547 |
|
Datasheet |
516-BBGA | MPC82xx | Box | Obsolete | PowerPC G2_LE | 1 Core, 32-Bit | 266MHz | Communications; RISC CPM | DRAM, SDRAM | No | - | 10/100Mbps (3) | - | USB 2.0 (1) | 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 516-PBGA (27x27) | I2C, SCC, SMC, SPI, UART, USART |
|
|
96MPP-2.3-3M10TIC MPU HASWELL 2.3GHZ 1150FCLGA |
2,159 |
|
Datasheet |
1155-LGA Module | Haswell | Tray | Discontinued at Digi-Key | Pentium G3320TE | 2 Core, 64-Bit | 2.3GHz | - | - | Yes | - | - | - | - | - | - | - | - | - | Surface Mount | 1150-FCLGA | - |
|
|
T1014NXE7MQAIC MPU QORIQ T1 1.2GHZ 780FBGA |
1,154 |
|
Datasheet |
780-FBGA | QorIQ T1 | Tray | Active | PowerPC e5500 | 1 Core, 64-Bit | 1.2GHz | - | DDR3L, DDR4 | No | - | GbE (8) | SATA 3Gbps (2) | USB 2.0 + PHY (2) | - | -40°C ~ 105°C (TA) | - | - | Boot Security, Cryptography, Secure Fusebox, Secure Debug, Tamper Detection, Volatile key Storage | Surface Mount | 780-FBGA (23x23) | I2C, MMC/SD, PCIe, SPI, UART |
|
|
R8A77430HA01BG#UAIC MPU RZ/G/G1M 1.5GHZ |
2,292 |
|
Datasheet |
- | RZ/G/G1M | Tray | Not For New Designs | ARM® Cortex®-A15 | - | 1.5GHz | - | - | - | - | - | - | - | - | -40°C ~ 85°C (TA) | - | - | - | - | - | - |
|
AM5746ABZXAIC MPU SITARA 1.5GHZ 760FCBGA |
3,001 |
|
Datasheet |
760-LFBGA, FCBGA | Sitara™ | Tray | Active | ARM® Cortex®-A15 | 1 Core, 32-Bit | 1.5GHz | ARM® Cortex®-M4, C66x | DDR3, DDR3L | Yes | HDMI, LCD, Video | GbE (2) | SATA 3Gbps (1) | USB 2.0 (2), USB 3.0 (2) | 1.35V, 1.5V, 1.8V, 3.3V | -40°C ~ 105°C (TJ) | - | - | ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC | Surface Mount | 760-FCBGA (23x23) | CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART |
|
MC68030RC16CIC MPU M680X0 166MHZ 128PGA |
3,128 |
|
Datasheet |
128-BPGA | M680x0 | Tray | Obsolete | 68030 | 1 Core, 32-Bit | 16MHz | - | - | No | - | - | - | - | 5.0V | 0°C ~ 70°C (TA) | - | - | - | Through Hole | 128-PGA (34.55x34.55) | SCI, SPI |
|
|
MC68030RC20CIC MPU M680X0 20MHZ 128PGA |
1,640 |
|
Datasheet |
128-BPGA | M680x0 | Tray | Obsolete | 68030 | 1 Core, 32-Bit | 20MHz | - | - | No | - | - | - | - | 5.0V | 0°C ~ 70°C (TA) | - | - | - | Through Hole | 128-PGA (34.55x34.55) | SCI, SPI |
|
KMPC8360CZUAJDGIC MPU MPC83XX 533MHZ 740TBGA |
1,814 |
|
Datasheet |
740-LBGA | MPC83xx | Bulk | Obsolete | PowerPC e300 | 1 Core, 32-Bit | 533MHz | Communications; QUICC Engine | DDR, DDR2 | No | - | 10/100/1000Mbps (1) | - | USB 1.x (1) | 1.8V, 2.5V, 3.3V | -40°C ~ 105°C (TA) | - | - | - | Surface Mount | 740-TBGA (37.5x37.5) | DUART, HDLC, I2C, PCI, SPI, UART |
