Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

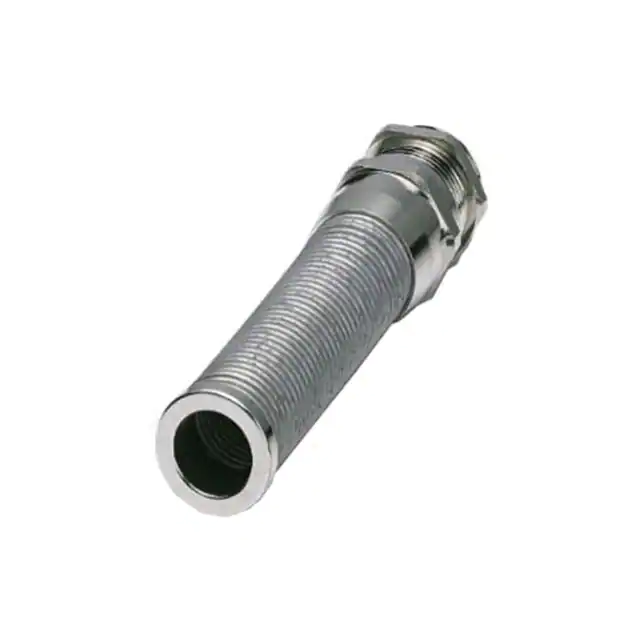

1415182CABLE GLAND 6-13MM M20 BRASS |
1,303 |
|
Datasheet |
Cable Gland | 0.236" (6.00mm) | 0.512" (13.00mm) | M20 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal, Strain Relief | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
96505.6CABLE GLAND M40 BRASS |
3,969 |
|
- |
Cable Gland - No Openings | - | - | M40x1.5 | - | - | - | Brass, Nickel Plated | Sealing Ring | Silver | - | - | |
|
|
920243CABLE GLAND M32 POLYAMIDE |
2,939 |
|
Datasheet |
Cable Gland | - | - | M32x1.5 | 0.591" (15.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Black | IP65 - Dust Tight, Water Resistant | -40°C ~ 110°C | |
|
|
22268.8CABLE GLND 23.88-29.97MM PG36 PC |
1,788 |
|
- |
Cable Gland | 0.940" (23.88mm) | 1.180" (29.97mm) | PG36 | 0.510" (12.95mm) | - | 1.850" (47.0mm) | Polycarbonate (PC) | - | Light Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
19082.6CABLE GLAND PG16 |
3,125 |
|
- |
Cable Gland | - | - | PG16 | - | - | - | - | - | - | - | - | |
|
|
19083.6CABLE GLAND PG16 |
1,262 |
|
- |
Cable Gland | - | - | PG16 | - | - | - | - | - | - | - | - | |
|
|
50.663 PA/GCABLE GLAND SET WITH LOCKNUT M63 |
3,935 |
|
Datasheet |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
15455Z20S19PG21/PG29 NPB INCREASED STRAIN |
2,887 |
|
- |
- | - | - | - | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
K102-1025-50-EXPERFECT PLUS EMC-EX-CABLE GLAND |
1,632 |
|
Datasheet |
Cable Gland | 0.394" (10.00mm) | 0.669" (16.99mm) | M25x1.5 | 0.512" (13.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
|
20396.5CABLE GLAND 13.97-18.03MM PG29 |
2,500 |
|
- |
Cable Gland | 0.550" (13.97mm) | 0.710" (18.03mm) | PG29 | 0.410" (10.41mm) | - | 1.460" (37.1mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20397.5CABLE GLAND 17.02-20.57MM PG29 |
2,604 |
|
- |
Cable Gland | 0.670" (17.02mm) | 0.810" (20.57mm) | PG29 | 0.410" (10.41mm) | - | 1.460" (37.1mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20398.5CABLE GLAND 20.07-24.89MM PG29 |
4,519 |
|
- |
Cable Gland | 0.790" (20.07mm) | 0.980" (24.89mm) | PG29 | 0.410" (10.41mm) | - | 1.460" (37.1mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20399.5CABLE GLAND 23.88-27.94MM PG29 |
1,784 |
|
- |
Cable Gland | 0.940" (23.88mm) | 1.100" (27.94mm) | PG29 | 0.410" (10.41mm) | - | 1.460" (37.1mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
20414.5CABLE GLAND 11.43-15.5MM PG29 |
2,365 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG29 | 0.410" (10.41mm) | - | 1.460" (37.1mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
95490.6CABLE GLAND 6.6-9.4MM M25 BRASS |
1,471 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.370" (9.40mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
95491.6CABLE GLAND 7.11-10.41MM M25 |
3,263 |
|
- |
Cable Gland | 0.280" (7.11mm) | 0.410" (10.41mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
95492.6CABLE GLAND 8.89-12.95MM M25 |
2,904 |
|
- |
Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
95493.6CABLE GLAND 11.43-15.5MM M25 |
3,728 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | M25x1.5 | 0.300" (7.62mm) | - | 0.980" (24.9mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
1300980137CABLE GRIP 12.7-15.88MM 1" NPT |
4,930 |
|
Datasheet |
Cable Grip | 0.500" (12.70mm) | 0.625" (15.88mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
1300980151CABLE GRIP 17.45-20.63MM 1" NPT |
4,465 |
|
Datasheet |
Cable Grip | 0.687" (17.45mm) | 0.812" (20.63mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - |
