Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15433M2X11CABLE GLAND PG21 |
3,107 |
|
- |
Cable Gland | - | - | PG21 | - | - | - | - | - | - | - | - | |
|
|
DB-8CABLE GRIP 6.35-9.53MM ALUMINUM |
3,146 |
|
Datasheet |
Cable Grip | 0.250" (6.35mm) | 0.375" (9.53mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
MC3CG-S2CABLE GRIP 12.5-14.5MM ZINC |
1,410 |
|
Datasheet |
Cable Grip | 0.492" (12.50mm) | 0.571" (14.50mm) | - | 0.492" (12.50mm) | - | - | Zinc, Nickel Plated | EMI Shielding Ring, Gasket, Nut, Seal | Gray | IP67 - Dust Tight, Waterproof | -20°C ~ 130°C | |
|

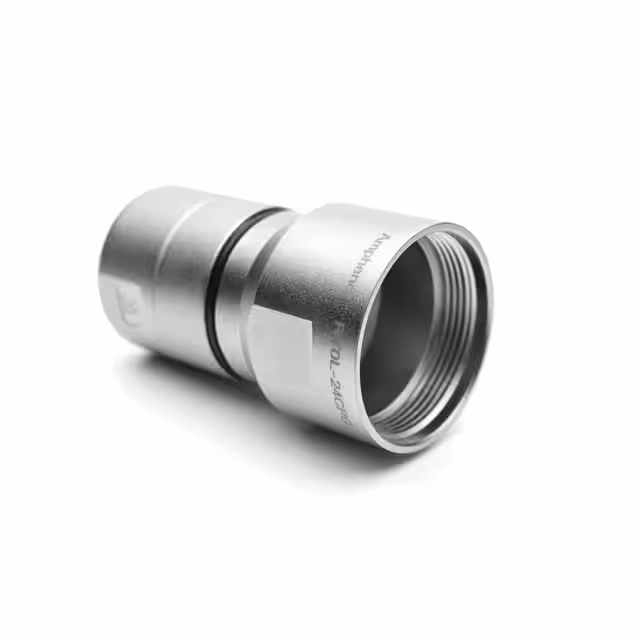

RT0L-24CPG-S1CABLE GRIP 20.5-22.5MM 1 7/16-18 |
4,611 |
|
Datasheet |
Cable Grip | 0.807" (20.50mm) | 0.886" (22.50mm) | 1 7/16-18 | - | - | - | Zinc, Nickel Plated | - | Silver | - | - | |
|
|
951902CABLE GLAND M25 |
1,824 |
|
- |
Cable Gland | - | - | M25 | - | - | - | - | - | Black | - | - | |
|
|
50.663 PA7035/GCABLE GLAND SET WITH LOCKNUT M63 |
2,290 |
|
Datasheet |
Cable Gland | 1.260" (32.00mm) | 1.654" (42.00mm) | M63x1.5 | 0.472" (12.00mm) | - | - | Polyamide (PA6), Nylon 6 | - | Gray | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
19042.6CABLE GLAND PG13.5 |
4,977 |
|
- |
Cable Gland | - | - | PG13.5 | - | - | - | - | - | - | - | - | |
|
|
19043.6CABLE GLAND PG13.5 |
1,017 |
|
- |
Cable Gland | - | - | PG13.5 | - | - | - | - | - | - | - | - | |
|
|
4308526CABLE GLAND 14-20MM M25 BRASS |
1,152 |
|
- |
Cable Gland | 0.551" (14.00mm) | 0.787" (20.00mm) | M25x1.5 | 0.315" (8.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | - | Silver | IP65 - Dust Tight, Water Resistant | -25°C ~ 100°C | |
|
|
4264021CABLE GLAND 13.5-18.01MM PG21 |
1,712 |
|
- |
Cable Gland | 0.531" (13.50mm) | 0.709" (18.01mm) | PG21 | 0.276" (7.00mm) | - | 1.114" (28.3mm) | Brass, Nickel Plated | Clamping Ring, Sealing Ring | Silver | IP68 - Dust Tight, Waterproof | -25°C ~ 120°C | |
|
|
26568.2M63X1.5 STRAIGHT THROUGH |
4,102 |
|
- |
- | - | - | M63x1.5 | - | - | - | - | - | - | - | - | |
|
|
26578.1M63X1.5 STRAIGHT THROUGH |
2,378 |
|
- |
- | - | - | M63x1.5 | - | - | - | - | - | - | - | - | |
|
|
DB-9716CABLE GRIP 7.93-11.1MM ALUMINUM |
2,581 |
|
Datasheet |
Cable Grip | 0.312" (7.93mm) | 0.437" (11.10mm) | - | - | 1/2" (12.7mm) | 0.875" (22.2mm), 7/8" | Aluminum | Compression Nut, Strain Relief | Silver | - | - | |
|
|
19110.6CABLE GLAND RA PG9 ZINC |
4,774 |
|
- |
Cable Gland - 90° | - | - | PG9 | - | - | - | Zinc, Galvanized | - | Silver | - | - | |
|
|
19111.6CABLE GLAND RA PG9 ZINC |
3,126 |
|
- |
Cable Gland - 90° | - | - | PG9 | - | - | - | Zinc, Galvanized | - | Silver | - | - | |
|
|
21523.6CABLE GLAND PG16 |
4,307 |
|
- |
Cable Gland | - | - | PG16 | - | - | - | - | - | - | - | - | |
|
|
5320337CABLE GLAND 14-37MM PG42 |
3,161 |
|
Datasheet |
Cable Gland | 0.551" (14.00mm) | 1.457" (37.00mm) | PG42 | 0.709" (18.01mm) | - | 2.559" (65.0mm) | Polyamide (PA6), Nylon 6 | - | Light Gray | IP68 - Dust Tight, Waterproof | -30°C ~ 120°C | |
|
|
95438.4CABLE GLAND 16-20.57MM M32 PVDF |
1,883 |
|
- |
Cable Gland | 0.630" (16.00mm) | 0.810" (20.57mm) | M32x1.5 | - | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
95439.4CABLE GLAND 19.81-23.88MM M32 |
2,932 |
|
- |
Cable Gland | 0.780" (19.81mm) | 0.940" (23.88mm) | M32x1.5 | - | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
1300980097CABLE GRIP 11.1-14.28MM 3/4" NPT |
4,014 |
|
Datasheet |
Cable Grip | 0.437" (11.10mm) | 0.562" (14.28mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | - | Black | - | - |
