Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300970215CABLE GRP RA 9.53-12.7MM 3/4"NPT |
4,243 |
|
Datasheet |
Cable Grip - 90° | 0.375" (9.53mm) | 0.500" (12.70mm) | 3/4" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|

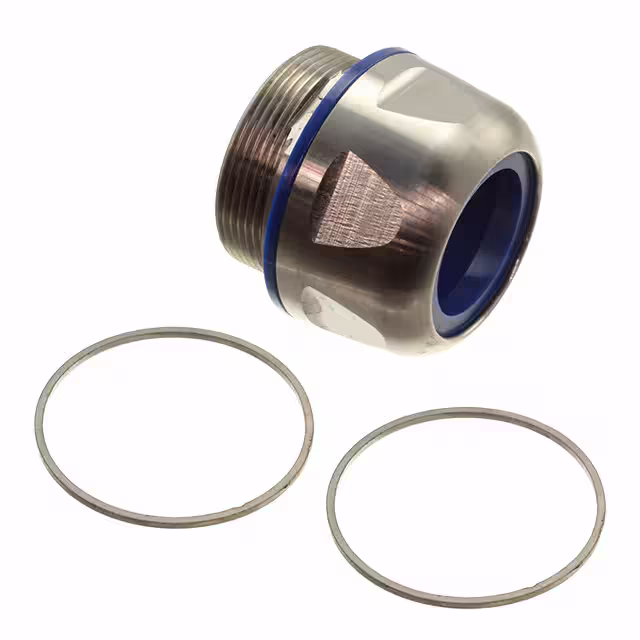

BG240VA26CPCABLE GLAND 23-26MM M40 S STEEL |
2,709 |
|
Datasheet |
Cable Gland | 0.906" (23.00mm) | 1.024" (26.00mm) | M40x1.5 | 0.433" (11.00mm) | - | 1.575" (40.0mm) | Stainless Steel | Sealing Ring | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
1301990080CABLE FEEDTHROUGH 14.86-18.03MM |
2,030 |
|
Datasheet |
Cable Feedthrough | 0.585" (14.86mm) | 0.710" (18.03mm) | - | - | - | - | Aluminum | Compression Nut, Grommet, O-Ring, Shield Ring, Stop Ring | Silver | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 150°C | |
|
|
1300970179CABLE GRIP 14.28-17.45MM 2" NPT |
4,419 |
|
Datasheet |
Cable Grip | 0.562" (14.28mm) | 0.687" (17.45mm) | 2" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|

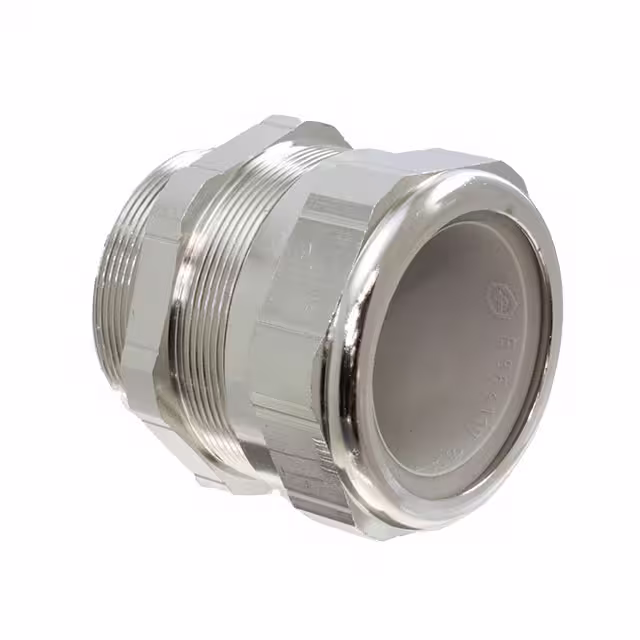

21563.6CABLE GLAND 36.83-40.89MM M50 |
2,870 |
|
- |
Cable Gland | 1.450" (36.83mm) | 1.610" (40.89mm) | M50x1.5 | 0.590" (14.99mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
1300970496PG612-F FEMALE STRAIGHT |
3,514 |
|
Datasheet |
- | - | - | - | - | - | - | - | - | - | - | - | |
|
|
1300990106CABLE GRIP RA 15.88-19.05MM 3/4" |
3,006 |
|
Datasheet |
Cable Grip - 90° | 0.625" (15.88mm) | 0.750" (19.05mm) | 3/4" NPT | 0.549" (13.94mm) | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet, Strain Relief | Gray | - | - | |
|

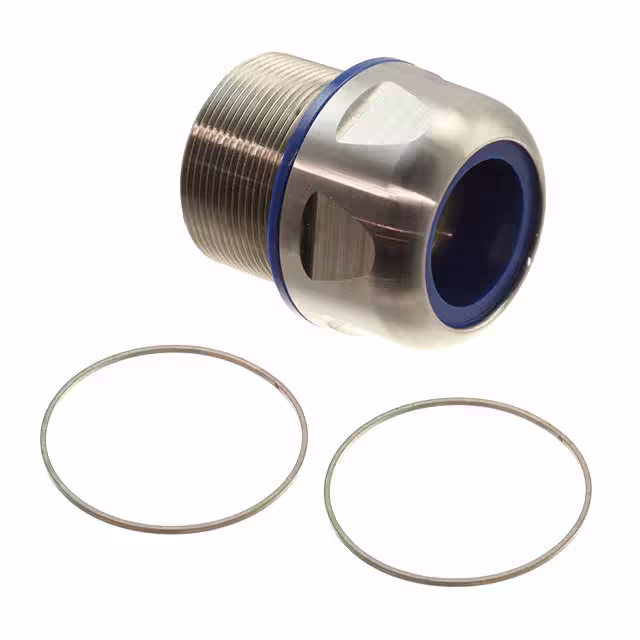

BG240VA26TRICPCABLE GLAND 23-26MM M40 BRASS |
2,792 |
|
Datasheet |
Cable Gland | 0.906" (23.00mm) | 1.024" (26.00mm) | M40x1.5 | 0.886" (22.50mm) | - | 1.575" (40.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|

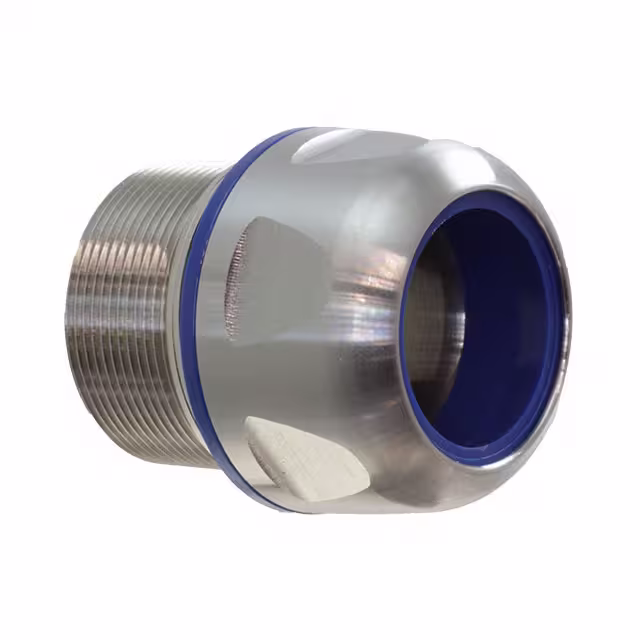

BG240VATRICPCABLE GLAND 26-29MM M40 BRASS |
3,215 |
|
Datasheet |
Cable Gland | 1.024" (26.00mm) | 1.142" (29.00mm) | M40x1.5 | 0.886" (22.50mm) | - | 1.575" (40.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68/IP69 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 85°C | |
|
EM2-50CABLE GLAND 22-32.03MM M50 BRASS |
2,759 |
|
Datasheet |
Cable Gland | 0.866" (22.00mm) | 1.261" (32.03mm) | M50x1.5 | 0.354" (9.00mm) | - | 1.969" (50.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
97032.6CABLE GLAND 44.96-51.05MM M63 |
3,768 |
|
Datasheet |
Cable Gland | 1.770" (44.96mm) | 2.010" (51.05mm) | M63x1.5 | 0.630" (16.00mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
MPS-48CABLE GLAND 34-44MM PG48 BRASS |
3,864 |
|
Datasheet |
Cable Gland | 1.339" (34.00mm) | 1.732" (44.00mm) | PG48 | 0.709" (18.01mm) | - | 2.335" (59.3mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EP2-48CABLE GLAND 34-44MM PG48 BRASS |
1,978 |
|
Datasheet |
Cable Gland | 1.339" (34.00mm) | 1.732" (44.00mm) | PG48 | 0.551" (14.00mm) | - | 2.338" (59.3mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
MMS-63CCABLE GLAND 37-53MM M63 BRASS |
1,125 |
|
Datasheet |
Cable Gland | 1.457" (37.00mm) | 2.087" (53.00mm) | M63x1.5 | 0.709" (18.01mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
EM2-63CABLE GLAND 34.04-44.04MM M63 |
3,467 |
|
Datasheet |
Cable Gland | 1.340" (34.04mm) | 1.734" (44.04mm) | M63x1.5 | 0.551" (14.00mm) | - | 2.480" (63.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
EP4-36CABLE GLAND 22-32MM PG36 BRASS |
3,145 |
|
Datasheet |
Cable Gland | 0.866" (22.00mm) | 1.260" (32.00mm) | PG36 | 0.354" (9.00mm) | - | 1.850" (47.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1300980253CABLE GRP 20.57-23.88MM 3/4" NPT |
4,775 |
|
Datasheet |
Cable Grip | 0.810" (20.57mm) | 0.940" (23.88mm) | 3/4" NPT | - | - | - | Stainless Steel | Compression Ring | Silver | - | - | |
|
|
1300980249CABLE GRIP 12.7-15.88MM 3/4" NPT |
1,856 |
|
Datasheet |
Cable Grip | 0.500" (12.70mm) | 0.625" (15.88mm) | 3/4" NPT | - | - | - | Stainless Steel | Compression Ring | Silver | - | - | |
|
|
1300980255CABLE GRIP 25.4-27.94MM 3/4" NPT |
1,956 |
|
Datasheet |
Cable Grip | 1.000" (25.40mm) | 1.100" (27.94mm) | 3/4" NPT | - | - | - | Stainless Steel | Compression Ring | Silver | - | - | |
|
|
1300970239CABLE GRP 33.33-36.5MM 1 1/2"NPT |
3,213 |
|
Datasheet |
Cable Grip | 1.312" (33.33mm) | 1.437" (36.50mm) | 1 1/2" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - |
