Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2435140000CABLE GLAND 5-10MM M16 BRASS |
4,272 |
|
Datasheet |
Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
1300980034CABLE GRIP 9.53-11.1MM 3/8" NPT |
4,306 |
|
Datasheet |
Cable Grip | 0.375" (9.53mm) | 0.437" (11.10mm) | 3/8" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
7387302CABLE GLAND 15.49-24MM 1 1/4" |
2,254 |
|
- |
Cable Gland | 0.610" (15.49mm) | 0.945" (24.00mm) | 1 1/4" NPT | 0.630" (16.00mm) | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 105°C | |
|
PPG-36CABLE GLAND 22-32.03MM PG36 |
4,957 |
|
Datasheet |
Cable Gland | 0.866" (22.00mm) | 1.261" (32.03mm) | PG36 | 0.512" (13.00mm) | - | 1.850" (47.0mm) | Polyamide (PA6), Nylon 6 | Locknut | Gray | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
2435160000CABLE GLAND 7.5-14MM M20 BRASS |
1,702 |
|
Datasheet |
Cable Gland | 0.295" (7.50mm) | 0.551" (14.00mm) | M20 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
M5020CABLE GRIP 11.13-12.7MM 1/2" NPT |
1,818 |
|
Datasheet |
Cable Grip | 0.438" (11.13mm) | 0.500" (12.70mm) | 1/2" NPT | 0.560" (14.22mm) | - | 0.880" (22.4mm) | Aluminum | - | Silver | IP67 - Dust Tight, Waterproof | -40°C ~ 121°C | |
|

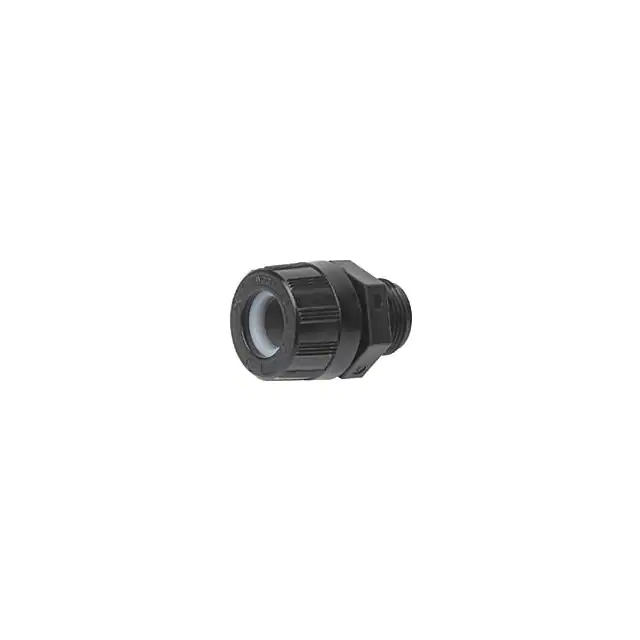

1300980042CABLE GRIP 1.58-6.35MM 1/2" NPT |
2,374 |
|
Datasheet |
Cable Grip | 0.062" (1.58mm) | 0.250" (6.35mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Black | - | - | |
|
1300980038CABLE GRIP 1.58-3.18MM 1/2" NPT |
1,954 |
|
Datasheet |
Cable Grip | 0.062" (1.58mm) | 0.125" (3.18mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
1300980098CABLE GRIP 9.53-15.88MM 3/4" NPT |
1,647 |
|
Datasheet |
Cable Grip | 0.375" (9.53mm) | 0.625" (15.88mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Black | - | - | |
|
|
1427NCGM50BCABLE GRIP 32-38MM M50 NYLON |
1,376 |
|
Datasheet |
Cable Grip | 1.260" (32.00mm) | 1.496" (38.00mm) | M50x1.5 | 0.512" (13.00mm) | - | 1.969" (50.0mm) | Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4, 4X, 6, 12, 13 | -40°C ~ 100°C | |
|
|
1427NCGM50GCABLE GRIP 32-38MM M50 NYLON |
4,938 |
|
Datasheet |
Cable Grip | 1.260" (32.00mm) | 1.496" (38.00mm) | M50x1.5 | 0.512" (13.00mm) | - | 1.969" (50.0mm) | Nylon | - | Gray | IP68 - Dust Tight, Waterproof; NEMA 4, 4X, 6, 12, 13 | -40°C ~ 100°C | |
|
|
FNB-1/2RCABLE GLAND 5-9MM 1/2" NPT |
2,605 |
|
Datasheet |
Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | 1/2" NPT | 0.591" (15.00mm) | - | 0.840" (21.3mm) | Polyamide (PA6), Nylon 6 | - | Black | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
1300980086CABLE GRIP 12.7-14.28MM 1/2" NPT |
3,564 |
|
Datasheet |
Cable Grip | 0.500" (12.70mm) | 0.562" (14.28mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
1300980092CABLE GRP 14.28-15.88MM 1/2" NPT |
2,006 |
|
Datasheet |
Cable Grip | 0.562" (14.28mm) | 0.625" (15.88mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
96575.1CABLE FEEDTHROUGH 25.91-32MM M40 |
4,103 |
|
Datasheet |
Cable Feedthrough | 1.020" (25.91mm) | 1.260" (32.00mm) | M40x1.5 | 0.310" (7.87mm) | - | 1.570" (39.9mm) | Polyamide (PA), Nylon | - | Black | IP68 - Dust Tight, Waterproof; NEMA 4X | -20°C ~ 100°C | |
|
|
1300980189CABLE GRIP 5.54-16.26MM 1/2" NPT |
2,339 |
|
Datasheet |
Cable Grip, Oval Hole | 0.218" (5.54mm) | 0.640" (16.26mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
MMS-25CCABLE GLAND 13-18.01MM M25 BRASS |
3,841 |
|
Datasheet |
Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | M25x1.5 | 0.472" (12.00mm) | - | 0.984" (25.0mm) | Brass, Nickel Plated | O-Ring | Silver | IP68 - Dust Tight, Waterproof | -20°C ~ 100°C | |
|
|
WLP-M06-4.5MM-LCCABLE GLAND 4.2-4.8MM M06 |
100 |
|
Datasheet |
Cable Gland | 0.165" (4.20mm) | 0.189" (4.80mm) | M06 | 0.394" (10.00mm) | - | 0.244" (6.2mm) | Aluminum | Nut, O-Ring, Plug, Seal | Black | - | - | |
|
|
WLP-M10-5.5MM-LCCABLE GLAND 5.2-5.8MM M10 |
4,391 |
|
Datasheet |
Cable Gland | 0.205" (5.20mm) | 0.228" (5.80mm) | M10 | 0.787" (20.00mm) | - | 0.394" (10.2mm) | Aluminum | Nut, O-Ring, Plug, Seal | Black | - | - | |
|
|
WLP-M06-4.5MM-HCCABLE GLAND 3.7-4.3MM M06 |
2,893 |
|
Datasheet |
Cable Gland | 0.146" (3.70mm) | 0.169" (4.30mm) | M06 | 0.394" (10.00mm) | - | 0.244" (6.2mm) | Aluminum | Nut, O-Ring, Plug, Seal | Black | - | - |
