AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS8-500FATX-GBAC/DC CNVRTR 3.3V 5V +/-12V 500W |
4,739 |
|
Datasheet |
80 Plus | Box | Active | Enclosed | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 14 A | 16 A | 41 A | 300 mA | - | - | 500W | ITE (Commercial) | - | 0°C ~ 50°C | 80 Plus® Gold, Standby Output, Universal Input | Rack Mount | 5.90" L x 3.20" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
|

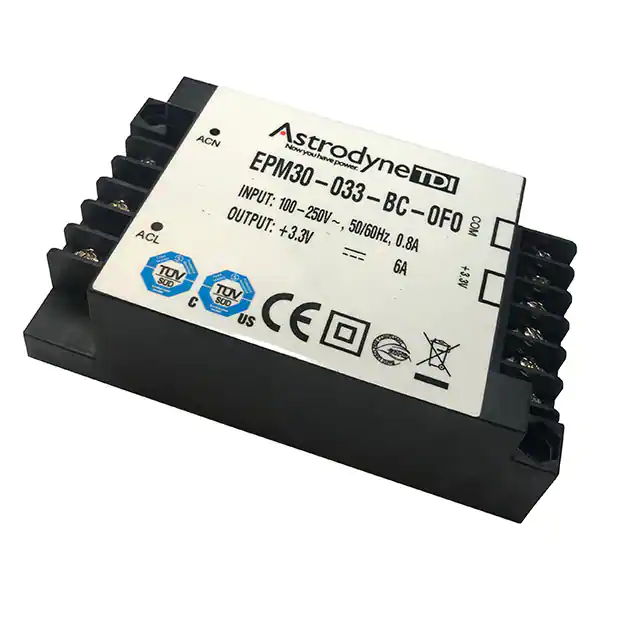

EPM30-120-BC-0F0AC/DC CONVERTER 12V 30W |
2,698 |
|
Datasheet |
EPM30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
ASM201-180-BNH-PF1AC/DC CONVERTER 18V 139W |
2,272 |
|
Datasheet |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 18V | - | - | - | - | - | 7.7 A | - | - | - | - | - | 139W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
ASM550-360-BET-S00AC/DC CONVERTER 36V 551W |
2,269 |
|
Datasheet |
ASM550 (550W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC, 110 ~ 380 VDC | 36V | - | - | - | - | - | 15.3 A | - | - | - | - | - | 551W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.36" W x 1.58" H (177.8mm x 110.7mm x 40.1mm) |
|

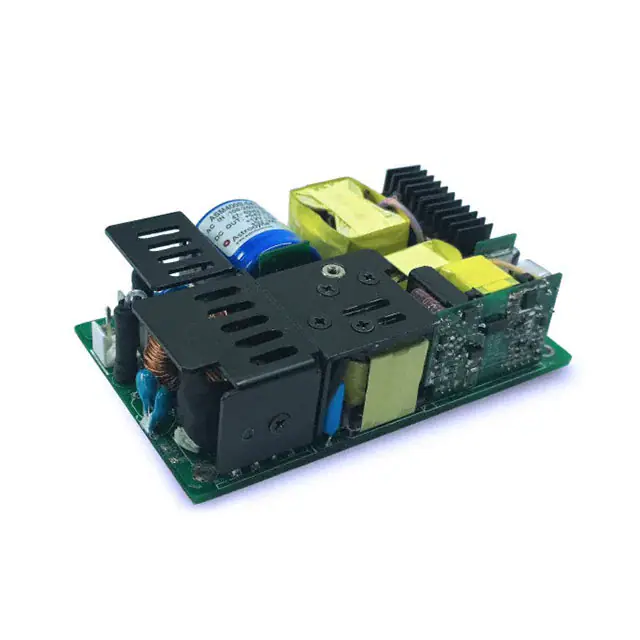

ASM400S-24AC/DC CONVERTER 24V 199W |
3,530 |
|
Datasheet |
ASM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 199W (401W Forced Air) | Medical | 4 kV | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
ASM201-540-BEH-PF1AC/DC CONVERTER 54V 140W |
1,844 |
|
Datasheet |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 54V | - | - | - | - | - | 2.6 A | - | - | - | - | - | 140W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
|
|
ASM201-280-BNH-PF1AC/DC CONVERTER 28V 140W |
1,631 |
|
Datasheet |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 28V | - | - | - | - | - | 5 A | - | - | - | - | - | 140W (199W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
|
ASM201-180-BEH-PF1AC/DC CONVERTER 18V 139W |
1,624 |
|
Datasheet |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 18V | - | - | - | - | - | 7.7 A | - | - | - | - | - | 139W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
|
|
EPM30-050-BC-0F0AC/DC CONVERTER 5V 30W |
2,227 |
|
Datasheet |
EPM30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
|
ASM201-540-BNH-PF1AC/DC CONVERTER 54V 140W |
1,263 |
|
Datasheet |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 54V | - | - | - | - | - | 2.6 A | - | - | - | - | - | 140W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|

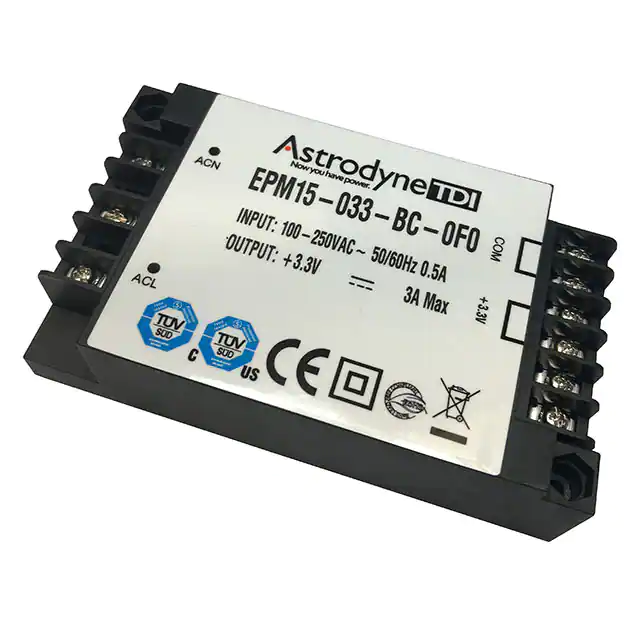

EPM15-120-BC-0F0AC/DC CONVERTER 12V 15W |
2,633 |
|
Datasheet |
EPM15 (15W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
|
ASM201-300-BNH-PF1AC/DC CONVERTER 30V 141W |
4,376 |
|
Datasheet |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 30V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 141W (201W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
|
ASM201-240-BEH-PF1AC/DC CONVERTER 24V 142W |
4,981 |
|
Datasheet |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 24V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 142W (202W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
|
|
EPM15-050-BC-0F0AC/DC CONVERTER 5V 15W |
2,779 |
|
Datasheet |
EPM15 (15W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
|
ASM201-150-BNH-PF1AC/DC CONVERTER 15V 141W |
1,954 |
|
Datasheet |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 15V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 141W (201W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
ESS150-24AC/DC CONVERTER 24V 156W |
4,434 |
|
Datasheet |
ESS150 (150W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 350 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 6.48" L x 1.48" W x 3.21" H (164.5mm x 37.5mm x 81.5mm) |
|
|
ESS15-12AC/DC CONVERTER 12V 16W |
3,306 |
|
Datasheet |
ESS15 (15W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 350 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 3.41" L x 1.32" W x 2.68" H (86.5mm x 33.5mm x 68.0mm) |
|
|
ESS75-12AC/DC CONVERTER 12V 76W |
2,227 |
|
Datasheet |
ESS75 (75W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 350 VDC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 76W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.16" L x 1.30" W x 3.11" H (131.0mm x 33.0mm x 79.0mm) |
|
AMEL5-24SCJZ-STAC/DC CONVERTER 24V 5.5W |
4,220 |
|
Datasheet |
AMEL5-CJZ (5W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 230 mA | - | - | - | - | - | 5.5W | Medical | 4 kV | -25°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 24.0mm) |
|
AME1-12SJZ-STAC/DC CONVERTER 12V 1W |
1,420 |
|
Datasheet |
AME1-JZ (1W) | Box | Active | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 83 mA | - | - | - | - | - | 1W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.06" H (75.9mm x 31.5mm x 26.9mm) |
