AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

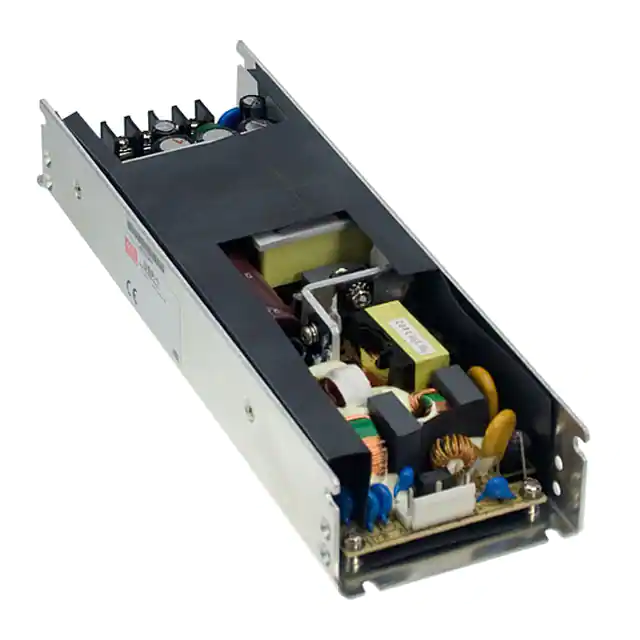

USP-150-24AC/DC CONVERTER 24V 151W |
2,421 |
|
Datasheet |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|
|
USP-150-36AC/DC CONVERTER 36V 151W |
1,754 |
|
Datasheet |
USP-150 (150W) | Box | Obsolete | Open Frame | 1 | 90 ~ 295 VAC, 127 ~ 417 VDC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -30°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 2.65" W x 1.30" H (215.0mm x 67.4mm x 33.0mm) |
|

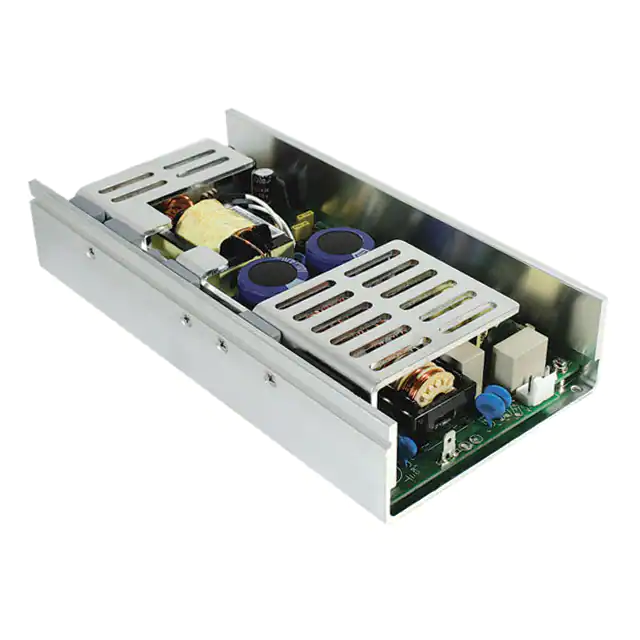

USP-225-12AC/DC CONVERTER 12V 224W |
4,508 |
|
Datasheet |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 18.7 A | - | - | - | - | - | 224W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-15AC/DC CONVERTER 15V 225W |
4,281 |
|
Datasheet |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-24AC/DC CONVERTER 24V 226W |
2,881 |
|
Datasheet |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 226W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-3.3AC/DC CONVERTER 3.3V 132W |
4,562 |
|
Datasheet |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 40 A | - | - | - | - | - | 132W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-48AC/DC CONVERTER 48V 226W |
1,169 |
|
Datasheet |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 226W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|
|
USP-225-5AC/DC CONVERTER 5V 200W |
3,161 |
|
Datasheet |
USP-225 (225W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.95" L x 4.00" W x 1.50" H (202.0mm x 101.5mm x 38.0mm) |
|

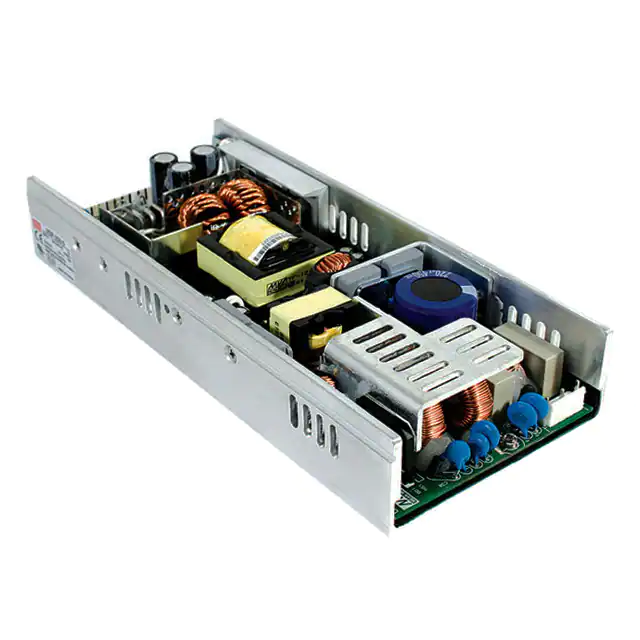

USP-350-12AC/DC CONVERTER 12V 300W |
3,295 |
|
Datasheet |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-15AC/DC CONVERTER 15V 300W |
1,993 |
|
Datasheet |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 20 A | - | - | - | - | - | 300W (351W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-24AC/DC CONVERTER 24V 300W |
3,080 |
|
Datasheet |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-3.3AC/DC CONVERTER 3.3V 165W |
4,422 |
|
Datasheet |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 50 A | - | - | - | - | - | 165W (231W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-48AC/DC CONVERTER 48V 300W |
3,872 |
|
Datasheet |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
|
USP-350-5AC/DC CONVERTER 5V 250W |
1,093 |
|
Datasheet |
USP-350 (350W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 50 A | - | - | - | - | - | 250W (350W Forced Air) | ITE (Commercial) | 3 kV | -10°C ~ 65°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.26" L x 4.00" W x 1.50" H (235.2mm x 101.5mm x 38.0mm) |
|
USP-500-12AC/DC CONVERTER 12V 396W |
4,850 |
|
Datasheet |
USP-500 (500W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 33 A | - | - | - | - | - | 396W (504W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm) |
|
|
USP-500-15AC/DC CONVERTER 15V 405W |
3,973 |
|
Datasheet |
USP-500 (500W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 27 A | - | - | - | - | - | 405W (503W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm) |
|
|
USP-500-24AC/DC CONVERTER 24V 408W |
4,314 |
|
Datasheet |
USP-500 (500W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 17 A | - | - | - | - | - | 408W (504W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm) |
|
|
USP-500-48AC/DC CONVERTER 48V 408W |
4,650 |
|
Datasheet |
USP-500 (500W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 408W (504W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm) |
|
|
USP-500-5AC/DC CONVERTER 5V 300W |
1,309 |
|
Datasheet |
USP-500 (500W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 60 A | - | - | - | - | - | 300W (400W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 10.00" L x 5.00" W x 1.61" H (254.0mm x 127.0mm x 41.0mm) |
|
96PSR-A800WCRAC/DC CONVERTER |
3,597 |
|
Datasheet |
- | Bulk | Obsolete | - | - | 100 ~ 240 VAC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
