Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3WWH-1036GIDC CBL - HHPL10H/AE10G/HHPL10H |
3,685 |
|
Datasheet |
- | Bulk | Active | Plug to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
SFSD-05-28-G-24.00-DR-NUX.050 SOCKET DISCRETE CABLE ASSEM |
4,517 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-05-S-20.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,528 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-07-D-03.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
2,090 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
HCMD-05-T-04.00-02-NIDC SOCKET AND TERMINAL CABLE AS |
1,869 |
|
Datasheet |
HCM | Bulk | Active | Socket to Plug | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
MMSD-05-20-S-11.81-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
2,073 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
TFSD-06-28-G-03.00-S.050" TIGER EYE DOUBLE ROW DISCR |
3,758 |
|
Datasheet |
Tiger Eye™ TFSD | Bulk | Active | Plug to Individual Wire Leads | 12 | 2 | 0.050" (1.27mm) | - | 0.250' (76.20mm, 3.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-07-S-12.00-01-F-N-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,570 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.00' (304.80mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
MMSDT-06-24-L-10.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, FEP |
1,580 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 12 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-04-D-04.00-01-F2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,190 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-02.00-01-F-N-P062MM DOUBLE ROW FEMALE IDC ASSEMB |
3,212 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-05-D-02.00-01-F-N-P102MM DOUBLE ROW FEMALE IDC ASSEMB |
2,489 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
TCSD-13-D-01.00-012MM DOUBLE ROW FEMALE IDC ASSEMB |
1,810 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 26 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.083' (25.40mm, 1.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-20-S-04.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,583 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S1SS-05-28-GF-40.00-L1MICRO MATE SINGLE ROW DISCRETE W |
4,484 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 5 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
TCSD-06-S-06.00-01-N-SRIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,672 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-04-D-04.00-01-F-N-RWIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,907 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.333' (101.60mm, 4.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

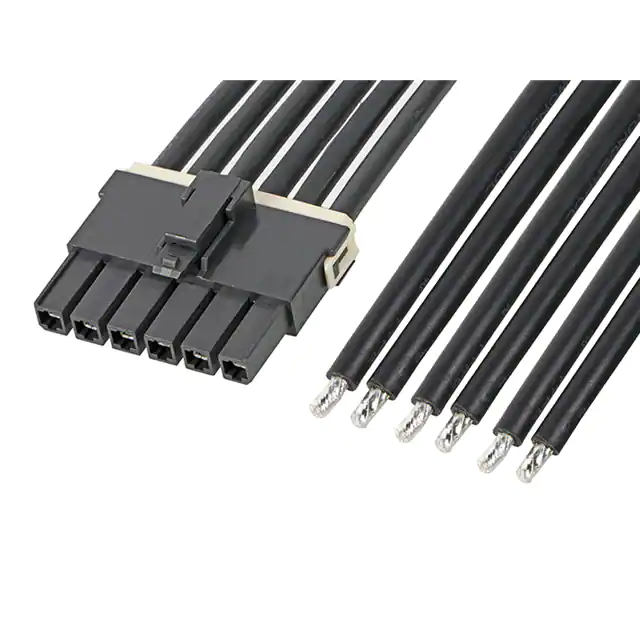

2164011062MEGAFIT SR R-S 6 CKT 300 MM CABL |
3,520 |
|
Datasheet |
Mega-Fit | Bulk | Active | Socket to Cable | 6 | 1 | 0.224" (5.70mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
A3BBH-1036GIDC CABLE - ASR10H/AE10G/ASR10H |
4,880 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

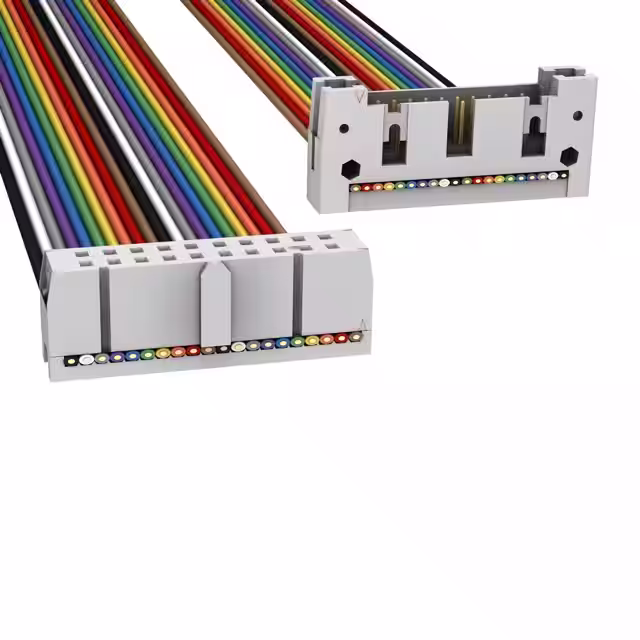

H3CKH-2036MIDC CBL - HHKC20H/AE20G/HHPK20H |
4,841 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
