Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCSD-08-S-05.91-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,337 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.492' (150.00mm, 5.91") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
SFSD-04-28-G-07.87-DR-NDX.050 SOCKET DISCRETE CABLE ASSEM |
1,850 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 8 | 2 | 0.050" (1.27mm) | - | 0.656' (200.00mm, 7.87") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-07-28-G-07.87-D-NUS.050 SOCKET DISCRETE CABLE ASSEM |
3,237 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | 0.656' (200.00mm, 7.87") | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCMD-05-D-02.01-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,639 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-D-02.00-01-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,482 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-D-02.00-01-RW2MM DOUBLE ROW MALE IDC ASSEMBLY |
1,494 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-05-D-02.00-01-RW-R2MM DOUBLE ROW MALE IDC ASSEMBLY |
2,026 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Plug, Reversed | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
TCMD-17-S-05.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,646 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-05-D-02.36INSULATION DISPLACEMENT TERMINAL |
4,152 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.197' (59.94mm, 2.36") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
T1PDT-02-28-GF-06.0-A-T3CBL 1MM 4POS PNL MNT M TO F |
1,824 |
|
- |
Micro Mate™ T1PDT | Bulk | Active | Socket to Plug | 4 | 2 | 0.039" (1.00mm) | - | 0.500' (152.40mm, 6.00") | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
T1SDT-02-28-GF-06.0-T3CBL ASSY 1MM 4POS M TO F |
3,666 |
|
Datasheet |
Micro Mate™ T1SDT | Bulk | Active | Socket to Plug | 4 | 2 | 0.039" (1.00mm) | - | 0.500' (152.40mm, 6.00") | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSD-05-20-L-40.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
3,857 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
TCSD-07-S-15.00-01-F-N-RWIDC SOCKET CABLE ASSEMBLIES, 2.0 |
3,289 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 1.25' (381.00mm) | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
SFSDT-07-30-F-04.00-DR-NUSDOUBLE ROW DISCRETE FEP WIRE |
3,874 |
|
Datasheet |
Tiger Eye™ SFSDT | Bag | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
A3DDA-2006GIDC CABLE-AKP20A/ AE20G / AKP20A |
4,503 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BBA-2606JIDC CABLE - MSR26A/MC26G/MSR26A |
1,896 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A2MXT-2618MADM26T/AE26M/X |
2,968 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|

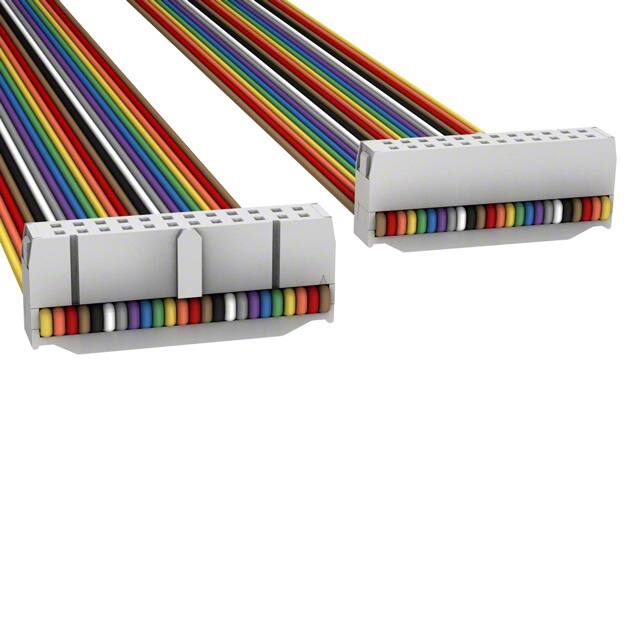

H3DDH-2436MIDC CABLE - HKR24H/AE24M/HKR24H |
4,153 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

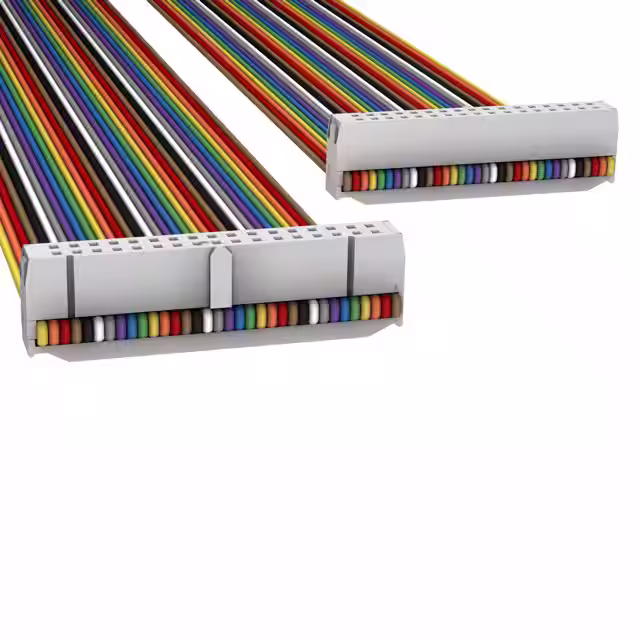

H3DDH-3436MIDC CBL - HHKR34H/AE34M/HHKR34H |
2,860 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCMD-20-S-02.00-01CABLE ASSEM 2MM 40POS SGL END 2" |
4,844 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 40 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
