Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCMD-06-S-13.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
4,941 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
L3DKH-1418NIDC CBL - LKR14H/CN218GR/LPK14H |
4,005 |
|
- |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
MMSDT-02-20-F-04.80-S-K-MMINI-MATE CABLE ASSEMBLY, FEP |
4,202 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
S1SS-08-28C-GF-14.00-LMICRO MATE SINGLE ROW DISCRETE W |
3,997 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 8 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
SMSD-04-24C-F-05.00-S.100" MINI MATE UNIVERSAL DOUBLE |
2,377 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Individual Wire Leads | 8 | 2 | 0.100" (2.54mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | - |
|
|
TFSDT-05-28-F-05.00-S.050" TIGER EYE DOUBLE ROW DISCR |
2,896 |
|
Datasheet |
Tiger Eye™ TFSDT | Bulk | Active | Plug to Individual Wire Leads | 10 | 2 | 0.050" (1.27mm) | - | 0.417' (127.00mm, 5.00") | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
A1DXG-1636GIDC CABLE - AKR16G/AE16G/X |
2,349 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

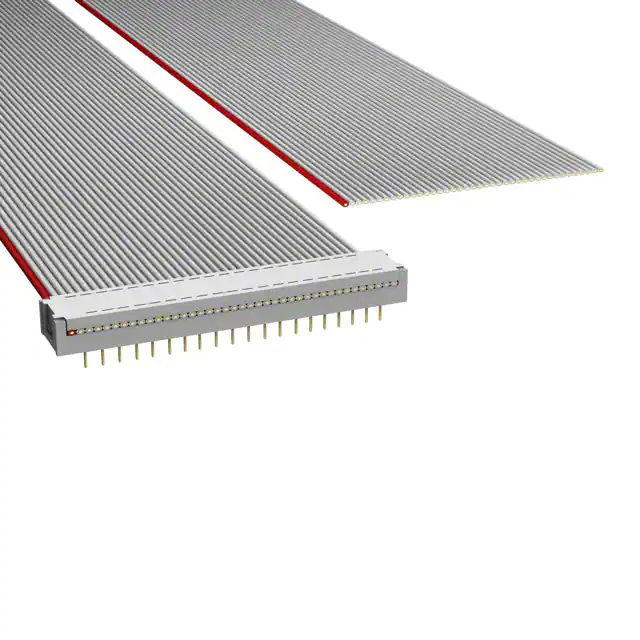

H2PXS-4036GDIP CABLE - HDP40S/AE40G/X |
2,057 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
|
H4PXS-4036GDIP CABLE - HDP40S/AE40G/X |
2,241 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | - |
|
H3CKH-1636MIDC CBL - HHKC16H/AE16M/HHPK16H |
4,033 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3CWH-1636MIDC CBL - HHKC16H/AE16M/HHPL16H |
4,441 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
C2RXS-1418GDIP CABLE - CDR14S/AE14G/X |
1,106 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C4RXS-1418GDIP CABLE - CDR14S/AE14G/X |
3,209 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
H3DDS-6406MIDC CBL - HHKR64S/AE64M/HHKR64S |
3,727 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3DDH-5018MIDC CBL - HKR50H/AE50M/HKR50H |
4,009 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-07-S-03.15-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,866 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 14 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.263' (80.01mm, 3.15") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCSD-06-S-04.21-01-NIDC SOCKET CABLE ASSEMBLIES, 2.0 |
2,303 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.351' (106.93mm, 4.21") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
S1SS-12-28-GF-04.50-L1MICRO MATE SINGLE ROW DISCRETE W |
2,918 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 12 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SS-10-30C-GF-04.00-D-NUSMICRO MATE SINGLE ROW DISCRETE W |
2,680 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 10 | 1 | 0.039" (1.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSDT-05-20-L-06.00-D-K-LUXMINI-MATE CABLE ASSEMBLY, FEP |
3,648 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
