Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3AWH-2018MIDC CBL - HHSC20H/AE20M/HHPL20H |
2,616 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Flange, Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DWH-2618MIDC CBL - HHKR26H/AE26M/HHPL26H |
4,820 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C4PXS-1618GDIP CABLE - CDP16S/AE16G/X |
3,251 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
TCSD-10-S-07.90-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
4,797 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 20 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.658' (200.66mm, 7.90") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
PMSS-02-22-K-96.00-D-LUS.165" POWER MATE SINGLE ROW DISC |
1,230 |
|
Datasheet |
Power Mate® PMSS | Bulk | Active | Socket to Socket | 2 | 1 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
SFSDT-02-30-G-03.25-SDOUBLE ROW DISCRETE FEP WIRE |
2,762 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
H3BKH-2618MIDC CBL - HHSR26H/AE26M/HHPK26H |
1,119 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3BWH-2618MIDC CBL - HHSR26H/AE26M/HHPL26H |
4,310 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Flange, Polarizing Key (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-2606RIDC CABLE - MDM26H/MC26M/X |
1,194 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | PCB to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
M2MXH-3406RIDC CABLE - MDM34H/MC34M/X |
4,040 |
|
Datasheet |
- | Bulk | Obsolete | PCB to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Board In | IDC | Gold | 15.0µin (0.38µm) |
|
|
TCSD-05-S-11.34-01-F-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
3,619 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.945' (288.04mm, 11.34") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
S1SD-02-28-GF-24.00-L1MICRO MATE DOUBLE ROW DISCRETE W |
4,975 |
|
Datasheet |
Micro Mate™ S1SD | Bulk | Active | Socket to Socket | 4 | 2 | 0.039" (1.00mm) | - | - | Latch Lock | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSS-10-24-L-10.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
1,020 |
|
Datasheet |
Mini Mate® MMSS | Bulk | Active | Socket to Socket | 10 | 1 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
2162921061STANDARD .093 6 CIRCUIT P TO P 1 |
2,433 |
|
Datasheet |
Standard .093" 216292 | Bag | Active | Socket to Socket | 6 | 2 | 0.264" (6.70mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 20.0µin (0.51µm) |
|
2162931062STANDARD .093 6 CIRCUIT P TO S 3 |
1,525 |
|
Datasheet |
216293 | Bag | Active | Plug to Individual Wire Leads | 6 | 2 | 0.264" (6.70mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 20.0µin (0.51µm) |
|
|
A1BXA-1636MIDC CABLE- ASS16A/ AE16M / X |
1,174 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3CCA-1606RIDC CABLE - MKC16A/MC16M/MKC16A |
1,810 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
A2MXT-2418MADM24T/AE24M/X |
4,531 |
|
Datasheet |
- | Bulk | Obsolete | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|

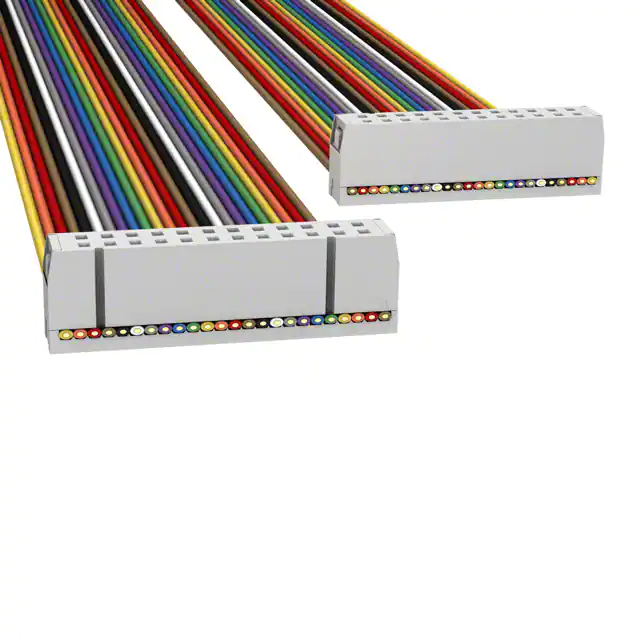

H3AAH-2436MIDC CBL - HHSC24H/AE24M/HHSC24H |
4,223 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
TCMD-17-S-02.00-01CABLE ASSEM 2MM 34POS SGL END 2" |
2,522 |
|
Datasheet |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 34 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.167' (50.80mm, 2.00") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
