Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMSD-05-24-F-06.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
1,457 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
S1SS-08-28-GF-07.09-D-NDSMICRO MATE SINGLE ROW DISCRETE W |
4,653 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Socket | 8 | 1 | 0.039" (1.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
MMSDT-04-20-L-07.00-D-K-LUXMINI-MATE CABLE ASSEMBLY, FEP |
1,896 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 8 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S1SS-04-28C-GF-30.00-LMICRO MATE SINGLE ROW DISCRETE W |
2,520 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
S1SST-08-28-GF-05.00-L1MICRO MATE SINGLE ROW DISCRETE T |
1,913 |
|
Datasheet |
Micro Mate™ S1SST | Bulk | Active | Socket to Socket | 8 | 1 | 0.039" (1.00mm) | - | - | Latch Lock | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|

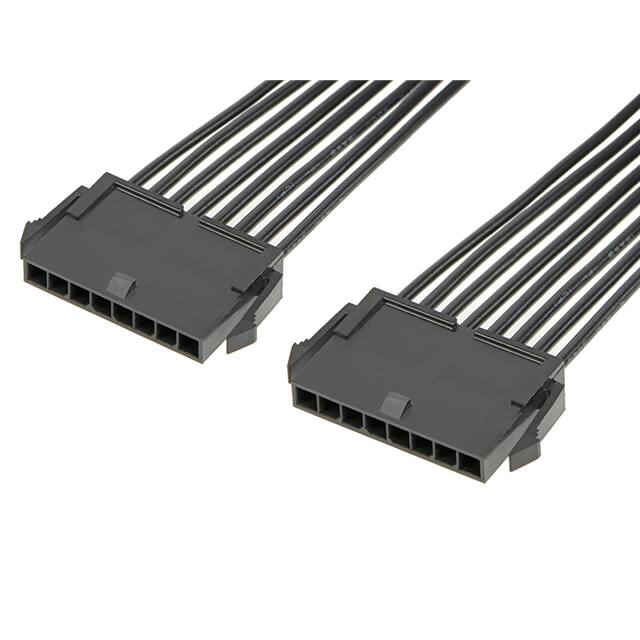

2147522082MICROFIT 3.0 SR P-P 8CKT 300 MM |
1,003 |
|
Datasheet |
Micro-Fit 3.0 214752 | Bulk | Active | Plug to Plug | 8 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
2162721081SL POSITIVE LOCK P-P 8CKT 100MM |
2,832 |
|
Datasheet |
Positive-Lock 216272 | Bag | Active | Plug to Plug | 8 | 1 | 0.100" (2.54mm) | - | 0.328' (100.00mm, 3.94") | Latch Holder | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
TCSD-05-S-01.00-01-N2MM DOUBLE ROW FEMALE IDC ASSEMB |
2,279 |
|
Datasheet |
Tiger Eye™ TCSD | Bulk | Active | Socket to Cable | 10 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | 0.083' (25.40mm, 1.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
|
TCMD-06-S-09.00-012MM DOUBLE ROW MALE IDC ASSEMBLY |
3,384 |
|
- |
Tiger Eye™ TCMD | Bulk | Active | Plug to Cable | 12 | 2 | 0.079" (2.00mm) | 0.039" (1.00mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMD-05-T-04.00-T-RSLIM BODY DOUBLE-ROW IDC MALE AS |
1,085 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug, Reversed | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
MMSDT-03-20-F-60.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, FEP |
2,273 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 6 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | Flash |
|
|
0369231600IGRID 16 CIRCUIT 50MM |
3,111 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

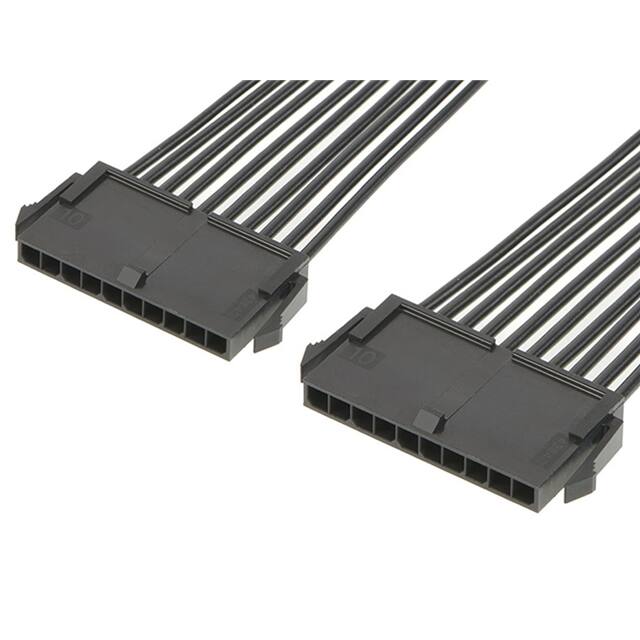

2147522101MICROFIT 3.0 SR P-P 10CKT 150 MM |
3,738 |
|
Datasheet |
Micro-Fit 3.0 214752 | Bulk | Active | Plug to Plug | 10 | 1 | 0.118" (3.00mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
A1AXG-1436MIDC CABLE- ASC14G/ AE14M / X |
4,356 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
A3AAG-1636GIDC CABLE - ASC16G/AE16G/ASC16G |
1,565 |
|
Datasheet |
- | Bulk | Obsolete | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H1AXS-4036GIDC CABLE - HSC40S/AE40G/X |
1,758 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3BKH-1418GIDC CBL - HHSR14H/AE14G/HHPK14H |
3,096 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DKH-1418GIDC CBL - HHKR14H/AE14G/HHPK14H |
1,205 |
|
Datasheet |
- | Bulk | Active | Socket to Plug | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief (Socket); Polarizing Key (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
C2PXS-1406GDIP CABLE - CDP14S/AE14G/X |
3,738 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C4PXS-1406GDIP CABLE - CDP14S/AE14G/X |
2,076 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
