Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2PXS-1636GDIP CABLE - HDP16S/AE16G/X |
1,552 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
|
H4PXS-1636GDIP CABLE - HDP16S/AE16G/X |
3,437 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | - |
|
H3CCH-3418GIDC CBL - HHKC34H/AE34G/HHKC34H |
3,527 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
H3DDH-2018MIDC CBL- HHKR20H/AE20M/HHKR20H |
2,326 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
S1SS-02-28C-GF-01.81-SMICRO MATE SINGLE ROW DISCRETE W |
4,051 |
|
Datasheet |
Micro Mate™ S1SS | Bulk | Active | Socket to Individual Wire Leads | 2 | 1 | 0.039" (1.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
T1SS-03-30C-GF-02.81.00 MM MICRO MATE SINGLE ROW DI |
4,274 |
|
Datasheet |
Micro Mate™ T1SS | Bulk | Active | Socket to Plug | 3 | 1 | 0.039" (1.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
|
0451340210ULTRAFIT 2 CIRCUIT WHITE 1M |
4,221 |
|
Datasheet |
Ultra-Fit 45134 | Bag | Obsolete | Socket to Socket | 2 | 1 | 0.138" (3.50mm) | - | 3.28' (1.00m) | - | Black, Red, Individual | Unshielded | - | Crimp | Tin | 60.0µin (1.52µm) |
|

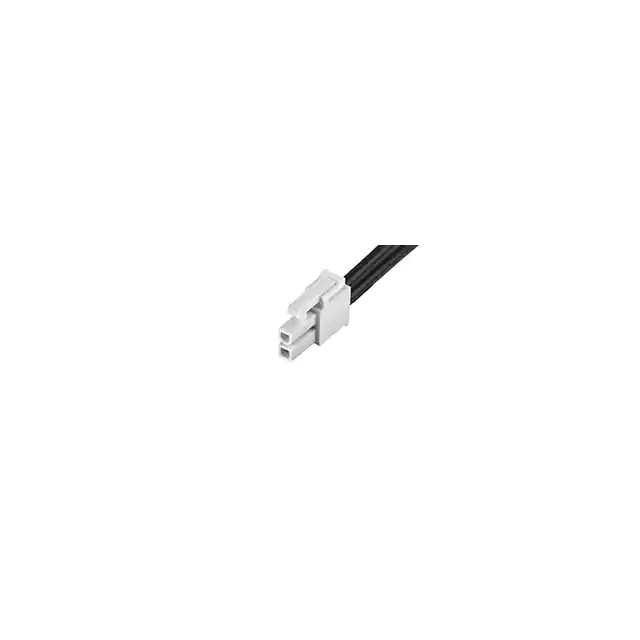

2153272023MINIFIT JR DR P-P 2 CIRCUIT 600M |
3,282 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Plug to Plug | 2 | 2 | 0.165" (4.19mm) | - | 1.97' (600.00mm) | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
7010502195MOLDED CABLE ASSEMBLY STKPKG 2M- |
2,748 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H1AXH-2036GIDC CBL - HHSC20H/AE20G/X |
2,896 |
|
Datasheet |
- | Bulk | Active | Socket to Cable | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H6MMS-1418MDIP CABLE - HDM14S/AE14M/HDM14S |
1,236 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to DIP | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H8MMS-1418MDIP CABLE - HDM14S/AE14M/HDM14S |
4,493 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
A20XAF20XAF22K305AJUMPER 20XAF-2S - 20XAF-2S 12" |
1,756 |
|
Datasheet |
XAF | Bulk | Active | Socket to Socket, Reversed | 20 | 1 | 0.098" (2.50mm) | - | 1.00' (304.80mm) | - | Black, Individual | - | - | IDC | Tin | - |
|
|
A20XAF20XAF22K305BJUMPER 20XAF-2S - 20XAF-2S 12" |
2,300 |
|
Datasheet |
XAF | Bulk | Active | Socket to Socket | 20 | 1 | 0.098" (2.50mm) | - | 1.00' (304.80mm) | - | Black, Individual | - | - | IDC | Tin | - |
|
2153261061MINIFIT JR DR R-S 6 CIRCUIT 150M |
1,234 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 6 | 2 | 0.165" (4.19mm) | - | 0.492' (150.00mm, 5.91") | - | Black, Individual | Unshielded | - | Crimp | Tin | 35.0µin (0.89µm) |
|
H3CCS-1636GIDC CBL - HHKC16S/AE16G/HHKC16S |
2,270 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
0151350802CLICKMATE 8CIRCUIT 150MM |
2,650 |
|
Datasheet |
CLIK-MATE 15135 | Bag | Active | Plug to Plug | 8 | 1 | 0.059" (1.50mm) | - | 0.492' (150.00mm, 5.91") | Latch Lock | Black, Individual | - | - | Crimp | Tin | 16.0µin (0.41µm) |
|
|
092316243024CKT PICOFLEX 300MM LONG |
1,438 |
|
Datasheet |
Picoflex 92316 | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.984' (300.00mm, 11.81") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
H6MMH-2406GDIP CABLE - HDM24H/AE24G/HDM24H |
2,240 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-2406GDIP CABLE - HDM24H/AE24G/HDM24H |
1,887 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
