Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H2MXH-5006GDIP CABLE - HDM50H/AE50G/X |
2,217 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H6MMS-1636GDIP CBL - HHDM16S/AE16G/HHDM16S |
1,069 |
|
Datasheet |
- | Bulk | Active | DIP to DIP | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H8MMS-1636GDIP CBL - HHDM16S/AE16G/HHDM16S |
1,694 |
|
Datasheet |
- | Bulk | Active | DIP to DIP, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H3AAS-2406MIDC CABLE - HSC24S/AE24M/HSC24S |
4,265 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3DDH-2406MIDC CABLE - HKR24H/AE24M/HKR24H |
3,242 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
H3DDH-3006MIDC CABLE- HHKR30H/AE30M/HHKR30H |
2,416 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DDS-1618MIDC CBL - HHKR16S/AE16M/HHKR16S |
1,353 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
092316242224CKT PICOFLEX 220MM LONG |
2,519 |
|
Datasheet |
Picoflex 92316 | Bulk | Obsolete | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.722' (220.00mm, 8.66") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 80.0µin (2.03µm) |
|
H3BBH-1036MIDC CBL - HHSR10H/AE10M/HHSR10H |
3,537 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H2MXH-2418GDIP CABLE - HDM24H/AE24G/X |
1,129 |
|
Datasheet |
- | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H3BBH-1418MIDC CBL - HHSR14H/AE14M/HHSR14H |
2,032 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
MMSDT-02-24-L-21.50-S-KMINI-MATE CABLE ASSEMBLY, FEP |
1,776 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Individual Wire Leads | 4 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
0369220801DITTO 8 CIRCUIT WTW 100MM |
1,784 |
|
Datasheet |
Ditto 36922 | Bag | Active | Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic | 8 | 1 | 0.118" (3.00mm) | - | 0.328' (100.00mm, 3.94") | - | Black, Individual | Unshielded | - | Crimp | Tin | - |
|

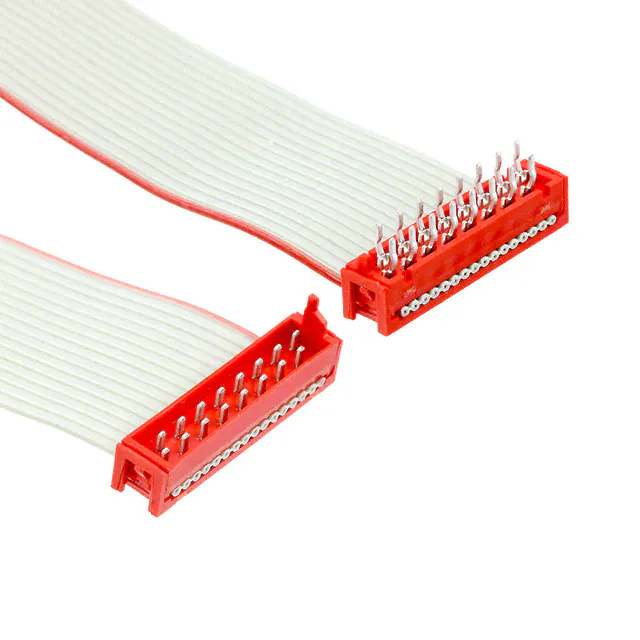

2205074-2CABLE ASSEMBLY HEADER WTB 16POS |
2,592 |
|
Datasheet |
Micro-MaTch | Box | Active | Plug to PCB | 16 | 2 | - | - | 0.492' (150.00mm, 5.91") | - | Gray, Ribbon | - | - | IDC | - | - |
|
|
2264291043MICRO-FIT3.0 R-S 4CKT 300MM DISC |
2,610 |
|
- |
Micro-Fit 3.0 226429 | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.118" (3.00mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Tin | 40.0µin (1.02µm) |
|
2153212042MINIFIT JR SR R-S 4 CIRCUIT 300M |
4,275 |
|
Datasheet |
Mini-Fit Jr 215321 | Bag | Active | Socket to Individual Wire Leads | 4 | 1 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
H3BBH-1618MIDC CBL - HHSR16H/AE16M/HHSR16H |
4,545 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H3DDH-1418MIDC CBL - HHKR14H/AE14M/HHKR14H |
4,901 |
|
Datasheet |
- | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
T1SDT-02-28-GF-08.01.00 MM MICRO MATE DOUBLE ROW TE |
1,868 |
|
Datasheet |
Micro Mate™ T1SDT | Bulk | Active | Socket to Plug | 4 | 2 | 0.039" (1.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 3.00µin (0.076µm) |
|
2153262042MINIFIT JR DR R-S 4 CIRCUIT 300M |
1,640 |
|
Datasheet |
Mini-Fit Jr 215327 | Bag | Active | Socket to Cable | 4 | 2 | 0.165" (4.19mm) | - | 0.984' (300.00mm, 11.81") | - | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
