Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDSD-32-S-36.00-GINSULATION DISPLACEMENT TERMINAL |
3,734 |
|
- |
IDSD | Bulk | Active | Socket to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-20-22-L-96.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,578 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SD-09-24C-S-20.00-D-NDX2.00 MM TIGER EYE DOUBLE ROW DIS |
2,689 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Socket | 18 | 2 | 0.079" (2.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
S2SD-20-24C-L-15.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
2,713 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.079" (2.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FFSD-08-S-84.00-01-N.050 X .050 C.L. FEMALE IDC ASSE |
4,498 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 7.00' (2.13m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

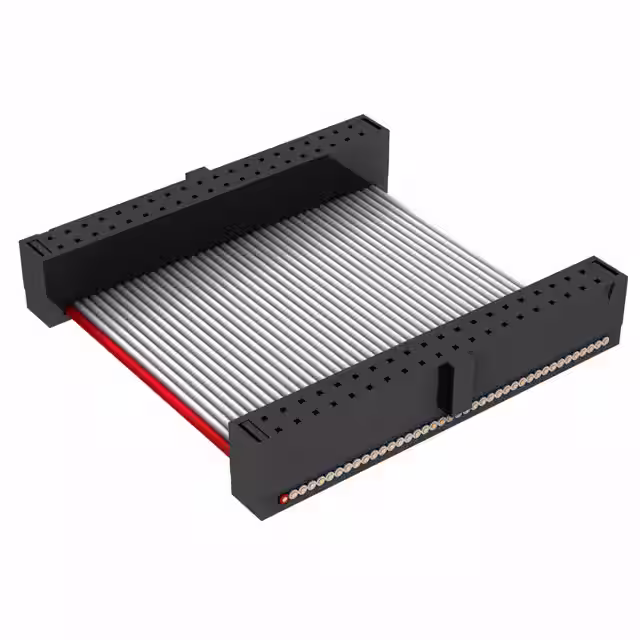

FFSD-20-D-10.00-01-N-RN1.050 X .050 C.L. FEMALE IDC ASSE |
1,350 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.833' (254.00mm, 10.00") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-20-D-10.00-01-N-RN2.050 X .050 C.L. FEMALE IDC ASSE |
4,256 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.833' (254.00mm, 10.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-20-D-10.00-01-N-RW-R.050 X .050 C.L. FEMALE IDC ASSE |
4,230 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket, Reversed | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.833' (254.00mm, 10.00") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
SFSDT-20-28-G-24.00-DR-NDX.050 (1.27) SOCKET DISCRETE CABL |
3,382 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSDT-20-28-G-24.00-DR-NUS.050 (1.27) SOCKET DISCRETE CABL |
3,221 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | - | 2.00' (609.60mm) | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDSD-12-D-50.00-GINSULATION DISPLACEMENT TERMINAL |
4,958 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 4.17' (1.27m) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S2SD-20-24C-L-14.00-SR2.00 MM TIGER EYE DOUBLE ROW DIS |
2,131 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.079" (2.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSDT-20-28-G-24.00-DR-NDSDOUBLE ROW DISCRETE FEP WIRE |
2,779 |
|
Datasheet |
Tiger Eye™ SFSDT | Bag | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDSD-25-D-08.00-P04-S04-RSLIM BODY DOUBLE-ROW IDC SOCKET |
2,505 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket, Reversed | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-25-D-08.00-P04-W04-RSLIM BODY DOUBLE-ROW IDC SOCKET |
3,185 |
|
Datasheet |
IDSD | Bulk | Active | Socket to Socket, Reversed | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSS-12-D-60.00-RINSULATION DISPLACEMENT SOCKET C |
3,414 |
|
- |
IDSS | Bulk | Active | Socket to Socket, Reversed | 12 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-25-D-26.00INSULATION DISPLACEMENT TERMINAL |
2,515 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 2.17' (660.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
FFSD-08-D-13.80-01-N-D04.050" LOW PROFILE TIGER EYE IDC |
1,332 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket (3) | 16 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.15' (350.52mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-05-D-63.00-01-N.050 X .050 C.L. FEMALE IDC ASSE |
2,118 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 5.25' (1.60m) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-20-D-10.10-01-N.050 X .050 C.L. FEMALE IDC ASSE |
1,592 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.842' (256.54mm, 10.10") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
