Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMSD-15-20-L-23.62-D-K-MDXMINI-MATE CABLE ASSEMBLY, 0.100" |
2,559 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMD-23-T-12.00-A-GSLIM BODY DOUBLE-ROW IDC MALE AS |
4,464 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug | 46 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold, Tin | - |
|
|
IDMD-22-D-06.00SLIM BODY DOUBLE-ROW IDC MALE AS |
1,643 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug | 44 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMD-23-T-12.00-A-G-RW-RSLIM BODY DOUBLE-ROW IDC MALE AS |
1,821 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug, Reversed | 46 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold, Tin | - |
|
FFSD-05-D-04.50-01-N-D03.050 X .050 C.L. FEMALE IDC ASSE |
3,179 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket (3) | 10 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.375' (114.30mm, 4.50") | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-08-D-31.40-01-N.050 X .050 C.L. FEMALE IDC ASSE |
1,430 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | - | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
FFSD-15-D-08.50-01-N.050 X .050 C.L. FEMALE IDC ASSE |
4,616 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.708' (215.90mm, 8.50") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

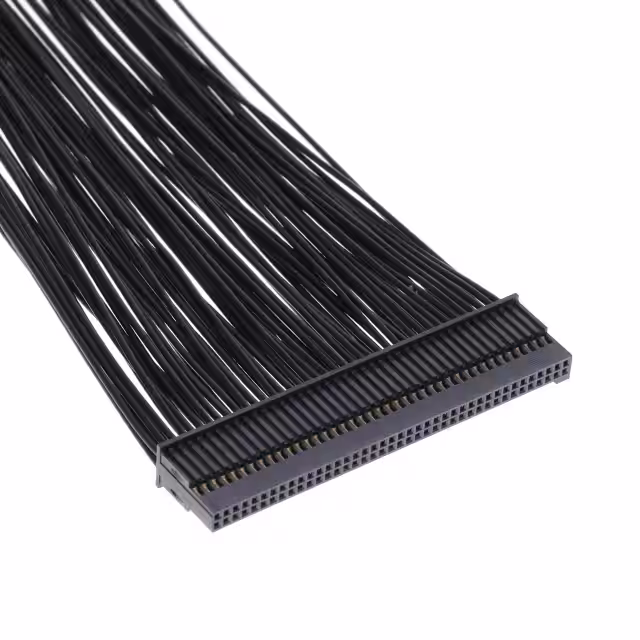

SFSD-40-28-G-18.00-S.050 SOCKET DISCRETE CABLE ASSEM |
1,791 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 80 | 2 | 0.050" (1.27mm) | - | 1.50' (457.20mm) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FFSD-12-D-14.20-01-N-R.050" LOW PROFILE TIGER EYE IDC |
2,109 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket, Reversed | 24 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.18' (360.68mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
HCSD-13-D-20.50-01-NIDC SOCKET AND TERMINAL CABLE AS |
4,169 |
|
Datasheet |
HCS | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
IDMD-16-T-24.00SLIM BODY DOUBLE-ROW IDC MALE AS |
1,520 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug | 32 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-20-20-L-80.00-S-K-MMINI-MATE CABLE ASSEMBLY, 0.100" |
2,091 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-15-24C-S-12.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
4,898 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
IDSD-11-D-36.00INSULATION DISPLACEMENT TERMINAL |
1,216 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 22 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-18-S-36.00-GINSULATION DISPLACEMENT TERMINAL |
2,389 |
|
- |
IDSD | Bulk | Active | Socket to Cable | 36 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-31-D-06.25-GINSULATION DISPLACEMENT TERMINAL |
3,296 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 62 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.521' (158.75mm, 6.25") | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMD-22-T-16.00-GSLIM BODY DOUBLE-ROW IDC MALE AS |
4,315 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug | 44 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
S2SD-20-24-L-12.00-S2.00 MM TIGER EYE DOUBLE ROW DIS |
2,688 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Individual Wire Leads | 40 | 2 | 0.079" (2.00mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMD-25-T-09.00SLIM BODY DOUBLE-ROW IDC MALE AS |
3,496 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDMD-20-D-12.00-T-S02SLIM BODY DOUBLE-ROW IDC MALE AS |
4,417 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
