Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MMSD-15-24C-L-20.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
3,383 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMD-20-T-06.85SLIM BODY DOUBLE-ROW IDC MALE AS |
1,850 |
|
Datasheet |
IDMD | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSD-20-24-L-03.50-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
2,102 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MRTD-15-24-L-05.0-L1.100" MINI MATE DOUBLE ROW PANEL |
3,963 |
|
Datasheet |
Mini Mate® MRTD | Bulk | Active | Plug to Plug | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock | Black, Individual | Shielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SD-05-24C-L-31.50-DR-NDX2.00 MM TIGER EYE DOUBLE ROW DIS |
4,508 |
|
Datasheet |
Tiger Eye™ S2SD | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | - | - | - | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSDT-25-28-H-08.00-SDOUBLE ROW DISCRETE FEP WIRE |
1,650 |
|
Datasheet |
Tiger Eye™ SFSDT | Bag | Active | Socket to Individual Wire Leads | 50 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
SFSDT-25-28-G-03.00-SSDOUBLE ROW DISCRETE FEP WIRE |
1,729 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Individual Wire Leads | 50 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSDT-15-28-G-20.00-SSDOUBLE ROW DISCRETE FEP WIRE |
2,695 |
|
Datasheet |
Tiger Eye™ SFSDT | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.050" (1.27mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|

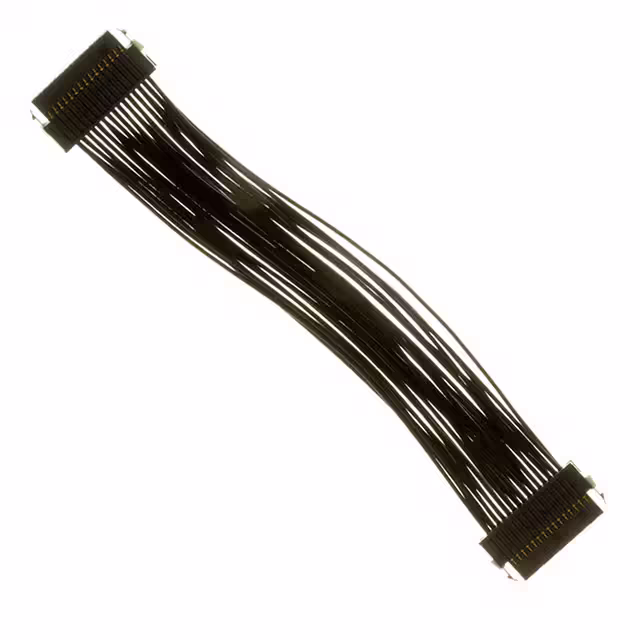

SFSD-15-28-H-05.00-DR-NDSCABLE ASSY SOCKET 30POS 28AWG |
3,286 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.050" (1.27mm) | - | 0.417' (127.00mm, 5.00") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|

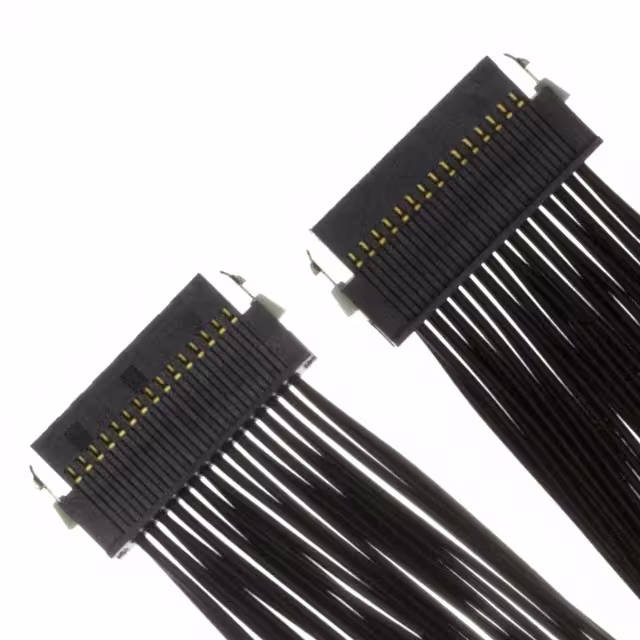

SFSD-15-28-H-05.00-DR-NDXCABLE ASSY SOCKET 30POS 28AWG |
3,349 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.050" (1.27mm) | - | 0.417' (127.00mm, 5.00") | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
IDSD-06-D-60.00INSULATION DISPLACEMENT TERMINAL |
1,885 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 12 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-32-S-12.00-GINSULATION DISPLACEMENT TERMINAL |
2,379 |
|
- |
IDSD | Bulk | Active | Socket to Cable | 64 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMTD-10-24-L-06.00-D-TUS.100" MINI MATE DOUBLE ROW DISCR |
1,240 |
|
Datasheet |
Mini Mate® MMTD | Bulk | Active | Socket to Plug | 20 | 2 | 0.100" (2.54mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
PMSD-08-18-K-12.00-D-LDX.165" POWER MATE DOUBLE ROW DISC |
2,064 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
PMSD-08-18-K-12.00-D-LUS.165" POWER MATE DOUBLE ROW DISC |
1,602 |
|
Datasheet |
Power Mate® PMSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.165" (4.19mm) | - | - | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Tin | - |
|
|
MMSD-16-24C-L-03.25-D-K-LDXMINI-MATE CABLE ASSEMBLY, 0.100" |
4,818 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 32 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
IDMD-18-D-07.50-G-RSLIM BODY DOUBLE-ROW IDC MALE AS |
2,283 |
|
Datasheet |
IDMD | Bulk | Active | Plug to Plug, Reversed | 36 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
FFSD-07-D-20.00-01-N.050 X .050 C.L. FEMALE IDC ASSE |
3,961 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.67' (508.00mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

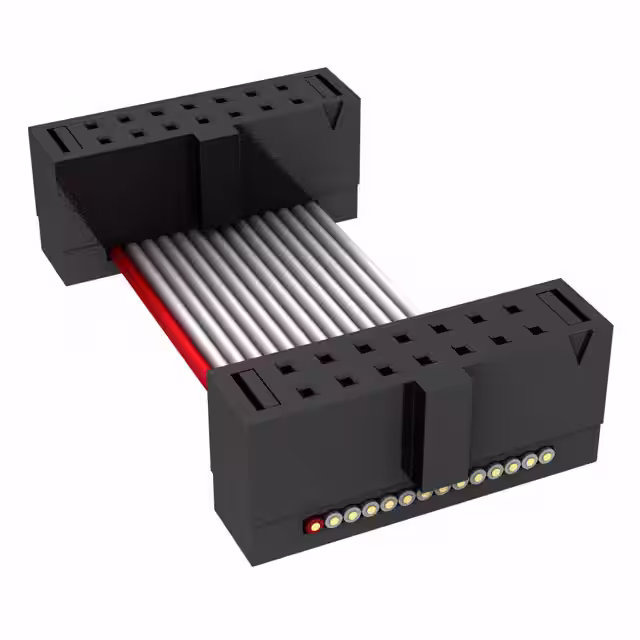

FFSD-07-D-20.00-01-N-RW.050 X .050 C.L. FEMALE IDC ASSE |
3,959 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 1.67' (508.00mm) | Polarizing Key, Reverse Wiring | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
FFSD-10-D-08.00-01-N-SR.050 X .050 C.L. FEMALE IDC ASSE |
2,912 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.667' (203.20mm, 8.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
