Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IDSD-07-D-24.00-D02INSULATION DISPLACEMENT TERMINAL |
1,507 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 2.00' (609.60mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-15-D-07.50-RINSULATION DISPLACEMENT TERMINAL |
3,039 |
|
- |
IDSD | Bulk | Active | Socket to Socket, Reversed | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.625' (190.50mm, 7.50") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSS-18-D-20.00-GINSULATION DISPLACEMENT SOCKET C |
1,674 |
|
- |
IDSS | Bulk | Active | Socket to Socket | 18 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
MMSDT-12-20-L-20.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, FEP |
2,252 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 24 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SDT-05-28-S-06.00-DR-NDS2.00 MM TIGER EYE DOUBLE ROW DIS |
1,239 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
MMSDT-15-24-L-05.00-D-K-LDXMINI-MATE CABLE ASSEMBLY, FEP |
2,440 |
|
Datasheet |
Mini Mate® MMSDT | Bulk | Active | Socket to Socket | 30 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MPSS-04-16-L-39.00-SR5.00 MM POWERSTRIP/30 A POWER CA |
3,482 |
|
Datasheet |
PowerStrip™ 30 MPSS | Bulk | Active | Socket to Individual Wire Leads | 4 | 1 | 0.197" (5.00mm) | - | - | Latch Lock, Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
S2SDT-05-28-S-06.00-DR-NDX2.00 MM TIGER EYE DOUBLE ROW DIS |
1,091 |
|
Datasheet |
Tiger Eye™ S2SDT | Bulk | Active | Socket to Socket | 10 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
S2SDT-05-24-L-25.00-SS2.00 MM TIGER EYE DOUBLE ROW DIS |
2,012 |
|
Datasheet |
Tiger Eye™ S2SDT | Bag | Active | Socket to Individual Wire Leads | 10 | 2 | 0.079" (2.00mm) | - | - | - | Blue, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SFSD-15-28-G-07.60-DR-NDXDOUBLE ROW DISCRETE WIRE ASSEMBL |
1,785 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Socket | 30 | 2 | 0.050" (1.27mm) | - | - | - | Black, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
MMSD-10-24C-L-60.00-D-K-LUSMINI-MATE CABLE ASSEMBLY, 0.100" |
1,892 |
|
Datasheet |
Mini Mate® MMSD | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | - | - | Latch Lock, Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
SMSD-08-24C-L-48.00-S-K.100" MINI MATE UNIVERSAL DOUBLE |
3,105 |
|
Datasheet |
Mini Mate® SMSD | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | - | - | Polarizing Key | Multiple, Individual | Unshielded | - | Crimp | Gold | 10.0µin (0.25µm) |
|
|
FFMD-10-T-05.00-01-N-SR.050 CABLE PLUG |
4,851 |
|
Datasheet |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 20 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.417' (127.00mm, 5.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
FFMD-12-T-03.79-01-N.050 CABLE PLUG |
1,938 |
|
- |
Tiger Eye™ FFMD | Bulk | Active | Socket to Plug | 24 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.315' (96.27mm, 3.79") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
FFSD-05-D-07.60-01-N.050 X .050 C.L. FEMALE IDC ASSE |
2,138 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Socket | 10 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 0.633' (193.04mm, 7.60") | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
|
FFSD-08-S-24.00-01-N-SR.050 X .050 C.L. FEMALE IDC ASSE |
3,877 |
|
Datasheet |
Tiger Eye™ FFSD | Bulk | Active | Socket to Cable | 16 | 2 | 0.050" (1.27mm) | 0.025" (0.64mm) | 2.00' (609.60mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

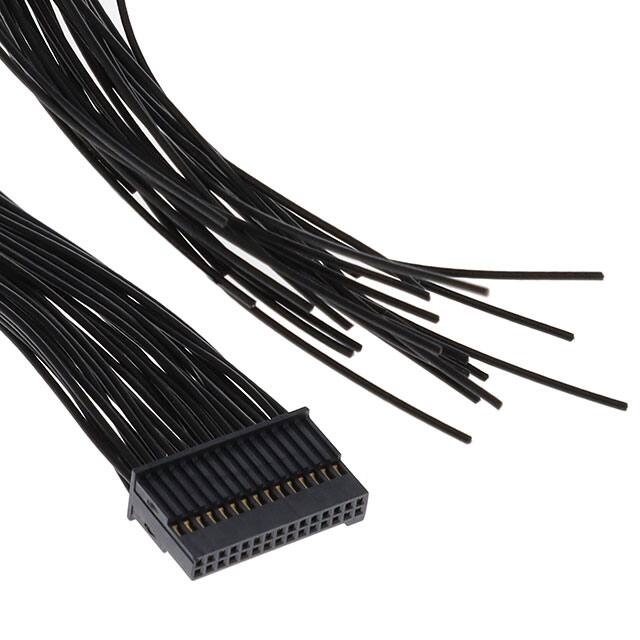

SFSD-15-28-H-48.00-S.050 SOCKET DISCRETE CABLE ASSEM |
3,972 |
|
Datasheet |
Tiger Eye™ SFSD | Bulk | Active | Socket to Individual Wire Leads | 30 | 2 | 0.050" (1.27mm) | - | 4.00' (1.22m) | Polarizing Key | Black, Individual | Unshielded | - | Crimp | Gold | 30.0µin (0.76µm) |
|
|
IDSD-13-D-11.50INSULATION DISPLACEMENT TERMINAL |
3,229 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.958' (292.10mm, 11.50") | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | - |
|
|
IDSD-18-D-12.00-T-GINSULATION DISPLACEMENT TERMINAL |
3,229 |
|
- |
IDSD | Bulk | Active | Socket to Socket | 36 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.00' (304.80mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
|
IDSS-14-D-24.00-GINSULATION DISPLACEMENT SOCKET C |
1,458 |
|
- |
IDSS | Bulk | Active | Socket to Socket | 14 | 1 | 0.100" (2.54mm) | 0.100" (2.54mm) | - | - | Gray, Ribbon | Unshielded | - | IDC | Gold | - |
