Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
255101-05-06.00COAX CBL MCX TO MCX |
3,529 |
|
Datasheet |
- | Box | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | Copper | Shielded | - | - | - |
|

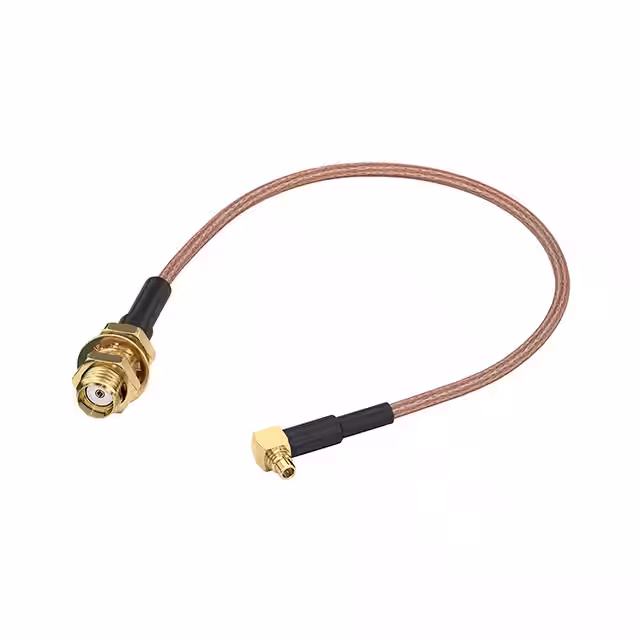

65501910415301COAX CBL SMA TO MMCX |
3,897 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
415-0008-024COAX CBL SMB MINI-SMB MINI |
4,248 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug | Female | Free Hanging (In-Line) | - | SMB Mini Plug | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | 2 GHz | White | Shielded | - | - | - |
|
095-850-266-048COAX CBL BNC TO BNC |
1,870 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
415-0030-048COAX CBL SMA TO SMA |
1,408 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
|
65501910515301COAX CBL SMA TO MMCX |
4,276 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
RF316-04SP3-07RP1-0915COAX CBL BNC TO SMB |
4,420 |
|
Datasheet |
RF316 | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.024" (915.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
095-850-264-200COAX CBL U.FL AMC TO TNC |
2,473 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
145101-05-12.00COAX CBL SMB MINI-SMB MINI |
3,526 |
|
Datasheet |
- | Bulk | Active | SMB Mini to SMB Mini | SMB Mini Plug | Female | Free Hanging (In-Line) | - | SMB Mini Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Copper | Shielded | - | - | - |
|
ASMA500C058L13COAX CBL RP-SMA TO SMA |
4,513 |
|
Datasheet |
- | Bulk | Active | RP-SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | LLC200A | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|

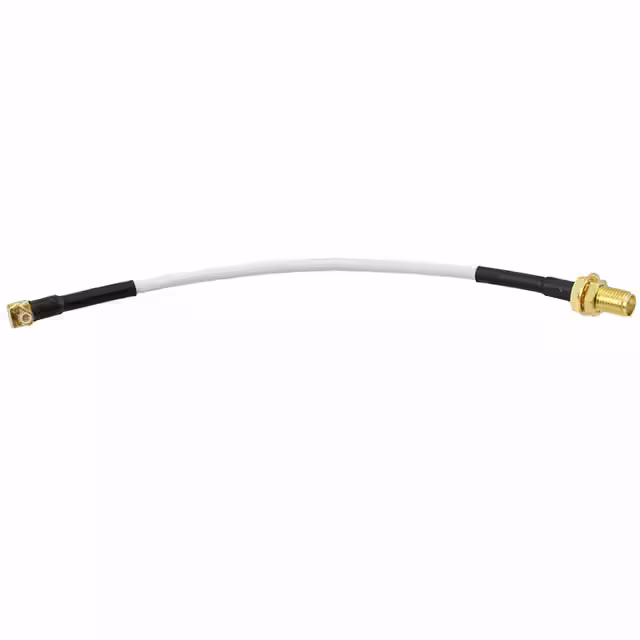

415-0181-006COAX CBL SMA TO MCX |
4,420 |
|
Datasheet |
- | Bulk | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
336212-12-0200COAX CBL U.FL AMC TO RP-TNC |
2,283 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-207-048COAX CBL BNC TO MMCX |
2,662 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | - | - | - |
|
135104-01-48.00COAX CBL SMA TO SMA |
2,361 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
135111-01-36.00COAX CBL SMA TO SMA |
2,623 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
0732309360COAX CBL SMA TO SMA |
1,036 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 2.756" (70.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Silver | - | - | - | - |
|
|
255101-01-48.00COAX CBL MCX TO MCX |
2,009 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
255101-05-12.00COAX CBL MCX TO MCX |
2,274 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | Copper | Shielded | - | - | - |
|
415-0014-018COAX CBL MCX TO MCX |
4,444 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
|
RF174-01RP1-06BJ2-0305COAX CBL N-TYPE TO SMA |
2,594 |
|
Datasheet |
RF174 | Bag | Active | N-Type to SMA | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
