Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
255103-01-12.00COAX CBL MCX TO MCX |
4,750 |
|
Datasheet |
- | Box | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|

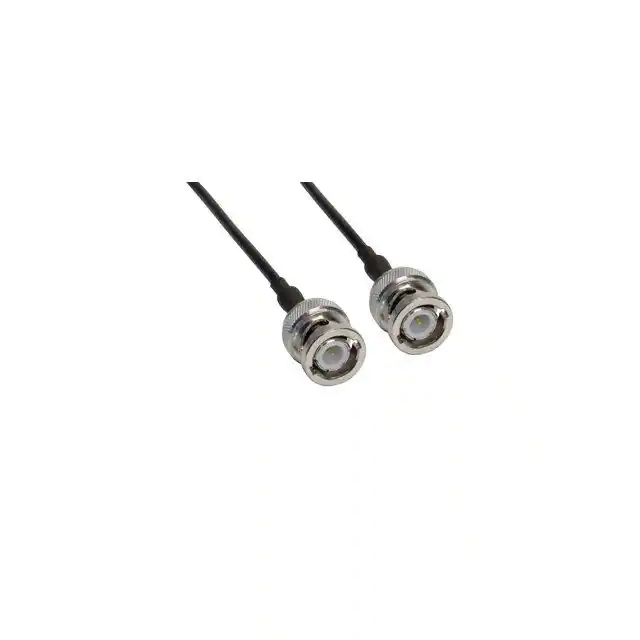

CO-174BNCX200-035COAX CBL BNC TO BNC |
4,590 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 420.0" (10.7m) 35.0' | RG-174 | 50 Ohms | - | - | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
245106-02-18.00COAX CBL SMA TO MMCX |
2,052 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-900-546-006COAX CBL MCX TO MCX |
1,639 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
145103-01-06.00COAX CBL SMB TO SMB |
2,420 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-900-546-012COAX CBL MCX TO MCX |
1,522 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-850-267-006COAX CBL BNC TO BNC |
4,401 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|

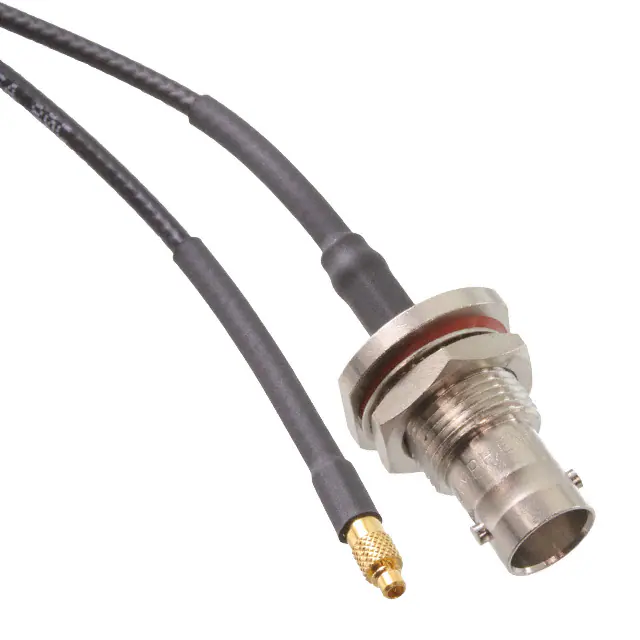

095-850-206-048COAX CBL BNC TO MMCX |
3,235 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
095-850-276-024COAX CBL TNC TO TNC |
2,456 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
245106-02-M0.50COAX CBL SMA TO MMCX |
4,132 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
CA-FJFJ-ZZ00410WPCOAX CBL FAKRA TO FAKRA |
3,021 |
|
Datasheet |
CA | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | - | - | Brown | - | - | - | - |
|
415-0059-048COAX CBL SMA TO N-TYPE |
2,879 |
|
Datasheet |
- | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | Shielded | - | - | - |
|
095-902-536-006COAX CBL RP-SMA TO RP-SMA |
2,870 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
|
CA-FJFJ-ZZ00110COAX CBL FAKRA TO FAKRA |
4,244 |
|
Datasheet |
CA | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 105°C | - | - |
|
|
095-900-546-024COAX CBL MCX TO MCX |
3,099 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
135104-04-12.00COAX CBL SMA TO SMA |
1,086 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Brown | Shielded | - | - | - |
|
135110-04-M0.50COAX CBL SMA TO SMA |
1,610 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-902-569-006COAX CBL SMA TO SMA |
2,414 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C | - | - |
|
095-902-529-012COAX CBL SMA TO MMCX |
4,367 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
095-902-545-200COAX CBL U.FL AMC TO SMA |
4,512 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Rear Side Nut | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
