Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

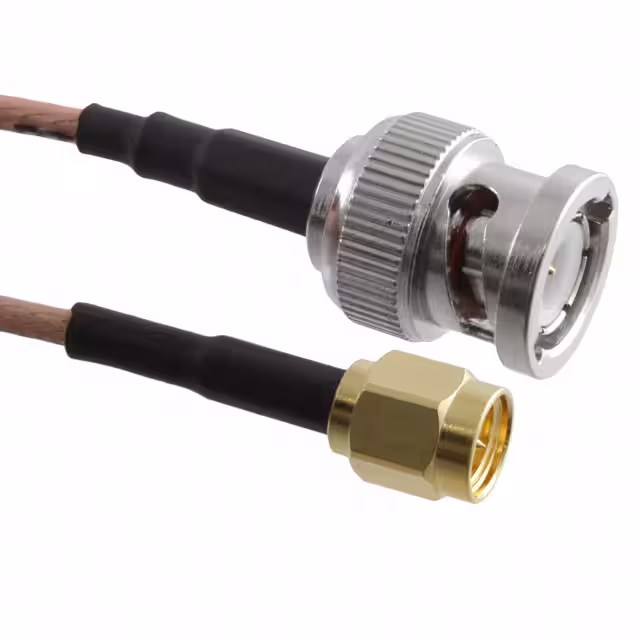

245101-01-06.00COAX CBL BNC TO SMA |
4,274 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
415-0201-MM500COAX CBL RP-SMA TO RP-SMA |
4,274 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
RF316-01RP1-03SP1-0305COAX CBL MMCX TO SMA |
4,087 |
|
Datasheet |
RF316 | Bag | Active | MMCX to SMA | MMCX Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
415-0056-060COAX CBL BNC TO BNC |
2,733 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | Belden 8218 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
141-20SM+COAX CBL SMA TO SMA |
1,872 |
|
Datasheet |
141 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 20.00" (508.00mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
RF316-01RP1-02RP1-0152COAX CBL MCX TO SMA |
1,010 |
|
Datasheet |
RF316 | Bag | Active | MCX to SMA | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
|
086-18SM+COAX CBL SMA TO SMA |
3,272 |
|
Datasheet |
086 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Hand Formable .086 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
CC174-7.5COAX CBL BNC TO BNC |
3,448 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 90.0" (2.3m) 7.5' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
095-900-550-018COAX CBL MMCX TO MMCX |
2,716 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
2081384-4COAX CBL FAKRA TO FAKRA |
3,029 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RTK 031 | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
415-0037-024COAX CBL BNC TO SMA |
2,359 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
RF174-05BJ3-03RP1-0305COAX CBL MMCX TO TNC |
4,335 |
|
Datasheet |
RF174 | Bag | Active | MMCX to TNC | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
245101-04-24.00COAX CBL BNC TO SMA |
1,592 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
245106-01-06.00COAX CBL SMA TO MMCX |
1,734 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
115101-20-72.00COAX CBL BNC TO BNC |
4,168 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - | - | - |
|
245103-05-12.00COAX CBL BNC TO SMB |
3,494 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-179 | 75 Ohms | - | 75 Ohms | - | Copper | Shielded | - | - | - |
|
|
FL086-6SM+COAX CBL SMA TO SMA |
1,512 |
|
Datasheet |
FL086 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .086 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
135101-04-24.00COAX CBL SMA TO SMA |
4,897 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
135113-02-12.00COAX CBL SMA TO SMA |
3,871 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
72926-C-40COAX CBL BNC TO BNC |
2,628 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 40.0" (1.0m) 3.3' | RG-58C | - | - | 50 Ohms | - | Black | Shielded | - | - | - |
